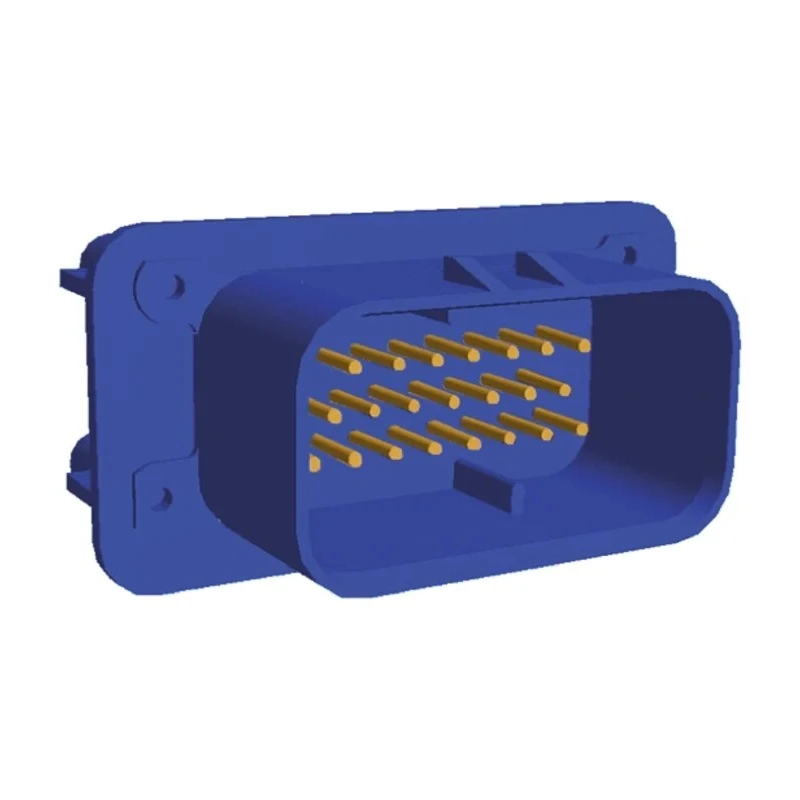

TE Connectivity Ampseal Automotive Connector Male Blue Panel Mount 23 Way Solder Termination 1-776200-5
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 1.3mm |
| Brand | TE Connectivity |
| Colour | Blue |
| Height | 32.1mm |
| Depth | 34.3mm |
| IP Rating | IP6K9K |
| Width | 60.8mm |
| Gender | Male |
| Mount Type | Panel Mount |
| Housing Material | Fibreglass Reinforced Polybutylene Terephthalate |
| Contact Material | Brass |
| Series | Ampseal |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | PCB Connector |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 3 |
| Contact Plating | Gold |
| Number of Contacts | 23 |
Key Features
- This automotive connector features 23 contacts arranged in 3 rows for efficient PCB mounting.
- It has a blue housing made from fibreglass reinforced polybutylene terephthalate for durability and resistance.
- The male connector utilizes gold-plated brass contacts to provide excellent conductivity and corrosion resistance.
- Designed as per the Ampseal series, it supports panel mount installation with solder termination.
- The connector withstands a wide operating temperature range from -40°C to 125°C, suitable for harsh conditions.
- It offers an IP6K9K rating providing high protection against water and dust ingress.
- Compact dimensions of 60.8mm width, 32.1mm height, and 34.3mm depth enable flexible integration in automotive assemblies.
- The contact diameter is 1.3mm, optimized for secure and reliable connections.
Product Description
TE Connectivity 1-776200-5 Ampseal Automotive Connector Male Blue Panel Mount 23 Way Solder Termination is a premium-quality electrical connector engineered specifically for automotive applications requiring robust and precise connections.
This connector belongs to the Ampseal series, recognized for its rugged design and reliable performance in harsh environments. Featuring 23 brass contacts with gold plating arranged in 3 rows, it ensures superior electrical conductivity and corrosion resistance necessary for automotive electronics.
The blue housing is made from fibreglass reinforced polybutylene terephthalate, providing mechanical strength and thermal stability from -40°C to 125°C. This panel mount connector supports solder termination, facilitating secure PCB mounting during assembly.
With an IP6K9K rating, this connector provides excellent sealing against high-pressure water jets and dust, making it ideal for demanding automotive and industrial conditions where ingress protection is critical.
The compact size with 60.8mm width, 32.1mm height, and 34.3mm depth allows flexible integration into electrical systems. The contact diameter of 1.3mm is designed to maximize connection reliability.
23 contacts organized in 3 rows for effective PCB connection. Robust fibreglass reinforced polybutylene terephthalate housing. Gold-plated brass contacts for optimal electrical performance. Panel mount design with solder termination capability.
Operating temperature range from -40°C to 125°C. High ingress protection with IP6K9K rating. Compact dimensions provide versatile mounting options.
This connector is suitable for automotive electrical, industrial automation, and manufacturing applications requiring durable, reliable connections that withstand extreme environmental conditions.
Explore more products by TE Connectivity to find complementary Automotive Connectors and accessories on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector operates within a temperature range of -40°C to 125°C, making it suitable for harsh environmental conditions.
It features 23 contacts arranged in 3 rows, designed for efficient PCB mounting.
The connector has an IP6K9K rating, providing high protection against water and dust ingress.
The housing is made from fibreglass reinforced polybutylene terephthalate, and the contacts are made of brass with gold plating for enhanced conductivity and corrosion resistance.
This model utilizes solder termination, facilitating secure connections during assembly.
The dimensions are 60.8mm in width, 32.1mm in height, and 34.3mm in depth, allowing for flexible integration into automotive assemblies.
Yes, it is specifically engineered for automotive applications requiring robust and precise connections.
The contact diameter is 1.3mm, optimized for secure and reliable connections.
It supports panel mount installation, making it versatile for various applications.
This connector belongs to the Ampseal series, known for its rugged design and reliable performance in challenging environments.
The country of origin for this connector is India.
The housing of this connector is blue, providing easy identification in automotive assemblies.
