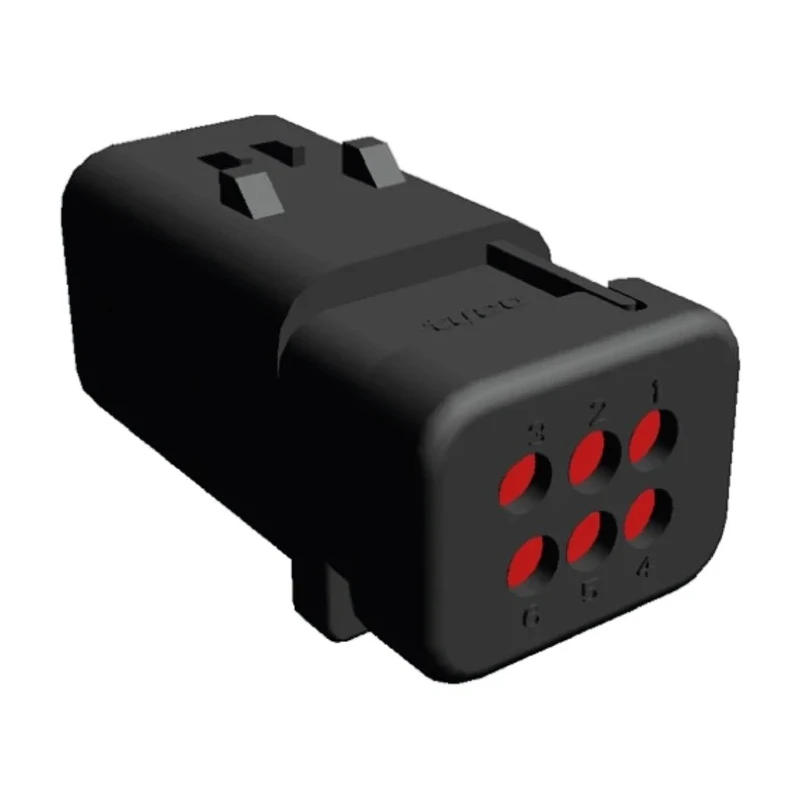

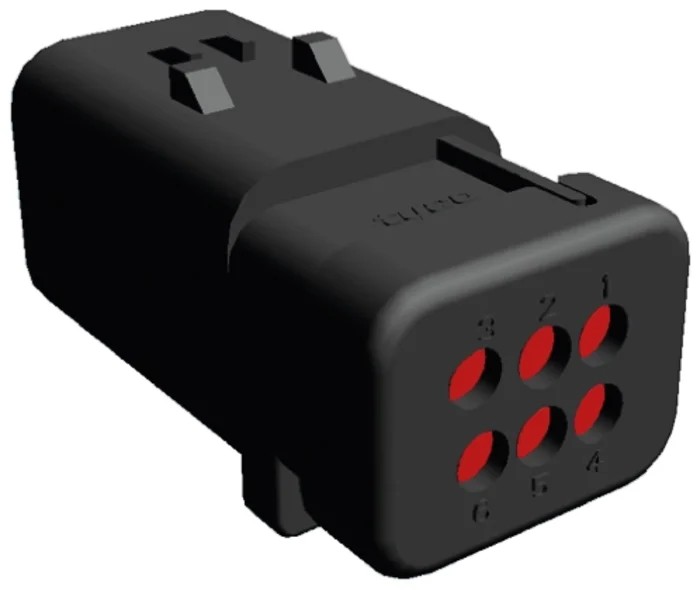

TE Connectivity AMPSEAL 16 Automotive Connector Male Red Clip 6 Way Crimp Termination 776434-1

TE Connectivity 776434-1 AMPSEAL 16 Automotive Connector Male Red Clip 6 Way Crimp Termination is engineered for robust automotive electrical connection applications where reliability and environmental protection are critical. The connector features a fibreglass reinforced polybutylene terephthalate housing which offers excellent mechanical stability and chemical resistance suitable for automotive environments.

This connector supports a current rating of 13A across 6 contacts arranged in 2 rows, making it ideal for automotive wiring harnesses requiring durable and sealed connectors. The termination method is crimp, ensuring low resistance and firm electrical connections with compatible wire sizes ranging from 2.18 mm to 3.67 mm.

The housing includes a clip mounting type for secure attachment within automotive assemblies. Its IP67 ingress protection rating safeguards against dust and water, ensuring reliable operation in harsh environmental conditions. The operating temperature range from -40°C to 125°C covers most automotive use cases including extreme cold and high heat scenarios.

The AMPSEAL 16 series connectors incorporate color coding and physical keying features to prevent mismating, with this model using a red clip for clear identification. Typical applications include industrial, automotive manufacturing, HVAC systems, and heavy machinery where dependable electrical connectors are essential.

Dimensions of the connector are 26.65 mm in height, 24.6 mm in width, and 47.55 mm in depth, designed to fit standard automotive harnesses. The package does not include a cord; it is supplied as a standalone connector suitable for direct wire termination.

Durable fibreglass reinforced polybutylene terephthalate housing ensures long-lasting use. Rated for a current of 13A with 6 contacts arranged in 2 rows. Sealed design with IP67 rating protects against dust and water ingress.

Operates reliably across a wide temperature range from -40°C to 125°C. Clip mount type allows secure and easy installation in vehicles. Red color coding prevents mismating in assemblies. Termination type is crimp for secure wire connections.

Standard diameter wire seal accommodates wire sizes from 2.18 to 3.67 mm. Dimensions: Height 26.65mm, Width 24.6mm, Depth 47.55mm.

This TE Connectivity AMPSEAL 16 Connector system is widely used in automotive electrical systems, industrial machinery, and HVAC industry applications where reliable, sealed electrical connections are mandatory to withstand environmental challenges. Discover more high-quality Automotive Connectors and related components within the EnvMart Connectors category.
