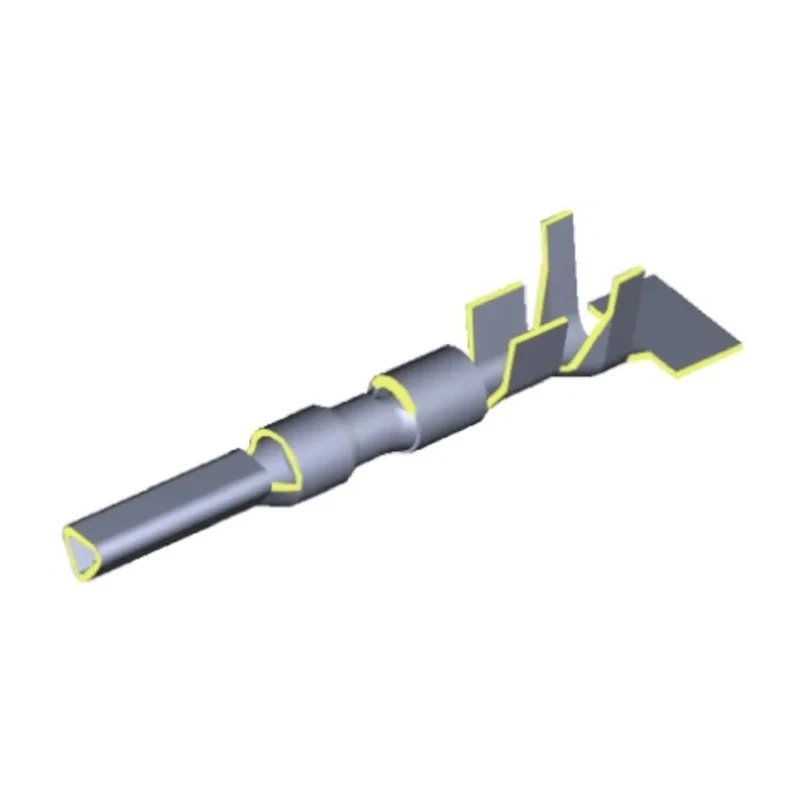

TE Connectivity Mini-Universal MATE-N-LOK II Series Female Crimp Terminal 3A Current 20 AWG Min Crimp 16 AWG Max 794223-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Current | 3A |
| Length | 19.94mm |
| Model | 794223-1 |
| Gender | Female |
| Contact Material | Brass |
| Series | Mini-Universal MATE-N-LOK II |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -30°C |
| For Use With | Mini-Universal MATE-N-LOK II Connector Housing |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.5mm² |
| Maximum Wire Size mm² | 1.4mm² |
| Minimum Wire Size AWG | 20AWG |
| Maximum Wire Size AWG | 16AWG |
| Maximum Contact Resistance | 20mΩ |
Key Features
- Designed for Mini-Universal MATE-N-LOK II connector housings ensuring secure fitment.
- Constructed from brass with tin plating for corrosion resistance.
- Suitable for crimp termination ensuring reliable electrical connectivity.
- Supports wire sizes from 0.5mm² (20 AWG) up to 1.4mm² (16 AWG).
- Operates effectively within a temperature range of -30°C to 105°C.
- Compact length of 19.94mm facilitates use in tight electrical assemblies.
- Maximum contact resistance of 20 mΩ helps maintain signal integrity.
- Female contact gender designed to interface with male terminals.
Product Description
TE Connectivity 794223-1 Mini-Universal MATE-N-LOK II Series Female Crimp Terminal is engineered to provide secure and reliable electrical connections across a range of industrial and electronic applications. It features a durable brass contact material with tin plating to ensure corrosion resistance and longevity in challenging environments.
Compatible with Mini-Universal MATE-N-LOK II connector housings, this crimp terminal supports wire cross sectional areas from 0.5mm² to 1.4mm² (20 AWG to 16 AWG), making it versatile for various wiring requirements. Operating temperature from -30°C to 105°C allows use in a broad range of conditions, including industrial automation, control panels, and electrical manufacturing.
This female crimp terminal carries a maximum current rating of 3 amps, suitable for low to moderate power applications. The compact 19.94mm length facilitates assemblies where space is limited without compromising connection integrity. The maximum contact resistance is maintained within 20 milliohms to help ensure stable electrical performance.
The crimp termination type offers ease of installation and reliable wire retention, critical in manufacturing and maintenance scenarios. This product is widely applicable in electronics, industrial controls, and wiring harnesses.
Designed for Mini-Universal MATE-N-LOK II connector housings ensuring secure fitment. Brass contact with tin plating for enhanced durability and corrosion resistance. Supports wire sizes 0.5mm² (20 AWG) up to 1.4mm² (16 AWG) for flexible wiring options.
Operates reliably within a temperature range of -30°C to 105°C. Compact 19.94mm length ideal for space-constrained applications. Maximum contact resistance of 20 milliohms supports signal integrity. Crimp termination type ensures secure and reliable wire connections.
This crimp terminal is ideal for use in electronic components manufacturing, PCB connectors, wire housings, and various industrial applications requiring dependable connections. Its design meets the needs of construction, manufacturing, aerospace, automotive, and commercial electrical installations.
Browse the extensive range of TE Connectivity connectors and Crimp Terminals on EnvMart for your precise connector and wiring needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This crimp terminal has a maximum current rating of 3 amps, making it suitable for low to moderate power applications.
It supports wire sizes from 0.5mm² (20 AWG) up to 1.4mm² (16 AWG), offering flexibility for various wiring needs.
The compact length of this model is 19.94mm, which is ideal for use in tight electrical assemblies.
The terminal is constructed from brass with tin plating, which provides corrosion resistance and durability.
It operates effectively within a temperature range of -30°C to 105°C, suitable for various environmental conditions.
The maximum contact resistance is 20 milliohms, which helps maintain signal integrity during operation.
This female crimp terminal is designed for use with Mini-Universal MATE-N-LOK II connector housings, ensuring a secure fit.
It features a crimp termination type, which ensures secure and reliable wire connections.
This terminal is widely applicable in electronics, industrial controls, and wiring harnesses, among other applications.
This model has a female contact gender, designed to interface with male terminals.
The country of origin for this crimp terminal is India.
It belongs to the Mini-Universal MATE-N-LOK II series, designed for reliable electrical connectivity.
