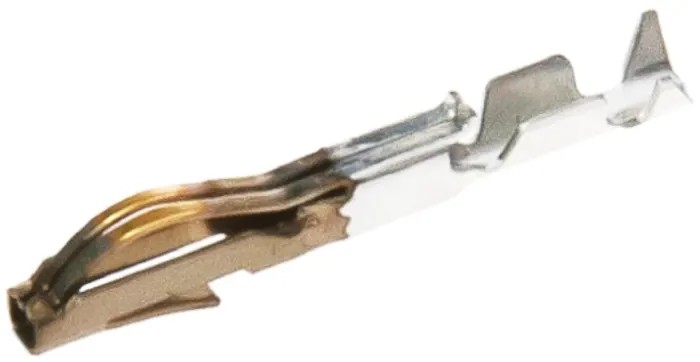

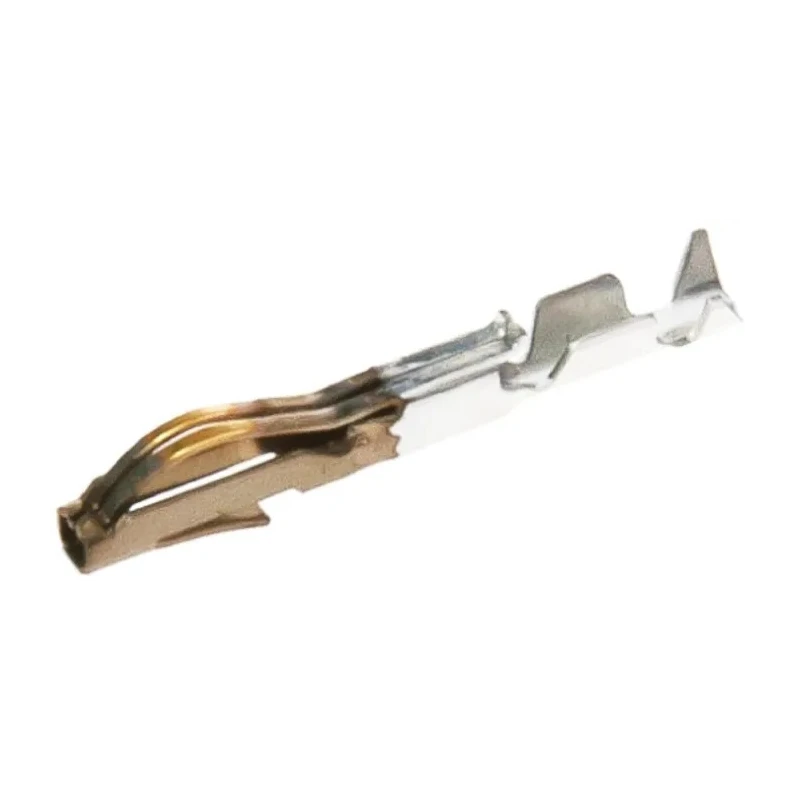

TE Connectivity Twin Leaf Series Female Crimp Terminal 5A Current Gold Plating 24-20 AWG 17.27mm Length 5-583853-3
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Current | 5A |
| Length | 17.27mm |
| Gender | Female |
| Contact Material | Phosphor Bronze |
| Series | Twin Leaf |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| For Use With | 2.54 mm Crimp Snap Twin Leaf Connector Housing |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 0.6mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 20AWG |
| Maximum Contact Resistance | 10mΩ |
Key Features
- Constructed with phosphor bronze contact material for reliable conductivity.
- Contact plated with gold to ensure superior corrosion resistance.
- Compatible with 2.54 mm crimp snap twin leaf connector housing.
- Designed for operating temperature range from -55°C to 105°C.
- Crimp termination type for secure wire attachment.
- Maximum contact resistance rated at 10 milliohms.
- Compact terminal length of 17.27 mm suitable for PCB connector applications.
Product Description
TE Connectivity 5-583853-3 Twin Leaf Series Female Crimp Terminal is engineered for precise and reliable electrical connections in electronic components and connectors. This terminal supports wire sizes ranging from 24 AWG minimum to 20 AWG maximum and can carry a current of up to 5A, making it suitable for various low-power PCB and wire harness applications.
Manufactured from high-quality phosphor bronze with gold plating on the contact surface, this crimp terminal delivers excellent conductivity and enhanced corrosion resistance, essential for long-term durability in challenging environments. The terminal is designed for use with 2.54 mm crimp snap twin leaf connector housings, enabling quick and stable mating with corresponding connectors in electronic assemblies.
With a length of 17.27 mm, the terminal fits compact spaces commonly found in electronic devices and industrial automation systems. Its crimp termination type provides secure and consistent wire attachment, facilitating efficient manufacturing and maintenance processes.
The terminal is rated for operation across a broad temperature range from -55°C up to 105°C, allowing reliable performance even in demanding industrial, HVAC, manufacturing, and laboratory electrical systems. The maximum contact resistance is limited to 10 milliohms ensuring minimal loss and interference in sensitive signal and power transmission.
TE Connectivity's Twin Leaf Series represents premium quality in crimp contacts, widely utilized for applications requiring dependable electrical connections in commercial and industrial electronics.
Constructed with phosphor bronze for strong mechanical and electrical properties. Gold-plated contacts for superior corrosion protection and conductivity. Supports wire sizes 24 AWG to 20 AWG for flexible wiring options.
Designed for use with 2.54 mm crimp snap twin leaf connector housings. Operating temperature range from -55°C to 105°C for robust environment resistance. Crimp termination style for accurate and quick installation. Compact length of 17.27 mm suitable for tight assembly spaces.
Ideal for industrial automation, power distribution, electronic device manufacturing, and HVAC control systems, this TE Connectivity Crimp Terminal enables efficient and reliable connections. Explore the broad range of TE Connectivity connectors and components on EnvMart for your technical and production needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This crimp terminal is rated for a maximum current of 5A.
It supports wire sizes ranging from 24 AWG minimum to 20 AWG maximum.
The contact material is phosphor bronze, which provides reliable conductivity.
This terminal uses a crimp termination type for secure wire attachment.
The terminal has a compact length of 17.27 mm, suitable for tight assembly spaces.
It is designed for an operating temperature range from -55°C to 105°C.
The maximum contact resistance is rated at 10 milliohms, ensuring minimal loss in signal transmission.
It is compatible with 2.54 mm crimp snap twin leaf connector housings.
The country of origin for this crimp terminal is India.
This terminal is suitable for low-power PCB and wire harness applications in industrial automation, power distribution, and HVAC control systems.
Gold plating on the contacts ensures superior corrosion resistance, enhancing the terminal's longevity in challenging environments.
The crimp termination style allows for accurate and quick installation, facilitating efficient manufacturing and maintenance processes.
