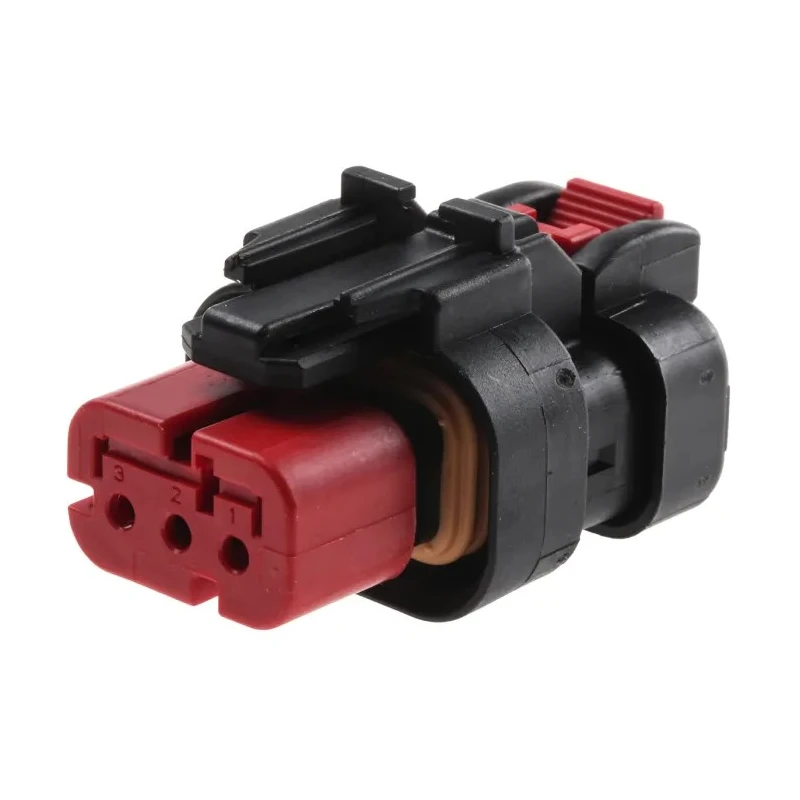

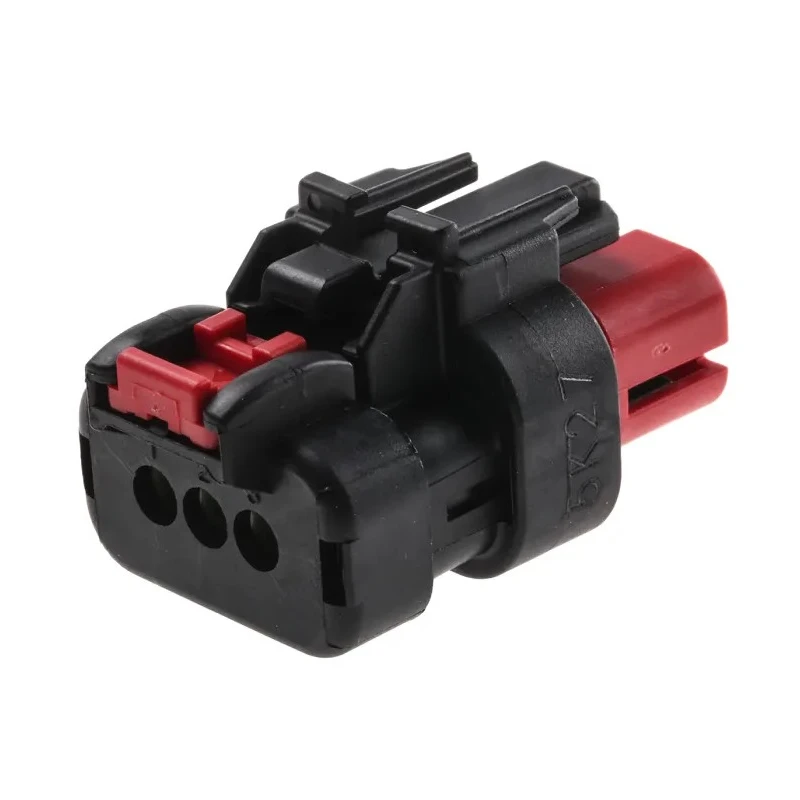

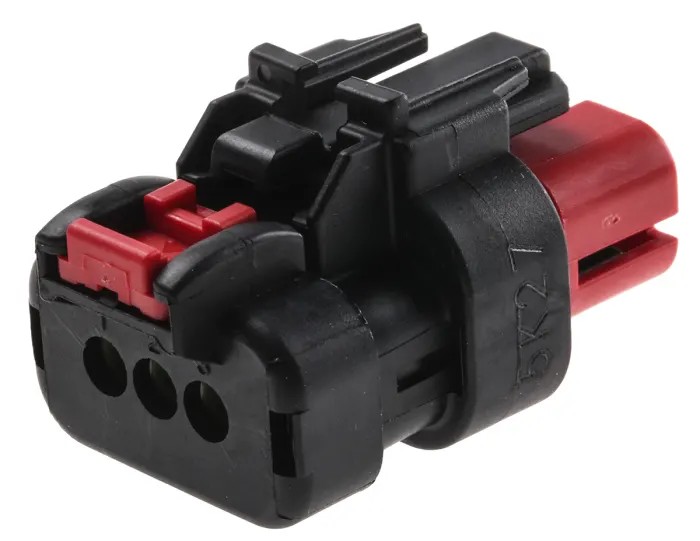

TE Connectivity AMPSEAL 16 Automotive Connector Male Red Cable 3 Way Crimp Termination 776429-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Red |
| Current | 13A |
| Height | 23.5mm |
| Model | 776429-1 |
| Depth | 36.8mm |
| IP Rating | IP67 |
| Width | 24.83mm |
| Gender | Male |
| Mount Type | Cable |
| Housing Material | Thermoplastic |
| Series | AMPSEAL 16 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Sub Type | Automotive Connector Housing |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Standards/Approvals | REACH, UL 94HB, RoHS, ELV |
| Number of Contacts | 3 |
| • Operating Temperature range | -40°C to +125°C |
| • Cable exit angle | 180° |
Key Features
- Compatible with AMPSEAL 16 series standard diameter wire seals.
- Rated current up to 13 amps with 3 contact positions.
- Thermoplastic housing material provides durability and resistance.
- Operating temperature range from -40°C to +125°C for harsh conditions.
- IP67 rated for environmental sealing and protection against dust and moisture.
- Features secure crimp termination and male contact gender.
- Physical keying and color coding prevent mis-mating of connectors.
- Cable exit angle of 180° facilitates wiring in tight spaces.
Product Description
TE Connectivity 776429-1 AMPSEAL 16 Automotive Connector Male Red Cable 3 Way Crimp Termination is designed for off-road, heavy duty industrial, recreational, and agricultural applications requiring robust, environmentally sealed electrical connections.
This automotive connector series features a thermoplastic housing with standard diameter wire seals to ensure excellent sealing and durability under harsh conditions. Rated for currents up to 13 amps, it offers reliable crimp termination with a 3-contact male configuration and a cable mount type with a 180-degree cable exit angle to optimize wiring layout.
The AMPSEAL 16 series supports environmental protection with an IP67 rating, operating temperature range from -40°C to +125°C, and compliance with REACH, UL 94HB, RoHS, and ELV standards. Its integrated primary latch reinforcement and connector position assurance (CPA) provide secure locking during operation, while color coding and physical keying prevent incorrect mating.
This connector's compact footprint with dimensions of 23.5mm (height), 24.83mm (width), and 36.8mm (depth) makes it suitable for tight installations in automotive and industrial wiring harnesses.
Compatible with AMPSEAL 16 series standard diameter wire seals. Rated current up to 13 amps with 3 contact positions. Thermoplastic housing material provides durability and resistance. Operating temperature range from -40°C to +125°C for harsh conditions.
IP67 rated for environmental sealing and protection against dust and moisture. Features secure crimp termination and male contact gender. Physical keying and color coding prevent mis-mating of connectors. Compact dimensions: 23.5mm height, 24.83mm width, 36.8mm depth.
Cable exit angle of 180° facilitates wiring in tight spaces. Approved to REACH, UL 94HB, RoHS, and ELV standards.
This TE Connectivity AMPSEAL 16 automotive connector is widely used in automotive, agricultural machinery, heavy equipment, and off-road vehicles for robust and reliable electrical connectivity in harsh environments.
Explore more from TE Connectivity and Automotive Connectors on EnvMart for high-quality industrial and automotive electrical components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a maximum current of 13 amps.
It operates within a temperature range of -40°C to +125°C, making it suitable for harsh conditions.
This connector has an IP67 rating, providing protection against dust and moisture.
The dimensions are 23.5mm in height, 24.83mm in width, and 36.8mm in depth.
It features a crimp termination type, ensuring a secure connection.
This model has three contact positions.
The housing is made of thermoplastic, which provides durability and resistance.
Yes, it is designed for automotive, agricultural machinery, heavy equipment, and off-road vehicles.
It includes physical keying and color coding to prevent incorrect mating.
The country of origin for this connector is India.
It complies with REACH, UL 94HB, RoHS, and ELV standards.
The cable exit angle is 180°, which helps facilitate wiring in tight spaces.
