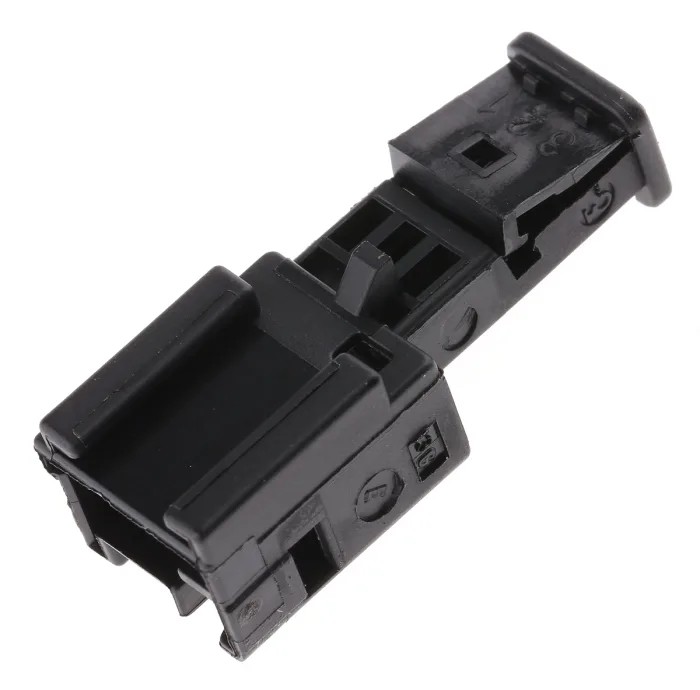

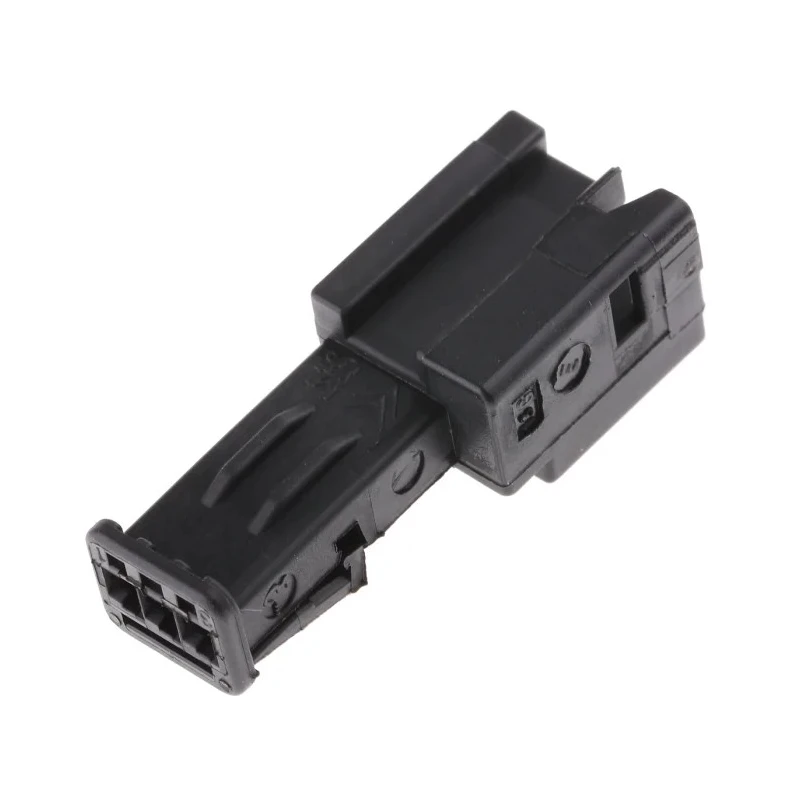

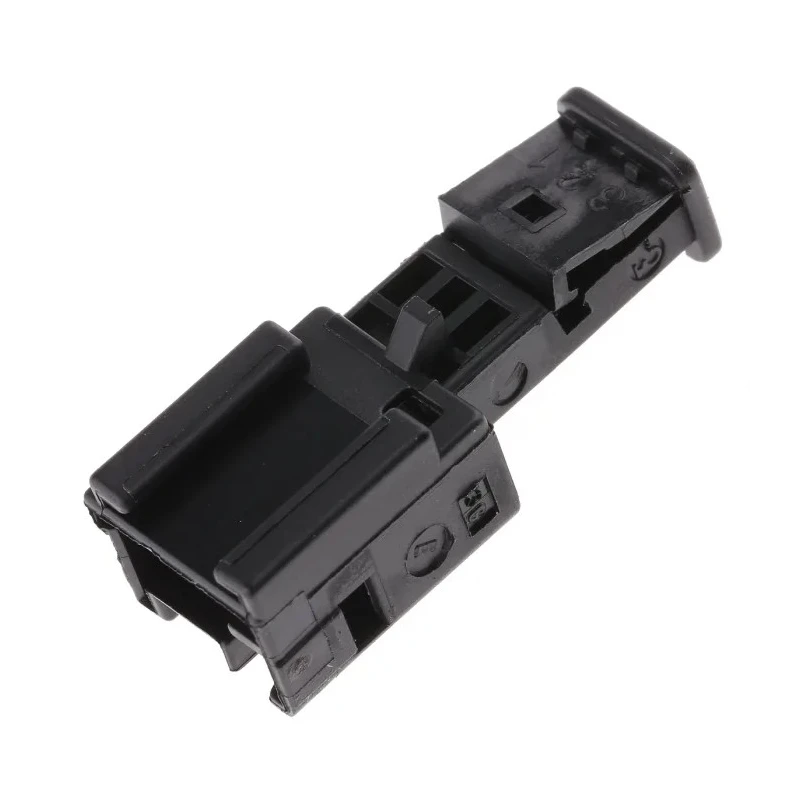

TE Connectivity Micro Quadlok System Automotive Connector Male Black Cable 3 Way Crimp Termination 953698-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Black |
| Height | 10.4mm |
| Model | 953698-1 |
| Depth | 33.7mm |
| Width | 13.9mm |
| Gender | Male |
| Mount Type | Cable |
| Housing Material | Fibreglass Reinforced Polybutylene Terephthalate |
| Series | Micro Quadlok System |
| Termination Type | Crimp |
| Maximum Operating Temperature | 85°C |
| Sub Type | Automotive Connector |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Standards/Approvals | ELV, REACH, RoHS, UL 94HB |
| Number of Contacts | 3 |
| • Pitch | 2.54mm |
Key Features
- The connector features a 3-way male crimp termination design for secure cable connection.
- Constructed with fibreglass reinforced polybutylene terephthalate housing for durability and electrical insulation.
- Operates reliably in temperatures ranging from -40°C to 85°C.
- Complies with ELV, REACH, RoHS, and UL 94HB standards ensuring environmental and safety compliance.
- Includes polarization and keying features to prevent mismating connections in automotive systems.
- Integral stainless steel locking lances provide a high primary terminal locking force securing contacts firmly.
- Designed for automotive applications including powertrain, safety, security, driver information, body, and chassis systems.
Product Description
TE Connectivity 953698-1 Micro Quadlok System Automotive Connector Male 3 Way Crimp Termination provides a compact, high-density connector solution tailored for demanding automotive applications.
This connector housing is made of durable fibreglass reinforced polybutylene terephthalate, offering excellent electrical insulation and mechanical strength. It is designed to securely house MQS contacts, with stainless steel locking lances ensuring robust terminal retention.
The connector supports a 3-contact configuration with a single-row layout and is intended for cable mount use without an included cord. It operates reliably in a temperature range from -40°C to 85°C, suitable for harsh automotive environments.
Key features include polarization and keying to prevent mismating and available sealed versions for waterproof performance, enhancing durability and safety in vehicle systems. This product complies with ELV, REACH, RoHS, and meets UL 94HB fire safety standards, underpinning its suitability for industrial and automotive sectors.
Applications span powertrain modules, safety and security systems, convenience functions, driver information interfaces, and body and chassis electrical architectures, making it an essential component for modern vehicle electrical systems.
The connector features a 3-way male crimp termination design for secure cable connection. Constructed with fibreglass reinforced polybutylene terephthalate housing for durability and electrical insulation. Operates reliably in temperatures ranging from -40°C to 85°C.
Compact dimensions: height 10.4mm, width 13.9mm, depth 33.7mm, with a 2.54mm pitch spacing. Complies with ELV, REACH, RoHS, and UL 94HB standards ensuring environmental and safety compliance. Includes polarization and keying features to prevent mismating connections in automotive systems.
Integral stainless steel locking lances provide a high primary terminal locking force securing contacts firmly. Designed for automotive applications including powertrain, safety, security, driver information, body, and chassis systems.
Discover advanced Automotive Connectors by TE Connectivity and explore more in our Electronics & Electricals Connectors category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this connector is 85°C.
The minimum operating temperature for this model is -40°C.
This automotive connector features 3 contacts in a single-row layout.
The housing of this connector is made from fibreglass reinforced polybutylene terephthalate, providing electrical insulation and mechanical strength.
The dimensions of the connector are height 10.4mm, width 13.9mm, and depth 33.7mm, with a pitch spacing of 2.54mm.
Yes, it includes polarization and keying features to prevent mismating connections in automotive systems.
This connector complies with ELV, REACH, RoHS, and UL 94HB standards, ensuring environmental and safety compliance.
This connector uses a crimp termination design for secure cable connection.
Yes, it is designed for various automotive applications, including powertrain, safety, and body systems.
This connector is a male type.
It features integral stainless steel locking lances that provide a high primary terminal locking force to secure contacts firmly.
The model number of this connector is 953698-1.
