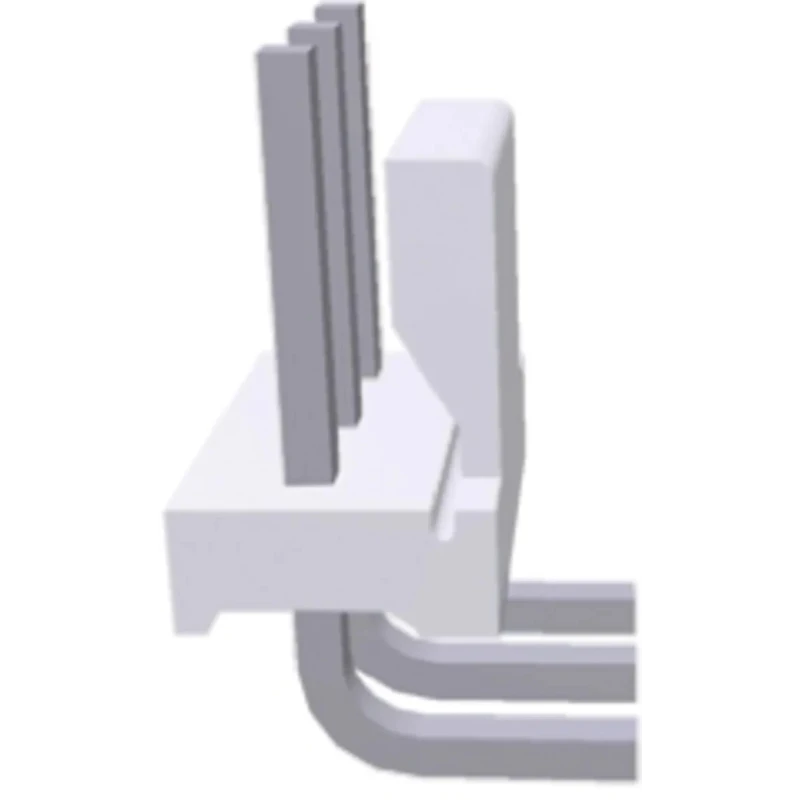

TE Connectivity MTA-156 Series Right Angle Through Hole Pin Header, 3 Contacts, 3.96 mm Pitch, 1 Row, Unshrouded 640387-3
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 600V |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 7A |
| Model | 640387-3 |
| Mount Type | Through Hole |
| Housing Material | Glass Filled Polyester |
| Contact Material | Copper Alloy |
| Series | MTA-156 |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 3.96mm |
| Contact Plating | Tin |
| Number of Contacts | 3 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.18mm |
| Mating Pin Length | 10.16mm |
Key Features
- Features a friction lock mechanism for secure mating.
- End-to-end stackable design enables flexible PCB layouts.
- Made with glass filled polyester housing for durability.
- Rated for 7A current and 600V voltage capacity.
- Suitable for use in automotive, computer, and consumer electronics industries.
- Operates in temperature range from -55°C to 105°C.
- The connector has tin-plated copper alloy contacts for reliable conductivity.
- Designed for solder termination and male contact gender.
Product Description
TE Connectivity 640387-3 MTA-156 Series Right Angle Through Hole Pin Header is a highly reliable unshrouded connector designed for mass termination of wires using insulation displacement contact (IDC) technology. With a 3.96 mm pitch and 3 contacts arranged in a single row, this pin header supports secure and durable wire-to-board connections.
The connector housing is made from robust glass filled polyester ensuring durability under harsh conditions. The contacts are composed of copper alloy with tin plating providing excellent electrical conductivity and corrosion resistance. The male tail pins measure 3.18 mm in length, facilitating solder termination on printed circuit boards. This component operates safely under a voltage rating of 600V and a current rating of 7A, while withstanding operating temperatures from -55°C up to 105°C.
Its right angle orientation and through-hole mount type provide stable and versatile PCB assembly. The pin header features a friction lock mechanism that ensures a secure mated connection, and the end-to-end stackable design offers flexibility in system configurations.
MTA-156 connectors are widely used across various industries including automotive for body and chassis systems, driver information, safety and security systems, as well as in computer and consumer electronics such as desktops, notebooks, servers, and storage units. The cost-saving mass termination capability makes it ideal for large scale wiring applications.
Incorporates friction lock for secure mating connection. Housing material is glass filled polyester. 3 contacts with 3.96 mm pitch, single row configuration. Tin-plated copper alloy contacts ensure durability. Right angle, through-hole mounting for stable assembly.
Rated for 7A current and 600V voltage operation. Wide operating temperature range of -55°C to 105°C. Unshrouded design for flexible wire termination. Set contains 1 Pc TE Connectivity MTA-156 Series Right Angle Through Hole Pin Header, model 640387-3.
Explore our range of connectors and PCB components at EnvMart for your electronic assembly needs.
Explore more products in our Electronics Components category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a voltage of 600V and a current of 7A.
The contacts have a pitch of 3.96 mm.
It operates within a temperature range of -55°C to 105°C.
The housing is made from glass filled polyester, and the contacts are composed of tin-plated copper alloy.
This pin header features 3 contacts arranged in a single row.
It is designed for solder termination.
This connector has a right angle orientation and is designed for through-hole mounting.
The male tail pins measure 3.18 mm in length.
It is suitable for use in automotive, computer, and consumer electronics industries.
Yes, it features a friction lock mechanism for secure mating connections.
This model is designed for wire-to-board connections.
This pin header is unshrouded, allowing for flexible wire termination.
