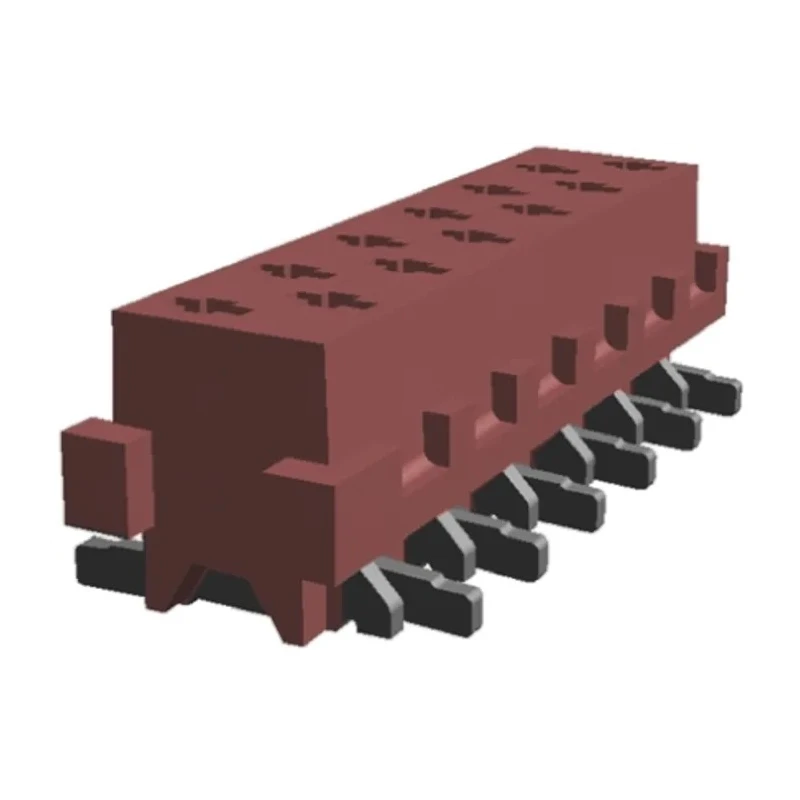

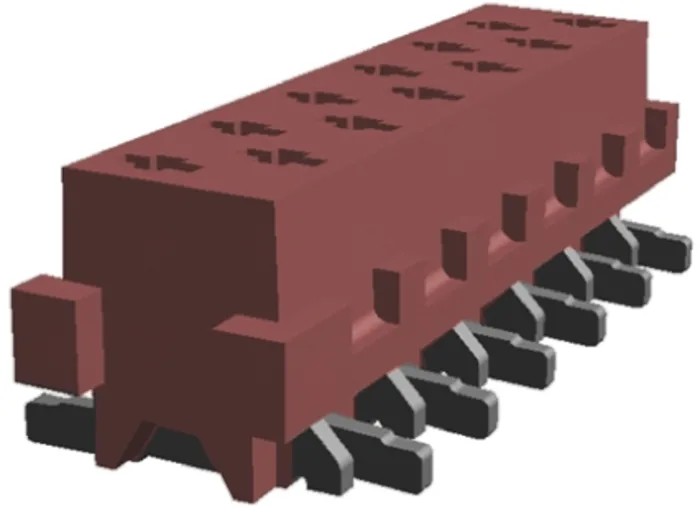

TE Connectivity Micro-MaTch Series Straight Surface PCB Socket 12-Contact 2 Row 2.54 mm Pitch 230V 1.5A 1-188275-2
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 230V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 1.5A |
| Mount Type | Surface |
| Housing Material | Polyamide |
| Contact Material | Bronze |
| Series | Micro-MaTch |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | Female-On-Board |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 12 |
| Contact Gender | Female |
| Connector System | Wire-to-Board |
| Row Pitch | 1.5mm |
Key Features
- Compact, space saving design suitable for high-density circuits.
- Fully tin-plated bronze contacts for reliable conductivity.
- Contact spring system prevents fretting corrosion and ensures gas tight connection.
- Polarized design prevents mismating during installation.
- Operates reliably between -40°C and 105°C temperature range.
- Surface mount termination with solder type mounting.
- Features a wire-to-board connector system with straight orientation.
- Offers 1.5 mm row pitch ensuring precise positioning of contacts.
Product Description
TE Connectivity 1-188275-2 Micro-MaTch Series Straight Surface PCB Socket is designed for reliable wire-to-board connection with 12 female contacts arranged in 2 rows. This PCB socket utilizes a 2.54 mm pitch and supports operating voltages up to 230V with current rating of 1.5A. It is constructed with a polyamide housing and bronze contacts plated with tin for optimal conductivity and corrosion resistance.
The Micro-MaTch connector family is well-known for its compact, space-saving design that suits high-density electronic applications. The contact spring system is engineered to prevent fretting corrosion by maintaining a gas tight connection through minimal contact movement, enhanced by an integrated positioning spring to absorb vibration and thermal expansion. This ensures long-term reliability in harsh industrial and electronic environments.
This surface mount PCB socket has a straight orientation and is polarized to prevent mismating during assembly, enhancing manufacturing quality. The product is capable of operating in a wide temperature range from -40°C to 105°C, making it suitable for industrial, commercial, and automotive applications.
Typical applications include use in production and material handling systems, robotics, motor controls, automotive dashboard systems, base stations, audio equipment, and navigation units. The robust design and quality materials enable reliable performance in demanding environments.
Compact, space-saving female on-board SMT socket. Fully tin-plated bronze contacts for durability. Contact spring prevents fretting corrosion ensuring long-term performance. Polarized design for secure and correct mating.
Wide operating temperature from -40°C to 105°C. Suitable for use in robotics, automotive, communications, and industrial controls. Surface mount solder termination for reliable PCB attachment. Explore more PCB Sockets and connectors in the Electronics Components category at EnvMart for comprehensive solutions to your assembly needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating for this PCB socket is 230V.
This socket has a current rating of 1.5A.
The contact pitch size is 2.54 mm.
This PCB socket features 12 female contacts arranged in 2 rows.
The housing is made of polyamide, and the contacts are bronze plated with tin for optimal conductivity and corrosion resistance.
It operates reliably within a temperature range of -40°C to 105°C.
This model uses solder type termination for reliable PCB attachment.
Yes, it features a polarized design to prevent mismating during installation.
Typical applications include robotics, automotive dashboard systems, communications, and industrial controls.
The orientation of this socket is straight.
The contact spring system prevents fretting corrosion and ensures a gas tight connection, enhancing long-term reliability.
The row pitch of the contacts is 1.5 mm.
