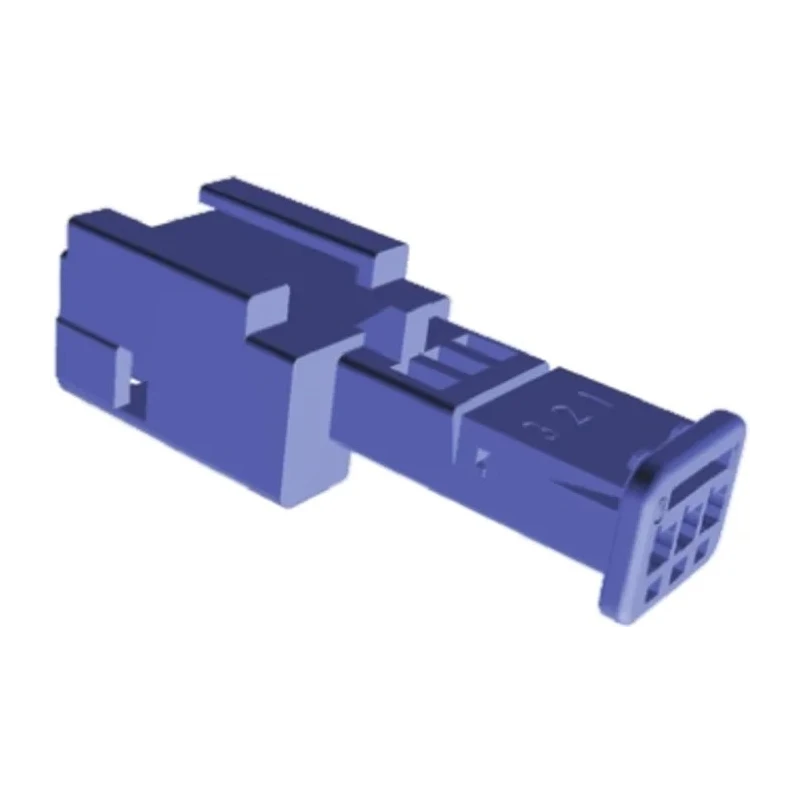

TE Connectivity Micro Quadlok System Automotive Connector Male Blue Cable 3 Way Crimp Termination 953698-3
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 33.7mm |
| Brand | TE Connectivity |
| Colour | Blue |
| Height | 10.4mm |
| Model | 953698-3 |
| Depth | 33.7mm |
| Width | 13.9mm |
| Gender | Male |
| Mount Type | Cable |
| Housing Material | Polybutylene Terephthalate |
| Series | Micro Quadlok System |
| Termination Type | Crimp |
| Maximum Operating Temperature | 85°C |
| Sub Type | Automotive Connector Housing |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Number of Contacts | 3 |
| • Pitch | 2.54mm |
Key Features
- Offers a high density connection with a 2.54mm pitch.
- Polarization and keying features prevent mismating during assembly.
- Durable polybutylene terephthalate housing ensures long-lasting performance.
- Operates reliably between -40°C and 85°C temperature range.
- Features an integral primary terminal locking force for secure contacts.
- Designed for cable mounting with a single row and three contacts.
- Available in a distinctive blue color for easy identification.
- Suitable for powertrain, safety, security, body, and chassis systems in automotive use.
Product Description
TE Connectivity 953698-3 Micro Quadlok System Automotive Connector Male Blue Cable 3 Way Crimp Termination is engineered for automotive environments requiring high functional performance and reliability.
The Micro Quadlok System (MQS) is a 2.54 mm pitch interconnection system offering compact, robust connectors that support high-density configurations. This MQS male connector housing is constructed from tough polybutylene terephthalate for mechanical strength and chemical resistance, with a distinctive blue color for easy identification.
Designed for crimp termination on cables, the connector features three contacts arranged in a single row, with stainless steel locking lances providing high primary terminal locking force to ensure secure and reliable contact retention. Its operating temperature range spans from -40°C to 85°C, making it suitable for harsh automotive conditions.
The connector includes polarization and keying mechanisms that prevent mismating, enhancing installation reliability. While seals for waterproof protection are available in other versions, this model focuses on cable-mounted applications requiring dependable electrical connections.
Applications include automotive powertrain systems, safety and security modules, driver information systems, and various body and chassis electrical connections, addressing the demanding demands of modern vehicles.
Offers a high density connection with a 2.54mm pitch. Polarization and keying features prevent mismating during assembly. Durable polybutylene terephthalate housing ensures long-lasting performance. Operates reliably between -40°C and 85°C temperature range.
Features an integral primary terminal locking force for secure contacts. Designed for cable mounting with a single row and three contacts. Available in a distinctive blue color for easy identification. Suitable for powertrain, safety, security, body, and chassis systems in automotive use.
Explore other Automotive Connectors and accessories on EnvMart for enhanced vehicle system integration and maintenance solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of the Micro Quadlok System connector is 2.54 mm.
This automotive connector operates reliably between -40°C and 85°C.
The TE Connectivity 953698-3 connector features three contacts arranged in a single row.
The housing of this connector is made from polybutylene terephthalate, which provides mechanical strength and chemical resistance.
This model uses crimp termination for cable mounting applications.
The connector is available in a distinctive blue color for easy identification.
The connector includes polarization and keying features that prevent mismating during assembly.
This connector is suitable for automotive powertrain systems, safety and security modules, driver information systems, and various body and chassis electrical connections.
The dimensions of the connector are 33.7 mm in diameter, 10.4 mm in height, 33.7 mm in depth, and 13.9 mm in width.
Yes, this connector is specifically designed for cable mounting with a single row of contacts.
The country of origin for this connector is India.
This connector belongs to the Micro Quadlok System series.
