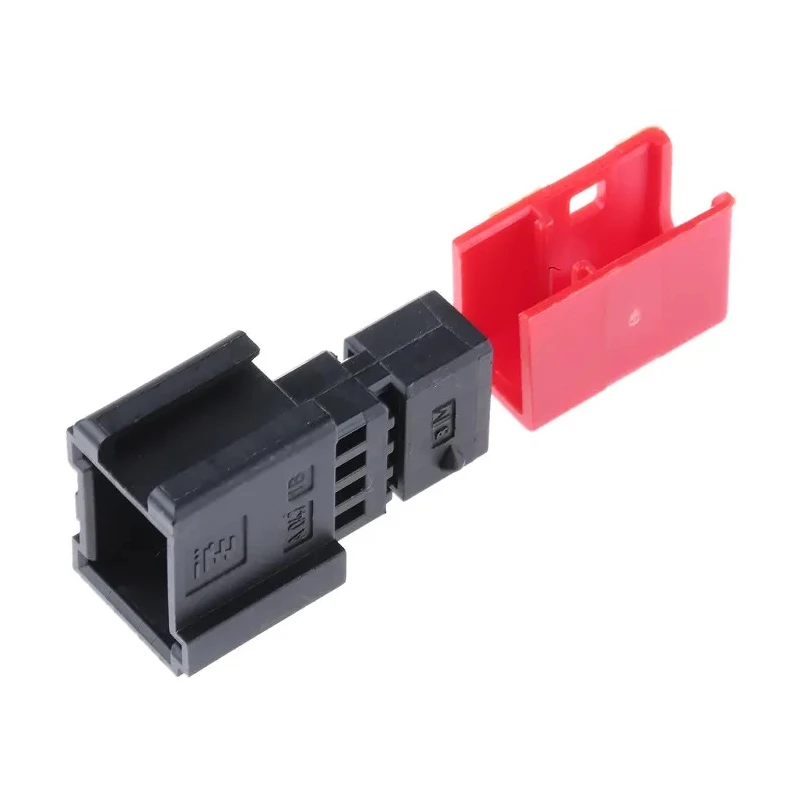

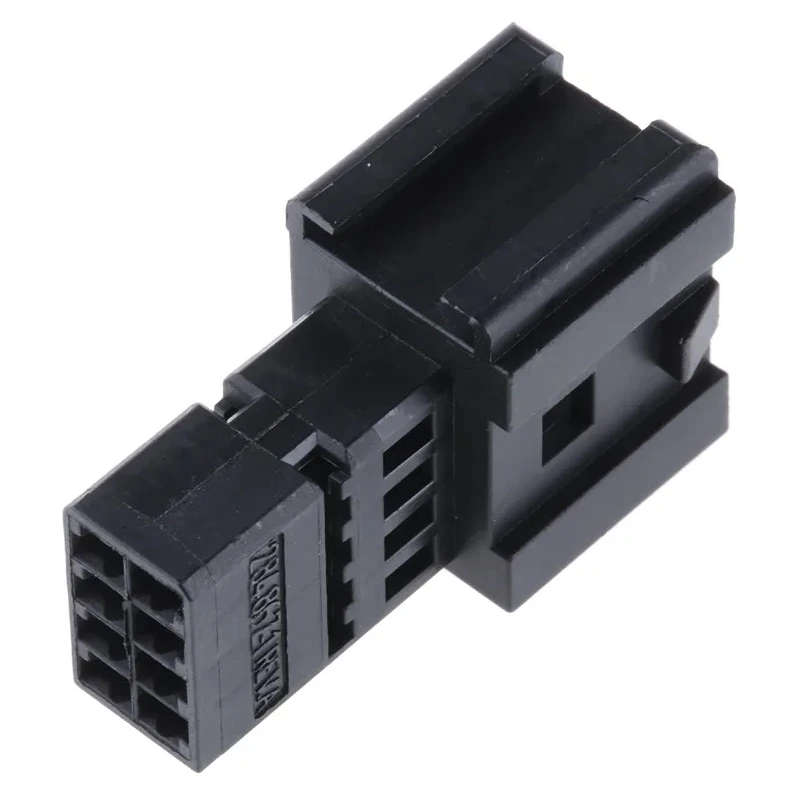

TE Connectivity Micro Quadlok System Automotive Connector Male Black Cable 8 Way Crimp Termination 284869-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Black |
| Height | 28.5mm |
| Model | 284869-1 |
| Depth | 28.5mm |
| Width | 13.7mm |
| Gender | Male |
| Mount Type | Cable |
| Housing Material | Nylon |
| Series | Micro Quadlok System |
| Termination Type | Crimp |
| Maximum Operating Temperature | 85°C |
| Sub Type | Automotive Connector Housing |
| Minimum Operating Temperature | -25°C |
| Number of Rows | 2 |
| Standards/Approvals | RoHS |
| Number of Contacts | 8 |
| • Pitch | 2.54mm |
Key Features
- The connector features 8 contacts arranged in 2 rows.
- Termination type is crimp with male gender design.
- Housing is made of durable black nylon material.
- Operating temperature ranges from -25°C to 85°C ensuring reliability in harsh conditions.
- Pitch is 2.54mm providing high density and compact design.
- Includes polarization and keying to prevent mismating during installation.
- RoHS compliant, meeting environmental standards.
- Mount type is cable mount without cord included.
Product Description
TE Connectivity 284869-1 Micro Quadlok System automotive connector male, featuring 8 contacts with crimp termination and robust black nylon housing, is engineered for demanding automotive electrical applications. The Micro Quadlok System provides a high density 2.54mm pitch interconnection with polarization and keying features to prevent mismatch and ensure secure connections.
This automotive connector supports operating temperatures from -25°C to 85°C, making it suitable for powertrain, safety, driver information, body, and chassis systems. The male cable mount connector has compact dimensions (28.5mm height, 13.7mm width, 28.5mm depth) and uses 2 rows of contacts designed with stainless steel locking lances to enhance terminal retention force.
The black nylon housing provides durable protection and the series is RoHS compliant, aligning with environmental and electrical standards. While the cord is not included, this connector supports crimp termination ensuring reliable electrical contact. The Micro Quadlok System series also offers sealed versions and accessory options for waterproofing and harness assembly customization.
The connector has 8 contacts in a 2-row configuration. Crimp termination type ensures strong electrical and mechanical connection. The housing material is black nylon for enhanced durability. Operating temperature range of -25°C to 85°C suits harsh automotive environments.
Pitch 2.54mm supports compact and high-density design. Polarization and keying prevent cross mating mistakes. RoHS compliant meeting environmental regulations. Mount type is cable, suitable for automotive wiring harnesses.
Compact dimensions: 28.5mm height, 13.7mm width, 28.5mm depth. Ideal for use in powertrain, safety, convenience, body, and chassis automotive systems.
TE Connectivity's Micro Quadlok System series is a reliable solution for automotive electrical connectors, providing high performance and safety in critical vehicle subsystems. Browse more Automotive Connectors on EnvMart for comprehensive wiring solutions designed to meet industry standards and vehicle requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this connector is 85°C.
The pitch size of the contacts in this model is 2.54mm.
This connector features 8 contacts arranged in 2 rows.
It uses crimp termination for secure electrical connections.
The housing is made of durable black nylon material.
The dimensions are 28.5mm in height, 13.7mm in width, and 28.5mm in depth.
Yes, this connector is RoHS compliant, meeting environmental standards.
The mount type for this connector is cable mount.
The minimum operating temperature is -25°C.
Yes, it includes polarization and keying features to prevent mismating during installation.
This connector is suitable for powertrain, safety, driver information, body, and chassis systems.
The connector is manufactured in India.
