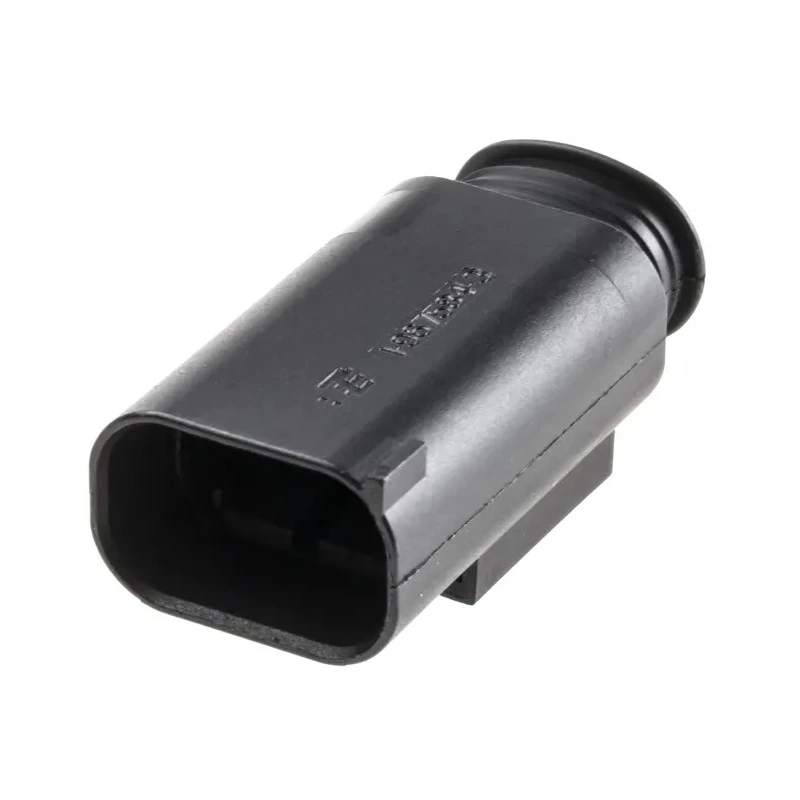

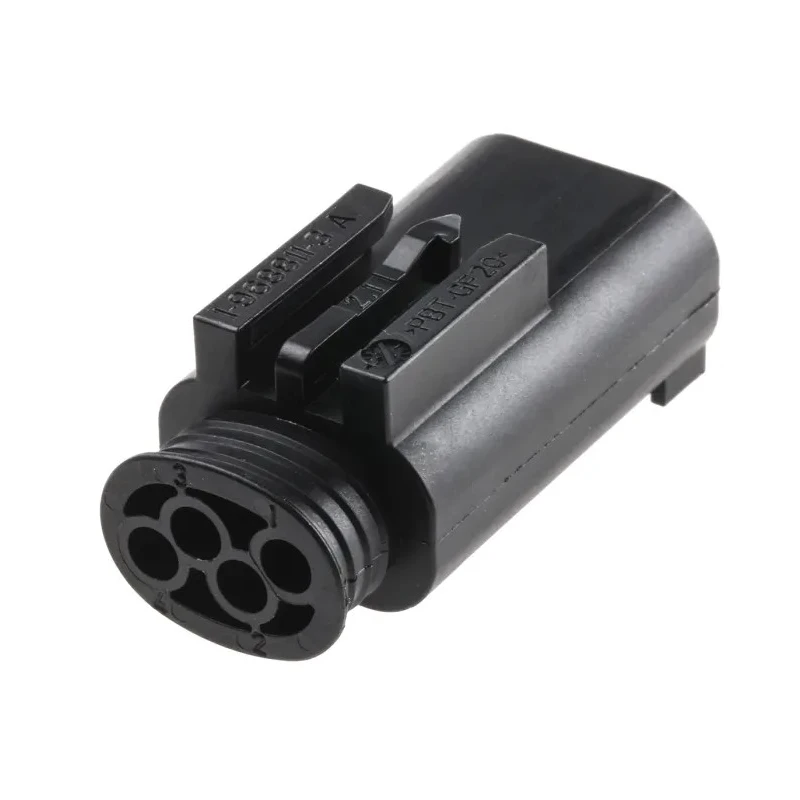

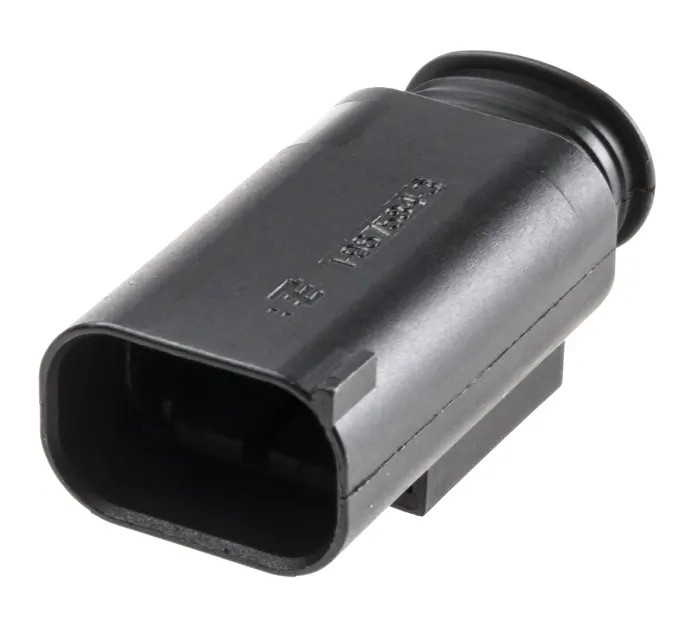

TE Connectivity Micro Quadlok System Automotive Connector Male Black Cable 4 Way Crimp Termination 1-967584-3
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Black |
| Height | 19.5mm |
| Depth | 40.1mm |
| IP Rating | IP69K |
| Width | 40.1mm |
| Gender | Male |
| Mount Type | Cable |
| Housing Material | Polybutylene Terephthalate |
| Series | Micro Quadlok System |
| Termination Type | Crimp |
| Maximum Operating Temperature | 120°C |
| Sub Type | Automotive Connector Housing |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Standards/Approvals | RoHS, REACH, ELV |
| Number of Contacts | 4 |
| • Pitch | 2.54mm |
Key Features
- The connector features 4 contacts arranged in 2 rows for compact installation.
- Crimp termination ensures secure and reliable cable connection.
- Constructed from durable polybutylene terephthalate housing in black color.
- Rated to IP69K for waterproof and dustproof performance in harsh environments.
- Operates reliably in temperatures ranging from -40°C to 120°C.
- Compact dimensions of 40.1mm width, 40.1mm depth, and 19.5mm height.
- Includes polarization and keying to prevent mismating in assemblies.
- High primary terminal locking force secures contacts firmly within housing.
Product Description
TE Connectivity 1-967584-3 Micro Quadlok System Automotive Connector is a male connector housing designed for automotive electrical applications. It features a black polybutylene terephthalate housing that provides robust insulation and durability. The connector has 4 contacts arranged in 2 rows and supports crimp termination for secure cable connection.
Designed for demanding automotive environments, this connector has an IP69K rating, ensuring it is waterproof and dustproof even under high-pressure washdowns. It can operate in extreme temperatures from -40°C to 120°C, making it suitable for powertrain, safety and security systems, body and chassis, and driver information systems.
The Micro Quadlok System series utilizes a 2.54mm pitch for high-density compact connections. Polarization and keying features prevent mismating during assembly, while stainless steel locking lances on the contacts ensure a high primary terminal locking force for reliable retention within the housing.
The connector measures 40.1mm in width and depth, with a height of 19.5mm. It meets environmental and safety standards including RoHS, REACH, and ELV directives. The connector features 4 contacts arranged in 2 rows for compact installation.
Crimp termination ensures secure and reliable cable connection. Constructed from durable polybutylene terephthalate housing in black color. Rated to IP69K for waterproof and dustproof performance in harsh environments. Operates reliably in temperatures ranging from -40°C to 120°C.
Compact dimensions of 40.1mm width, 40.1mm depth, and 19.5mm height. Includes polarization and keying to prevent mismating in assemblies. High primary terminal locking force secures contacts firmly within housing. Suitable for automotive powertrain, safety, chassis, and driver information systems.
Complies with RoHS, REACH, and ELV standards for environmental safety.
This automotive connector is ideal for industrial and manufacturing applications involving automotive electronics, including powertrain systems, safety and security controls, convenience features, and chassis wiring harnesses.
Explore more products like this TE Connectivity Micro Quadlok System Automotive Connector in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector is rated IP69K, ensuring it is waterproof and dustproof, suitable for harsh environments.
It operates reliably in temperatures ranging from -40°C to 120°C.
This connector features 4 contacts arranged in 2 rows.
It utilizes crimp termination for secure and reliable cable connections.
The connector measures 40.1mm in width, 40.1mm in depth, and 19.5mm in height.
The housing is constructed from polybutylene terephthalate, which provides robust insulation and durability.
Yes, it includes polarization and keying features to prevent mismating during assembly.
It complies with RoHS, REACH, and ELV directives for environmental safety.
The Micro Quadlok System connector has a contact pitch of 2.54mm.
This connector is a male type.
It is suitable for automotive powertrain, safety, chassis, and driver information systems.
The connector is manufactured in India.
