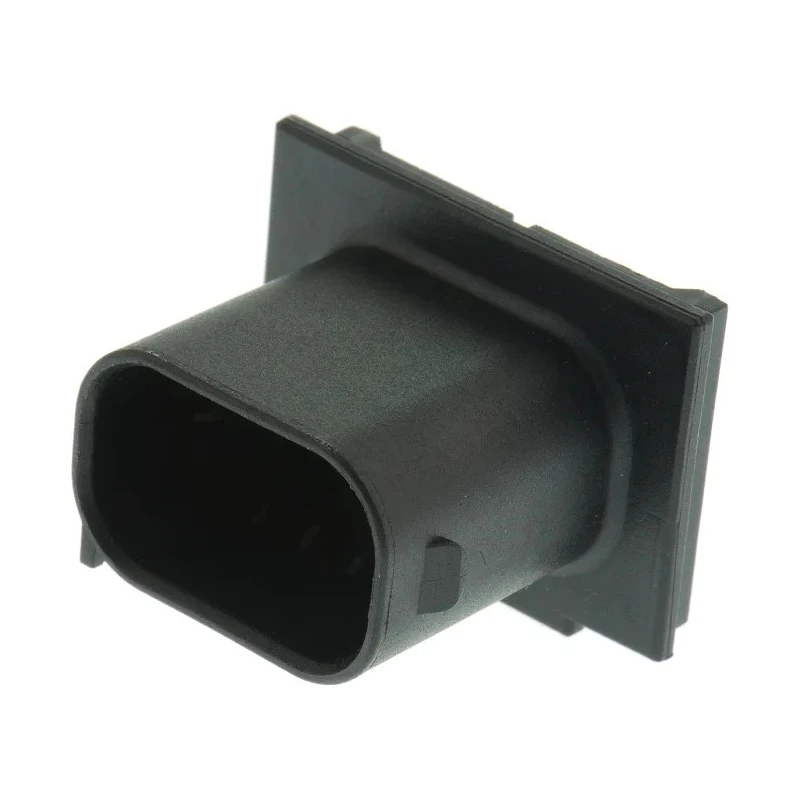

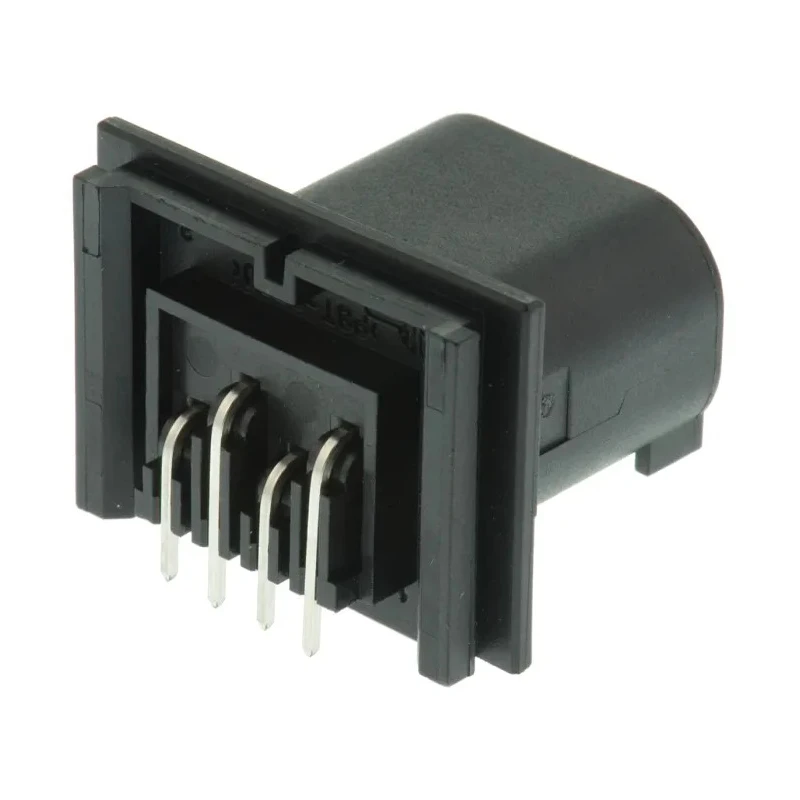

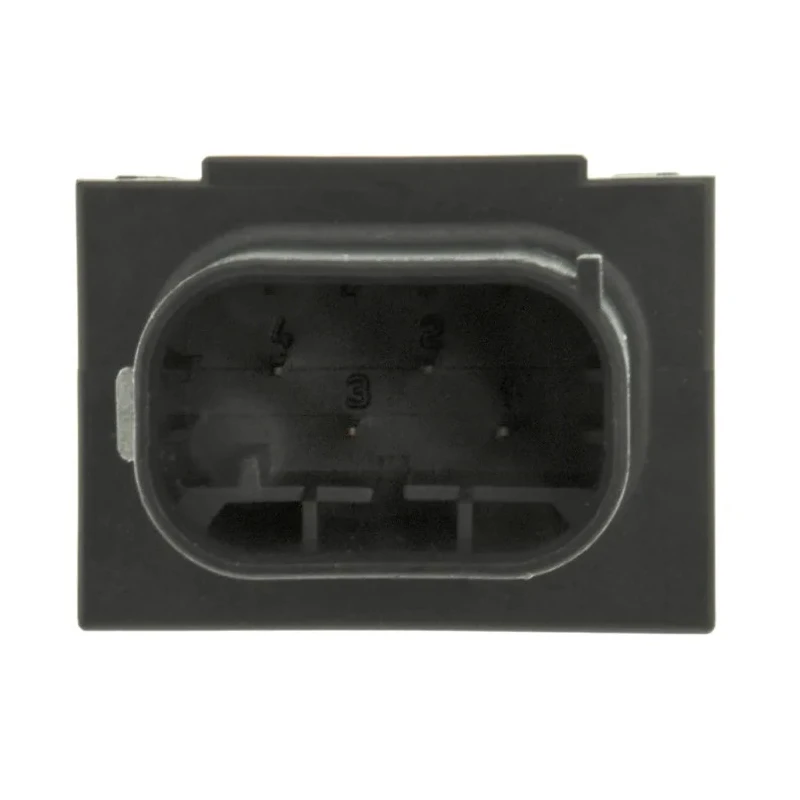

TE Connectivity Micro Quadlok System Automotive Connector Male Black Through Hole 4 Way Solder Termination 1-967657-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Black |
| Height | 19.7mm |
| Depth | 26.5mm |
| IP Rating | IPx9K |
| Width | 26.8mm |
| Gender | Male |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Copper Alloy |
| Series | Micro Quadlok System |
| Termination Type | Solder |
| Maximum Operating Temperature | 120°C |
| Sub Type | Micro Quadlok Interconnection |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Standards/Approvals | EU ELV, EU RoHS |
| Contact Plating | Tin |
| Number of Contacts | 4 |
Key Features
- Features 4 contacts arranged in 2 rows for secure connection.
- Constructed using black polybutylene terephthalate housing for durability.
- Copper alloy contacts plated with tin ensure excellent conductivity.
- Rated for operating temperatures between -40°C and 120°C.
- Offers IPx9K ingress protection suitable for automotive environments.
- Compact dimensions of 26.8mm width, 26.5mm depth, and 19.7mm height.
- Compliance with EU ELV and EU RoHS standards for safety and environment.
- Designed specifically for automotive electrical connection applications.
Product Description
TE Connectivity 1-967657-1 Micro Quadlok System Automotive Connector Male Black Through Hole 4 Way Solder Termination combines advanced materials and precise engineering to deliver reliable electrical connections in demanding automotive environments. This connector features a robust black polybutylene terephthalate housing that provides excellent mechanical strength while maintaining lightweight properties.
The connector supports 4 contacts arranged in 2 rows, ensuring secure and stable signal or power transmission. Contacts are made of copper alloy with tin plating for enhanced conductivity and corrosion resistance, suitable for solder termination. Its through hole mount type ensures firm PCB attachment facilitating efficient assembly processes.
Designed for automotive use, the connector withstands harsh conditions, operating reliably between -40°C to 120°C. It carries a high IPx9K ingress protection rating, protecting against high-pressure and high-temperature water jets, essential for vehicle exposure to environmental elements. This product adheres to strict EU ELV and RoHS regulatory standards, affirming its compliance with safety and environmental requirements.
Its compact size, measuring 26.8mm in width, 26.5mm in depth, and 19.7mm in height, fits space-constrained automotive applications without sacrificing performance. The Micro Quadlok System guarantees dependable interconnection performance for automotive electrical wiring harnesses and other electronic systems.
Features 4 contacts arranged in 2 rows for secure connection. Housing made from durable black polybutylene terephthalate material. Copper alloy contacts with tin plating provide conductivity and corrosion resistance. Termination type is solder ensuring strong electrical contact.
Through hole mount type fits securely onto printed circuit boards. IPx9K rating protects against water jets and environmental ingress. Operational temperature range from -40°C up to 120°C supports automotive conditions.
This TE Connectivity connector is ideally suited for automotive, industrial, and harsh environment electrical systems. Its design supports manufacturing efficiency and enhances product reliability, making it a preferred choice for automotive electrical connectors.
Discover more Automotive Connectors and related electronic components on EnvMart to meet diverse industrial and commercial requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector operates reliably within a temperature range of -40°C to 120°C, making it suitable for various automotive conditions.
The housing is made from black polybutylene terephthalate, while the contacts are constructed from copper alloy with tin plating for enhanced conductivity and corrosion resistance.
It has an IPx9K ingress protection rating, which protects against high-pressure and high-temperature water jets, suitable for automotive environments.
This connector features 4 contacts arranged in 2 rows, ensuring secure and stable electrical connections.
It utilizes solder termination, ensuring a strong electrical contact for reliable performance.
The connector measures 26.8mm in width, 26.5mm in depth, and 19.7mm in height, making it compact for automotive applications.
Yes, it complies with EU ELV and EU RoHS standards, ensuring safety and environmental compliance.
This model features a through hole mount type, which allows for secure attachment to printed circuit boards.
It belongs to the Micro Quadlok System series, designed specifically for automotive electrical connections.
The connector is black, which is typical for many automotive connectors to reduce visibility of dirt and wear.
This connector is male, designed to fit securely into corresponding female connectors in automotive applications.
The country of origin for this connector is India, reflecting its manufacturing location.
