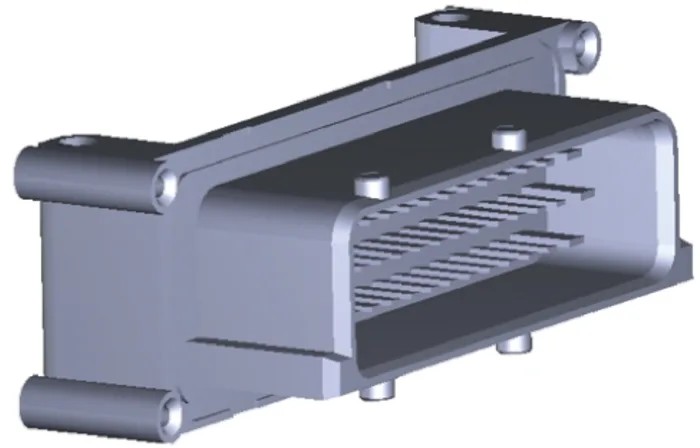

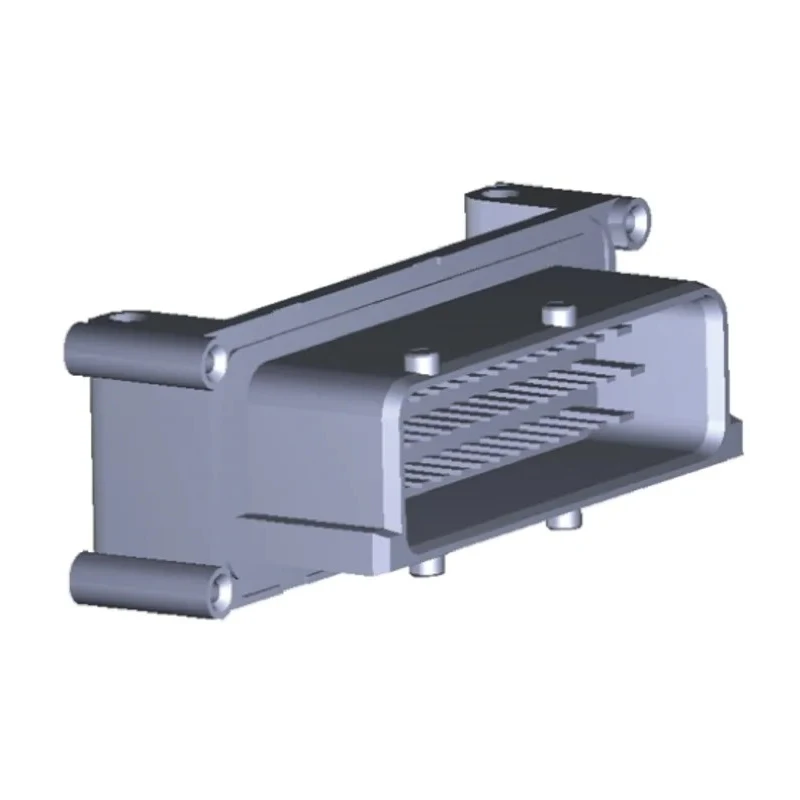

TE Connectivity Timer Automotive Male Black Through Hole 42 Way Solder Termination 1-1718093-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Black |
| Height | 32.5mm |
| Depth | 73.2mm |
| Width | 37.1mm |
| Gender | Male |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Bronze |
| Series | Timer |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | Plug Header |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 2 |
| Standards/Approvals | ELV, REACH, RoHS |
| Contact Plating | Tin |
| Number of Contacts | 42 |
Key Features
- This male connector features 42 contacts arranged in 2 rows.
- The housing is made from durable polybutylene terephthalate ensuring robust mechanical strength.
- Contacts are constructed from bronze with tin plating for corrosion resistance.
- Operates reliably within a temperature range of -65°C to 105°C.
- Designed for through hole mounting with solder termination.
- This connector meets ELV, REACH, and RoHS standards for environmental and safety compliance.
- Its compact dimensions measure 73.2 mm depth, 37.1 mm width, and 32.5 mm height.
- The product is ideal for automotive electrical systems requiring secure timer connections.
Product Description
TE Connectivity model 1-1718093-1 is a Timer Automotive Connector designed specifically for male plug header applications in automotive electrical systems. The connector utilizes a black polybutylene terephthalate housing that offers high mechanical durability and chemical resistance suitable for automotive environments.
This 42-contact connector arranges its contacts in two rows and employs solder termination with a through-hole mount style, facilitating stable PCB integration and signal integrity. The contacts are bronze with a tin plating that ensures excellent conductivity and corrosion resistance over prolonged use.
Operating reliably with a temperature range from -65°C to 105°C, this connector meets rigorous automotive standards including ELV, REACH, and RoHS, reflecting compliance with restricted hazardous substances and environmental safety norms.
Dimensional specifications with a depth of 73.2 mm, width of 37.1 mm, and height of 32.5 mm make it suitable for compact installations within automotive assemblies. The connector does not include any cord but is ready for direct PCB insertion, improving production efficiency.
The TE Connectivity 1-1718093-1 Timer Automotive Connector is an essential component for automotive timer assemblies requiring dependable, high-quality electrical connections in harsh environments. Its design and certified compliances ensure performance and longevity in industrial automotive use cases.
This male connector features 42 contacts arranged in 2 rows. The housing is made from durable polybutylene terephthalate ensuring robust mechanical strength. Contacts are constructed from bronze with tin plating for corrosion resistance.
Operates reliably within a temperature range of -65°C to 105°C. Designed for through hole mounting with solder termination. This connector meets ELV, REACH, and RoHS standards for environmental and safety compliance. Its compact dimensions measure 73.2 mm depth, 37.1 mm width, and 32.5 mm height.
The product is ideal for automotive electrical systems requiring secure timer connections. Explore more Automotive Connectors and related components available at EnvMart to support your automotive and industrial electronic requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this connector is 105°C.
The minimum operating temperature is -65°C.
This connector features 42 contacts arranged in 2 rows.
The housing is made from polybutylene terephthalate, while the contacts are constructed from bronze with tin plating for corrosion resistance.
The dimensions are 73.2 mm in depth, 37.1 mm in width, and 32.5 mm in height.
This connector uses solder termination with a through-hole mount style.
Yes, it meets ELV, REACH, and RoHS standards for environmental and safety compliance.
This connector is a male type.
It is designed for automotive electrical systems requiring secure timer connections.
No, this connector does not include any cords and is ready for direct PCB insertion.
The housing of this connector is black.
This connector belongs to the Timer series.
