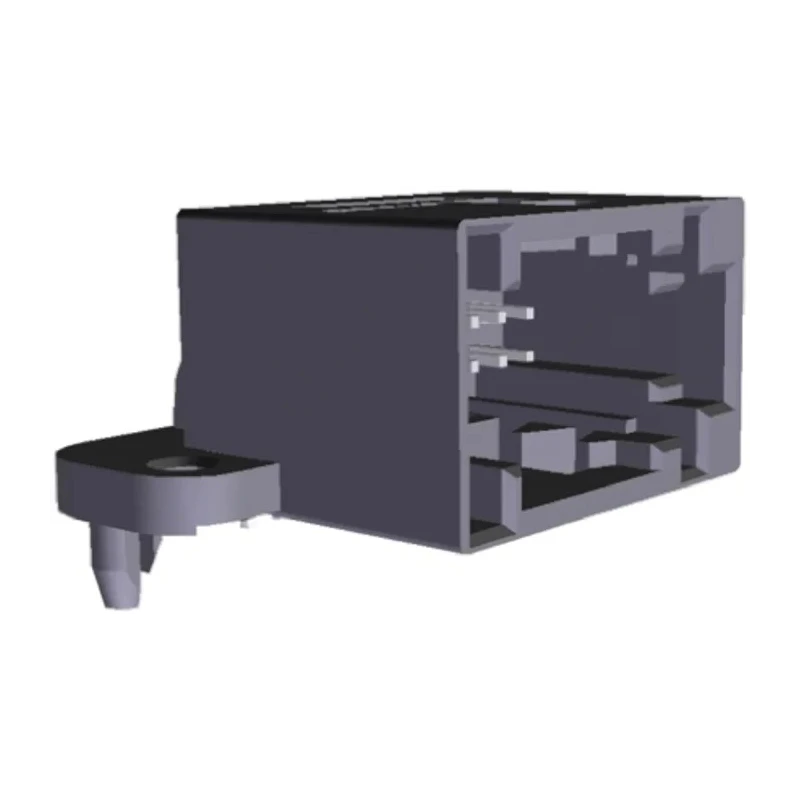

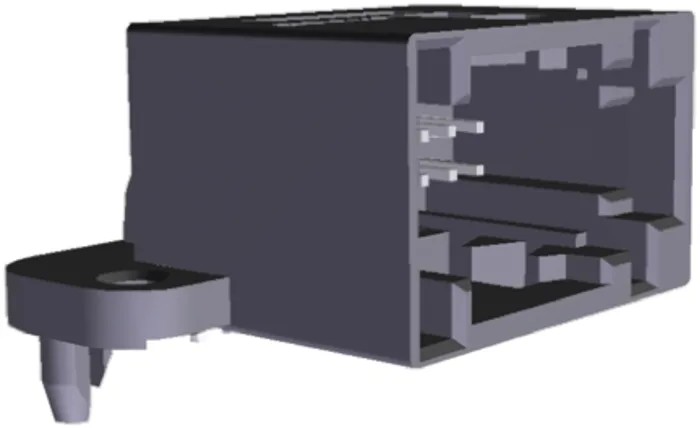

TE Connectivity Micro Quadlok System Automotive Connector Male Black Through Hole 12 Way Solder Termination 1355505-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Colour | Black |
| Height | 15.9mm |
| Depth | 25.27mm |
| Width | 38.4mm |
| Gender | Male |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Bronze Powder |
| Series | Micro Quadlok System |
| Termination Type | Solder |
| Maximum Operating Temperature | 80°C |
| Sub Type | Micro Quadlok Interconnection |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Standards/Approvals | EU ELV, EU RoHS |
| Contact Plating | Tin |
| Number of Contacts | 12 |
Key Features
- Constructed with nylon housing for durability and insulation.
- Contacts made of bronze powder with tin plating for reliable conductivity and corrosion resistance.
- Operates efficiently between minimum -40°C and maximum 80°C temperatures.
- The connector design includes 2 rows with a pitch of 2.54mm for Micro Quadlok system compatibility.
- Complies with EU ELV and EU RoHS standards for environmental safety.
- Measures 38.4mm width, 25.27mm depth, and 15.9mm height for compact PCB integration.
- Provides secure and stable interconnection for automotive electrical applications.
- No cord included, ensuring flexibility in wiring configurations.
Product Description
TE Connectivity 1355505-1 Micro Quadlok System Automotive Connector is a high-quality male connector designed for automotive electrical interconnections. It features a robust black nylon housing that ensures excellent insulation and mechanical protection in demanding automotive environments.
This connector has 12 contacts arranged in 2 rows with a 2.54mm pitch, adhering to the Micro Quadlok System standards. The contacts are manufactured from bronze powder and plated with tin to provide durable, low-resistance connections that withstand corrosion and wear.
Designed for through hole mounting, the connector offers ease of installation onto printed circuit boards (PCBs). It measures 38.4mm wide, 25.27mm deep, and 15.9mm in height, enabling compact and reliable PCB layouts.
Operating temperature ranges from -40°C to 80°C make this connector suitable for harsh automotive conditions. The product complies with EU ELV and EU RoHS directives, ensuring it meets environmental and safety regulations for automotive components.
Constructed with nylon housing for durability and insulation. Contacts made of bronze powder with tin plating for reliable conductivity and corrosion resistance. Operates efficiently between minimum -40°C and maximum 80°C temperatures.
The connector design includes 2 rows with a pitch of 2.54mm for Micro Quadlok system compatibility. Complies with EU ELV and EU RoHS standards for environmental safety. Measures 38.4mm width, 25.27mm depth, and 15.9mm height for compact PCB integration.
Provides secure and stable interconnection for automotive electrical applications. No cord included, ensuring flexibility in wiring configurations. Color coded black for easy identification and matching in assemblies.
This automotive connector is ideal for use in automotive electrical systems, manufacturing, and repair environments requiring reliable interconnection solutions. It supports effective power and signal transmission in vehicle assemblies and compliance with stringent automotive standards.
Explore the full range of Automotive Connectors at EnvMart for specialized electrical solutions designed to meet industrial and automotive demands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates efficiently between a minimum temperature of -40°C and a maximum temperature of 80°C.
It features 12 contacts arranged in 2 rows, adhering to the Micro Quadlok System standards.
The housing is made of nylon for durability and insulation, while the contacts are made of bronze powder with tin plating for reliable conductivity and corrosion resistance.
The connector measures 38.4mm in width, 25.27mm in depth, and 15.9mm in height, making it suitable for compact PCB integration.
It utilizes solder termination for secure connections.
Yes, it complies with EU ELV and EU RoHS standards for environmental safety.
This model is designed for through hole mounting, allowing for easy installation onto printed circuit boards (PCBs).
It is color-coded black for easy identification and matching in assemblies.
This automotive connector is ideal for use in automotive electrical systems, manufacturing, and repair environments requiring reliable interconnection solutions.
The contacts are arranged with a pitch of 2.54mm, which is standard for the Micro Quadlok system.
No, this connector does not include any cords, providing flexibility in wiring configurations.
The connector is manufactured in India.
