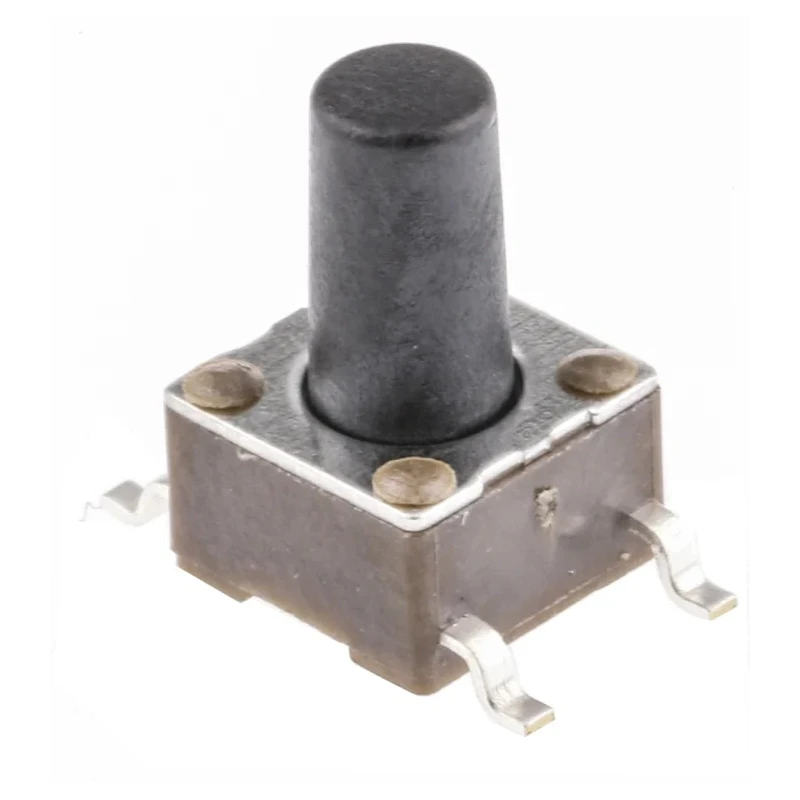

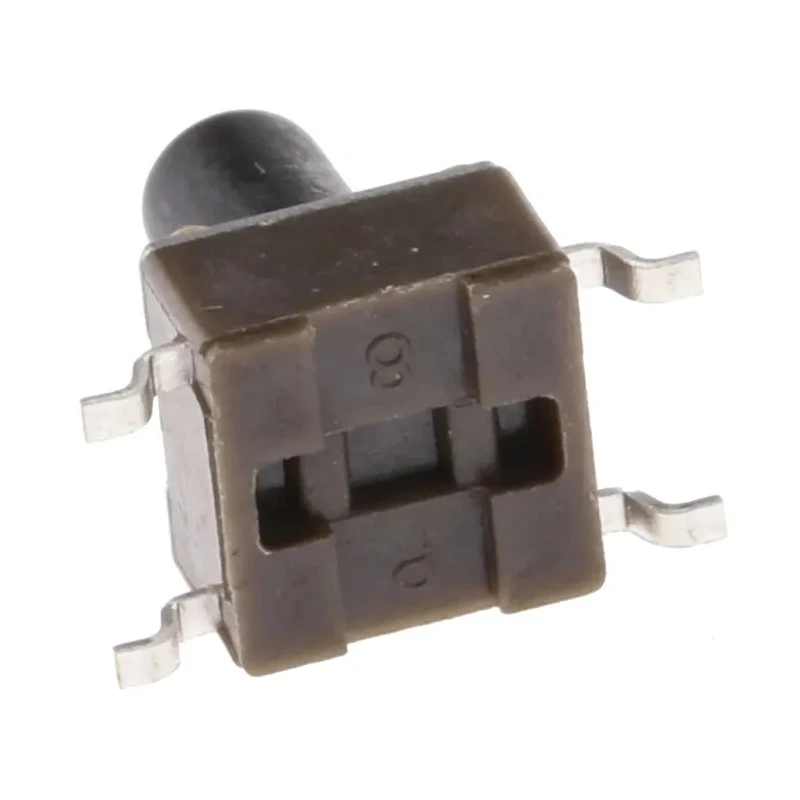

TE Connectivity Black FSM Series Tactile Switch Button 5.9 mm, SPST 50mA 24 V dc, Surface Mount 1571563-9
Specifications
| Country of Origin | China |
|---|---|
| Brand | TE Connectivity |
| Height | 9.5mm |
| Length | 6mm |
| Width | 6mm |
| Mount Type | Surface |
| Series | FSM |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -35°C |
| Terminal type | Surface Mount |
| Standards/Approvals | RoHS |
| Switch Operation | Momentary |
| Actuator Colour | Black |
| Actuator Length | 5.9mm |
| Contact DC Voltage | 24V dc |
| Actuator Style | Button |
| Switch Contact Current | 50mA |
| Operating Force | 1.57N |
| Mechanical Life | 100000Cycles |
Key Features
- Designed for surface mount PCB applications with a compact footprint.
- Operates at 24 V DC with a maximum current rating of 50 mA.
- Constructed with durable Nylon 66 housing and copper alloy-silver contacts.
- Mechanical life expectancy of 100,000 cycles ensuring reliable performance.
- Operating temperature range from -35°C to 85°C to suit various environments.
- Actuation force of 1.57 N and low profile design for ease of use.
- RoHS compliant, suitable for industrial and consumer electronics.
Product Description
TE Connectivity presents the 1571563-9 model black tactile switch button from the FSM series, designed for precise momentary switching applications in electronics. This surface-mount switch measures 5.9 mm in actuator length with an overall size of 6 mm by 6 mm and a height of 9.5 mm, offering a compact solution for PCB assemblies.
The switch features a Single Pole Single Throw (SPST) contact configuration capable of handling 50 mA at 24 V DC. Its actuation force is rated at 1.57 Newtons, providing responsive tactile feedback. The robust Nylon 66 housing and copper alloy-silver moving contact ensure durability and long mechanical life of up to 100,000 cycles.
Operating temperature ranges between -35°C and 85°C, making it suitable for a broad spectrum of industrial, consumer electronics, and automation applications including keyboards, keypads, telephones, and radios. The switch is RoHS compliant, aligning with environmental safety standards.
Its surface mount terminal type and low-profile button actuator enable easy installation and integration in various electronic devices. The FSM series tactile switches by TE Connectivity provide a reliable and compact input solution ideal for closing circuits on PCBs with minimal space requirements.
Compact and low profile surface mount tactile switch for PCB assembly. Black button actuator measuring 5.9 mm for precise operation. Rated for 50 mA at 24 V DC with SPST contact configuration. Durable construction with Nylon 66 housing and copper alloy-silver contacts.
Long mechanical life of 100,000 cycles ensuring durability. Wide operating temperature range from -35°C to +85°C. Compliant with RoHS standards for environmental safety.
This tactile switch is suitable for industrial automation, telecommunications equipment, consumer electronics, and other applications requiring reliable momentary contact switches. EnvMart offers this product for professional projects requiring high-quality PCB Tactile Switches.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this tactile switch is 50 mA.
This model operates at a voltage of 24 V DC.
The actuation force for this switch is rated at 1.57 N.
The mechanical life expectancy of this tactile switch is 100,000 cycles.
The tactile switch has dimensions of 6 mm in length, 6 mm in width, and a height of 9.5 mm.
The operating temperature range for this model is from -35°C to 85°C.
Yes, this tactile switch is RoHS compliant, aligning with environmental safety standards.
This switch uses surface mount type for installation.
The contact configuration of this switch is Single Pole Single Throw (SPST).
The switch is constructed with durable Nylon 66 housing and copper alloy-silver contacts.
This tactile switch is suitable for applications in industrial automation, telecommunications equipment, and consumer electronics.
The actuator style of this tactile switch is a button, with a length of 5.9 mm.
