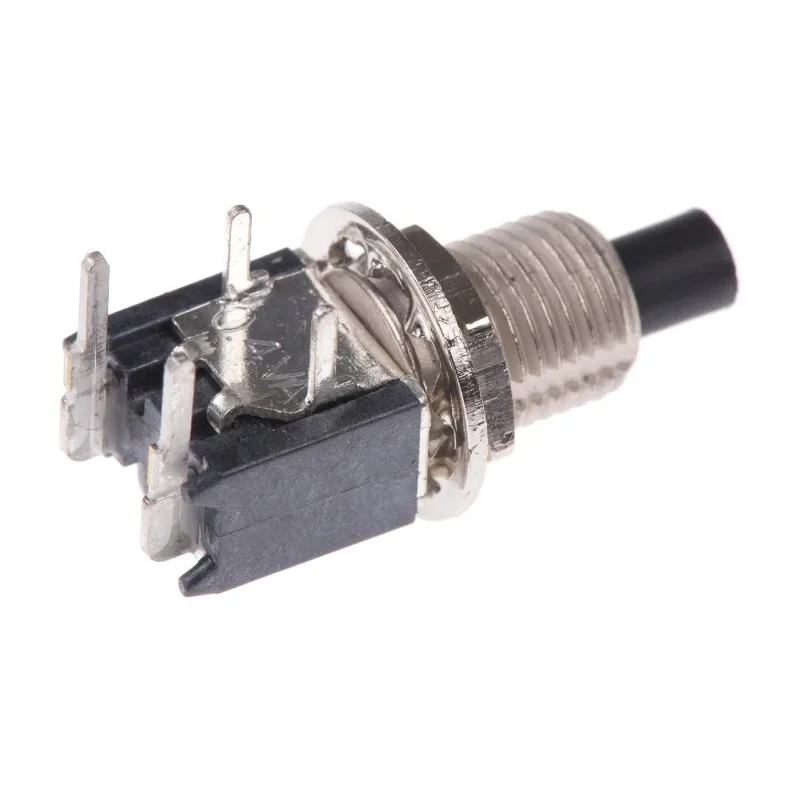

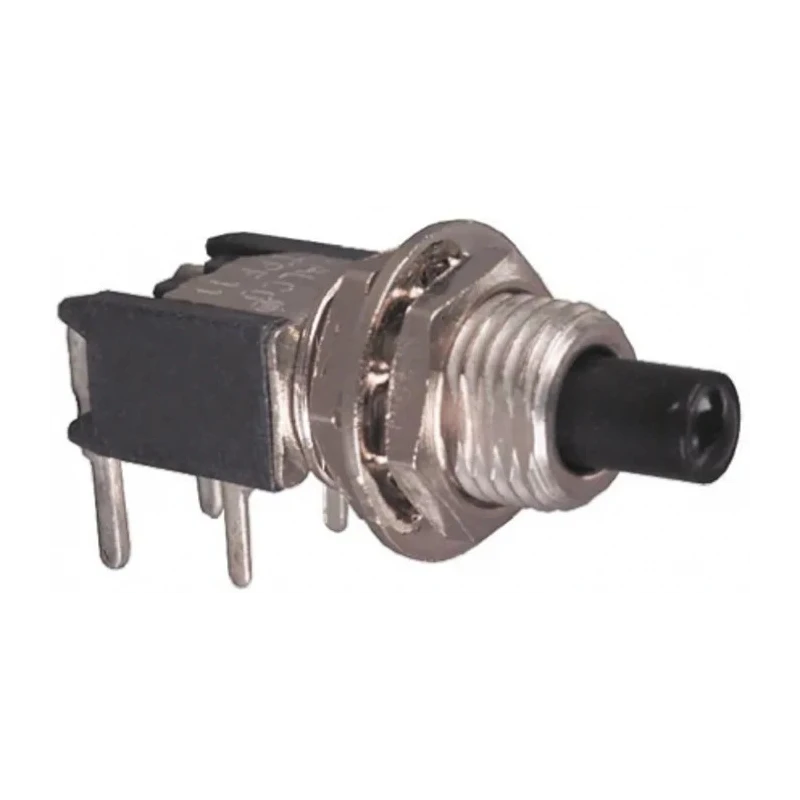

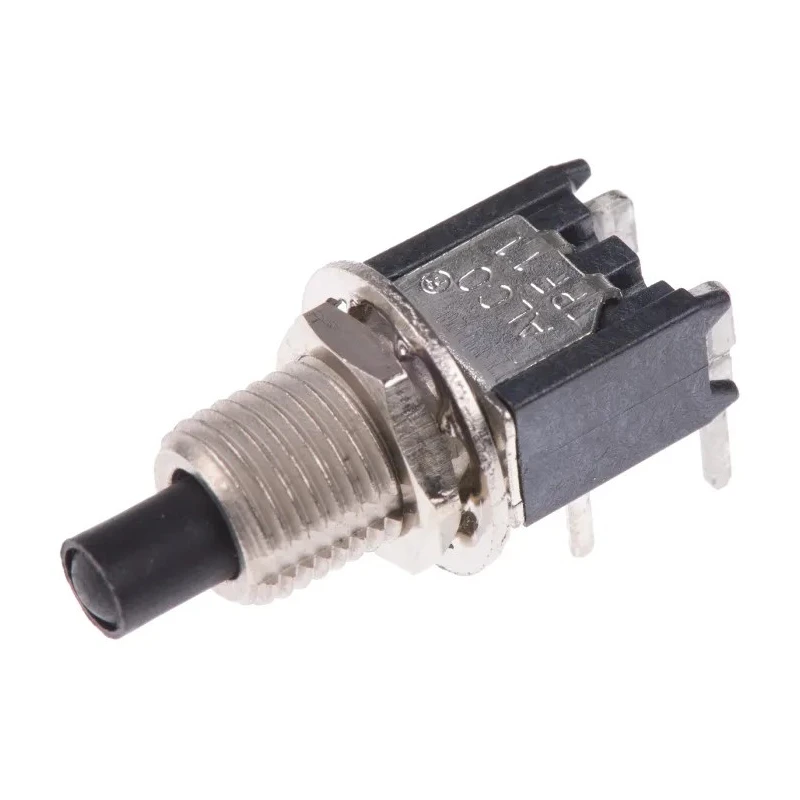

TE Connectivity Miniature Push Button Switch Momentary PCB Mount SPST 20 V dc 1825100-4
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Mount Type | PCB |
| Maximum Operating Temperature | 65°C |
| Contact Configuration | SPST |
| Switch Configuration | SPST |
| Minimum Operating Temperature | -30°C |
| Terminal type | Through Hole |
| Standards/Approvals | RoHS, REACH |
| Switch Operation | Momentary |
| Actuator Colour | Black |
| Contact DC Voltage | 20V dc |
| Actuator Style | Push Button |
| Switch Contact Current | 400mA |
| Electrical Life | 80000 cycles |
Key Features
- The switch features a black push button actuator for easy operation.
- Designed for PCB mounting with through-hole terminals for secure fitting.
- Single Pole Single Throw (SPST) contact configuration ensures simple on/off control.
- Operates at a maximum contact DC voltage of 20 V and maximum contact current of 400 mA.
- Suitable for environments with operating temperatures ranging from -30°C to 65°C.
- Non-illuminated switch with a momentary switch operation type.
- Gold contacts and thermoplastic housing provide durability and long electrical life of 80,000 cycles.
- Complies with RoHS and REACH standards ensuring environmental safety.
Product Description
TE Connectivity 1825100-4 is a miniature push button switch designed for momentary on/off operation. It is built for PCB mounting with through-hole terminal type and a black colored push button actuator. The switch has a single pole single throw (SPST) contact configuration, providing straightforward switch functionality for various electrical and electronic circuits.
It operates comfortably within a contact DC voltage of 20 V and can handle a contact current of up to 400 mA. With an operating temperature range from -30°C to 65°C, it performs reliably in diverse environments. The switch is non-illuminated and features gold contacts housed in a durable thermoplastic casing, ensuring a long electrical life rated at 80,000 cycles.
This product complies fully with RoHS and REACH environmental standards, affirming its safety for industrial and commercial use. The design allows for vertical or right angle mounting options, enhancing flexibility in circuit assembly. It is also wave solder capable up to 265°C, simplifying PCB production processes.
TE Connectivity's TP series miniature push buttons are widely used in industries such as electrical automation, industrial machinery, instrumentation, and manufacturing lines where reliable momentary switches are essential. Their robust design and performance characteristics make them suitable for precision control and signal activation tasks.
The switch features a black push button actuator for easy operation. PCB mount with through-hole terminal ensures secure installation. Single Pole Single Throw (SPST) contact configuration provides reliable switching. Max contact DC voltage: 20 V; max contact current: 400mA.
Operating temperature range from -30°C to 65°C suits various environments. Electrical life expectancy of 80,000 cycles supports long-term use. Non-illuminated design with gold contacts and thermoplastic housing. Conforms to RoHS and REACH standards for environmental compliance.
Vertical or right angle mounting options available. Wave solder capable at 265°C simplifies PCB manufacturing. Explore more detailed switch options and related components in the Electronics & Electricals category at EnvMart for industrial and commercial applications.
Explore more products in our Push Button Switches category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum contact DC voltage for this switch is 20 V.
It has a maximum contact current rating of 400 mA.
This switch operates within a temperature range of -30°C to 65°C.
It is designed for PCB mounting with through-hole terminals.
The switch features a Single Pole Single Throw (SPST) contact configuration.
The electrical life expectancy of this switch is rated at 80,000 cycles.
No, this model is non-illuminated.
It features gold contacts and a thermoplastic housing for durability.
It complies with RoHS and REACH standards for environmental safety.
Yes, it allows for vertical or right angle mounting options.
The actuator style is a black push button.
This model is wave solder capable up to 265°C, facilitating PCB production processes.
