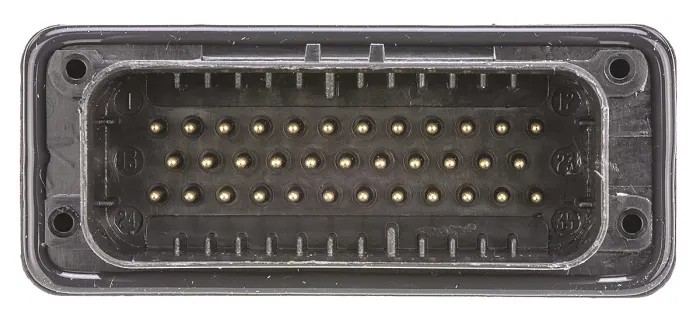

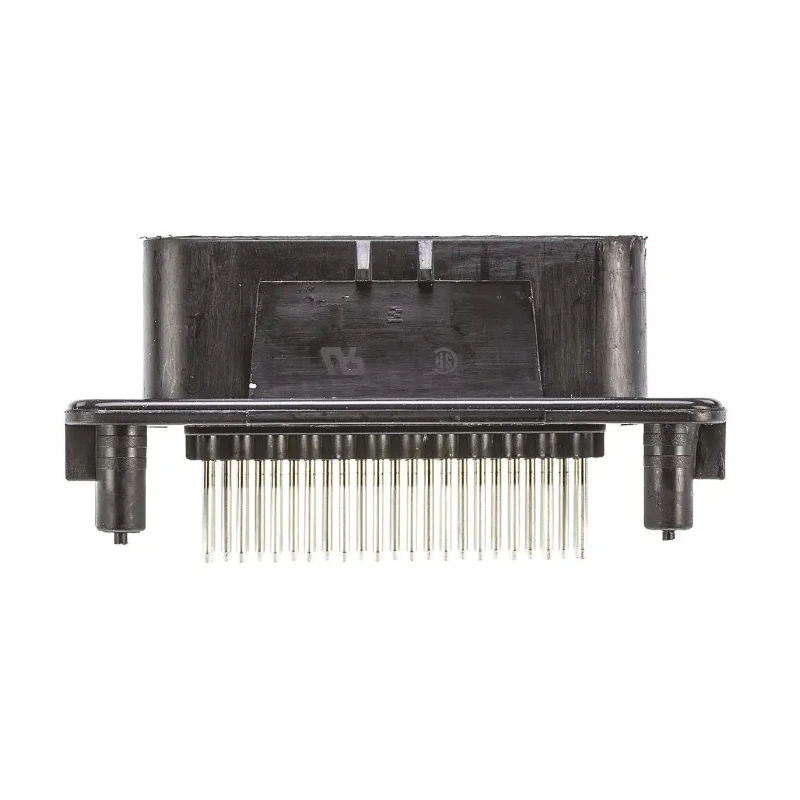

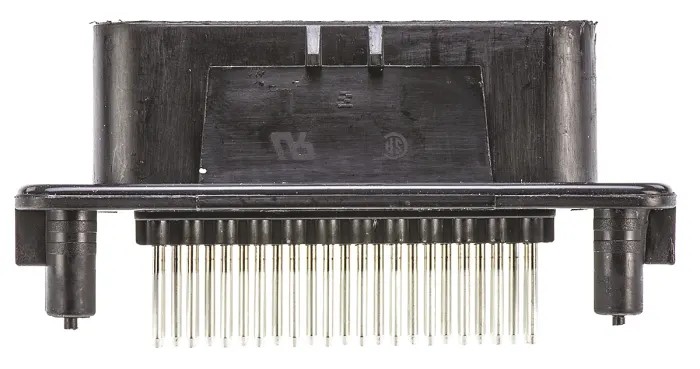

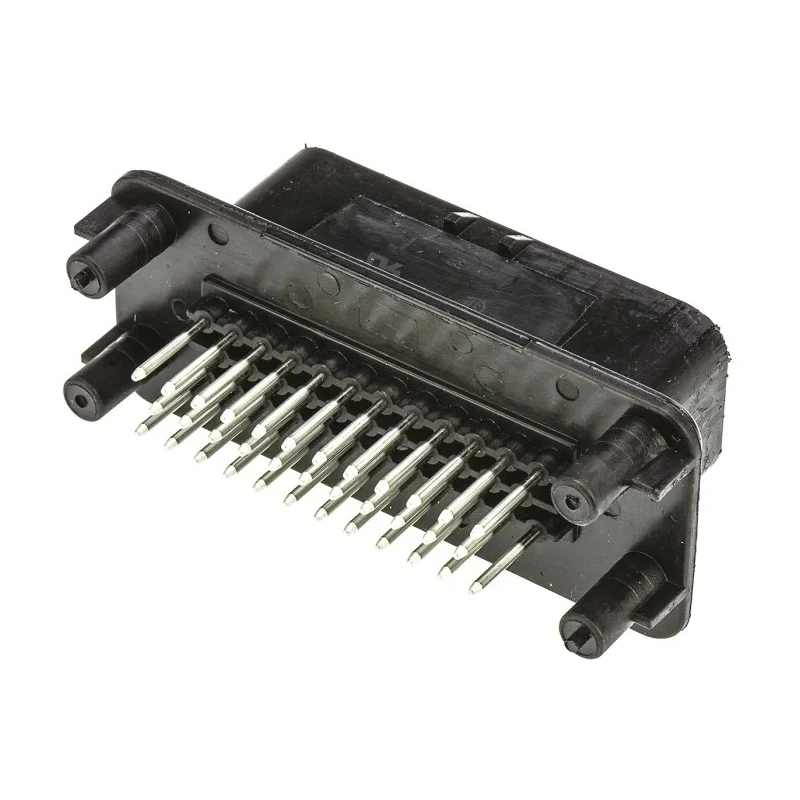

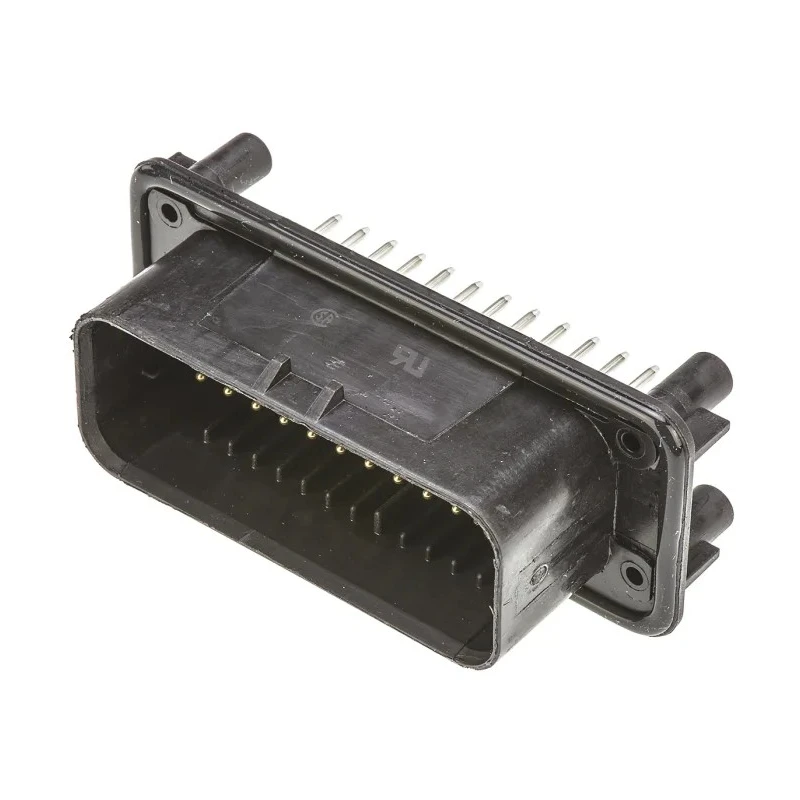

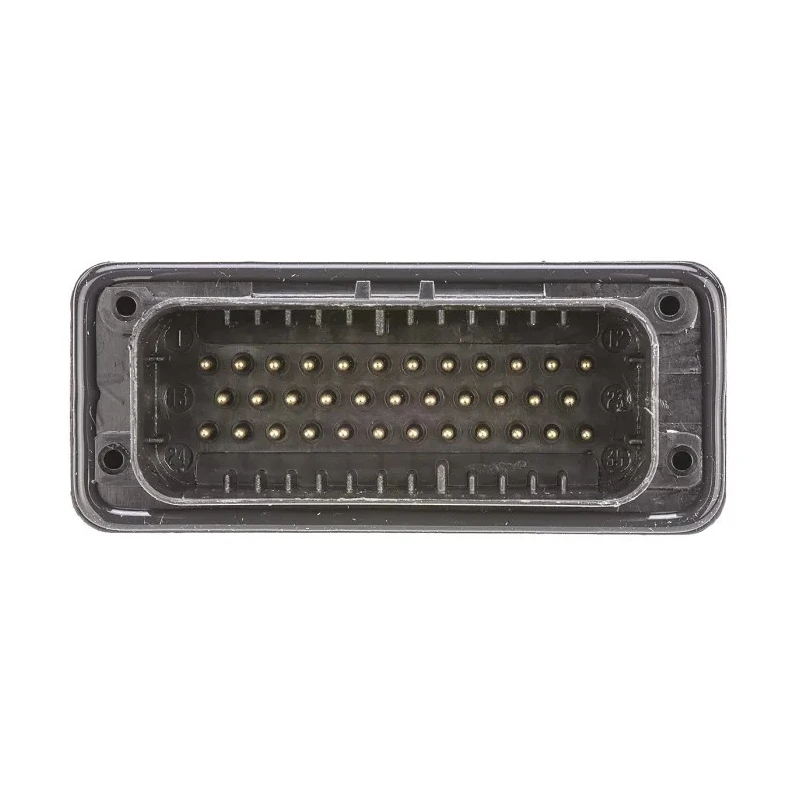

TE Connectivity Ampseal Automotive Connector Black Through Hole 35 Way Solder Termination 1-776231-1
Specifications
| Country of Origin | United States |
|---|---|
| Brand | TE Connectivity |
| Colour | Black |
| Current | 9.5A |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Brass |
| Series | Ampseal |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -20°C |
| Number of Rows | 3 |
| Contact Plating | Gold |
| Number of Contacts | 35 |
Key Features
- Designed for robust automotive and industrial applications.
- Rated for 9.5A current with three rows of pins.
- Constructed from polybutylene terephthalate housing with brass contacts and gold plating.
- Suitable operating temperature range from -20°C to 85°C.
- Features high resistance to vibration and shock.
- Through hole mount type ensures stable PCB connections.
- IP69K rated when mated for dust and water protection.
- Applicable for trucks, buses, construction, agriculture, marine and two-wheelers.
Product Description
TE Connectivity 1-776231-1 Ampseal Automotive Connector is a high-performance black connector designed with 35 way solder termination for through hole applications. It supports a current rating of 9.5A and features a rugged polybutylene terephthalate housing combined with brass contacts plated with gold for enhanced conductivity and corrosion resistance. Rated for operating temperatures between -20°C and 85°C, this connector excels in automotive, industrial, and harsh environment use cases.
These connectors are known for their exceptional durability, capable of withstanding high vibration, shock, and temperature conditions, making them ideal for applications in trucks, buses, construction machinery, agricultural equipment, marine vessels, and two-wheelers. Their IP69K rating when mated guarantees dust-tight sealing and resistance against high-pressure, high-temperature water jets, ensuring long-lasting performance even in challenging environments.
The 1-776231-1 model employs a silicone rubber sealing mechanism to maintain insulation resistance above 100 megaohms and withstand 250 Volts AC. The connector's three-row layout and through-hole mount provide secure mechanical and electrical connections on printed circuit boards. Manufactured in the United States, this connector meets stringent quality benchmarks.
Typical industrial applications include automotive wiring harnesses, off-road vehicle electrical systems, and emergency vehicles requiring reliable and rugged connectors. Its robust design ensures excellent performance in environments with high vibration and temperature fluctuations.
Designed for robust automotive and industrial applications. High current capacity of 9.5A with gold-plated brass contacts. Operating temperature range from -20°C to 85°C. IP69K rated sealing when mated for dust and water ingress protection.
Durable polybutylene terephthalate housing with silicone rubber sealing. Three-row through-hole mount design for reliable PCB connection. Ideal for trucks, buses, construction, agriculture, marine, and two-wheelers. Manufactured in the United States adhering to quality standards.
Explore more connectors from TE Connectivity in the Automotive Connector category at EnvMart to find suitable products for your industrial and automotive applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a current rating of 9.5A, making it suitable for various automotive and industrial applications.
The connector operates within a temperature range of -20°C to 85°C, allowing it to function effectively in diverse environments.
It features a total of 35 contacts, organized in a three-row layout for efficient connectivity.
The housing is made from polybutylene terephthalate, while the contacts are brass with gold plating for enhanced conductivity and corrosion resistance.
This model utilizes solder termination, which is suitable for through-hole mounting applications.
It is rated IP69K when mated, providing excellent protection against dust and high-pressure, high-temperature water jets.
It is applicable in trucks, buses, construction machinery, agricultural equipment, marine vessels, and two-wheelers, among other uses.
This connector features a through-hole mount type, ensuring stable connections on printed circuit boards.
It employs a silicone rubber sealing mechanism to maintain insulation resistance above 100 megaohms and withstand 250 Volts AC.
This connector is manufactured in the United States, adhering to stringent quality benchmarks.
The connector is black in color, which is typical for many automotive applications.
It is designed to withstand high levels of vibration and shock, making it suitable for rugged environments.
