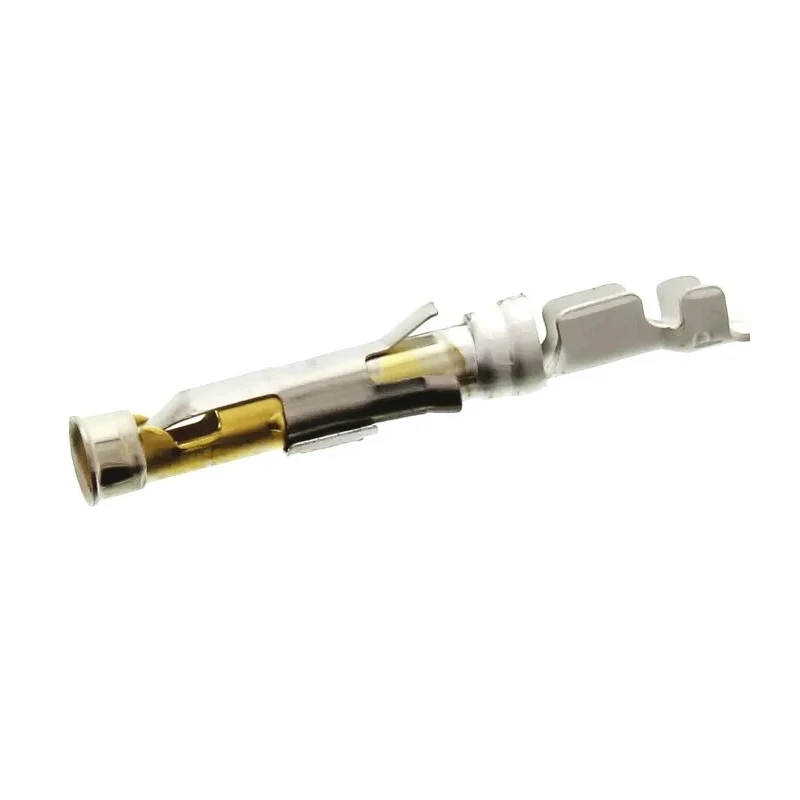

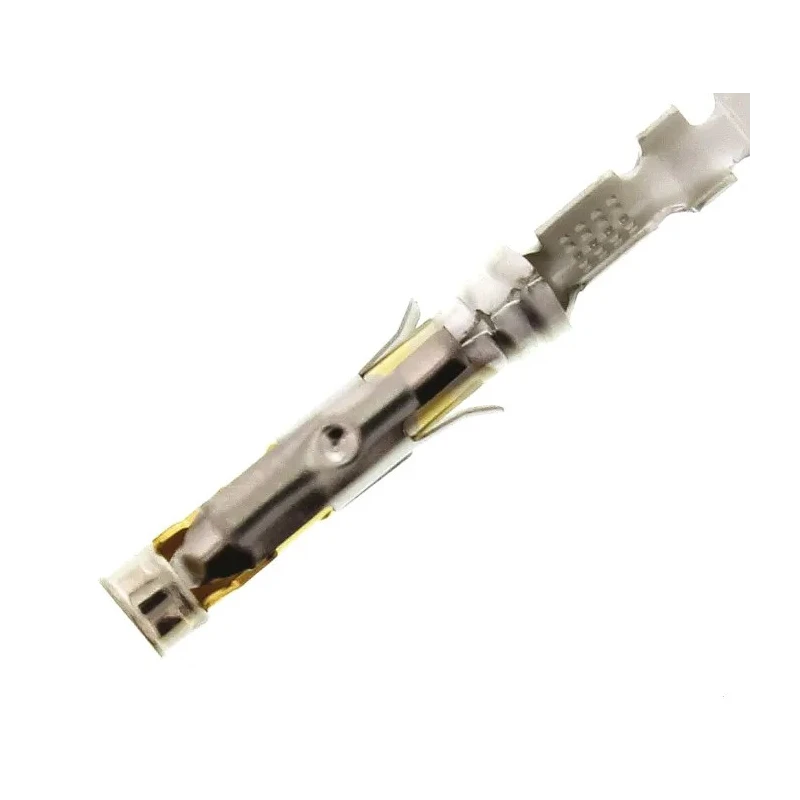

TE Connectivity Type III Series Female Crimp Terminal 24 AWG Min, 20 AWG Max, Gold Plated Brass, 13A Current 1-163087-1
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Current | 13A |
| Length | 25mm |
| Gender | Female |
| Contact Material | Brass |
| Series | Type III |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| For Use With | AMP Type III |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 0.5mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 20AWG |
| Maximum Contact Resistance | 3mΩ |
Key Features
- Designed for use with AMP Type III connectors ensuring compatibility.
- Supports 13 amp current capacity for stable performance.
- Gold plating on brass contact enhances corrosion resistance.
- Suitable for wire sizes ranging from 0.2 mm² (24 AWG) to 0.5 mm² (20 AWG).
- Crimp termination type provides secure and durable connections.
- Operating temperature ranges from -55°C to 125°C for versatile applications.
- Contact resistance is minimal at a maximum of 3 milliohms ensuring efficiency.
- Terminal length measures 25 millimeters for precise integration.
Product Description
TE Connectivity's 1-163087-1 model is a Type III Series Female Crimp Terminal engineered for high reliability and electrical performance. Specifically designed for AMP Type III connector systems, this crimp terminal supports wire gauges from 24 AWG (0.2 mm²) up to 20 AWG (0.5 mm²), making it suitable for diverse wiring requirements.
The terminal features a brass contact material plated with gold, ensuring excellent conductivity and resistance to corrosion, critical for long-term durability in electrical assemblies. With a maximum contact resistance of 3 milliohms, it maintains efficient electrical contact throughout its service life.
Rated for a current capacity of 13 amperes, this crimp terminal supports medium-power applications in industrial, electronics manufacturing, and other commercial uses. Its crimp termination approach guarantees secure mechanical retention and electrical continuity in demanding environments.
Designed to operate reliably within temperatures ranging from -55°C to 125°C, it covers a broad range of industrial and environmental conditions. The 25 mm length provides a compact form factor for PCB and wire housing connectors.
This Crimp Terminal does not carry any specific certification or approval but adheres to TE Connectivity’s quality standards for electrical components. It is part of the Series 1 contacts range, with compatible tooling and extraction devices available separately.
Designed for use with AMP Type III connectors ensuring compatibility. 13 amp current rating supports stable electrical performance. Gold plated brass contact enhances corrosion resistance and conductivity. Compatible with 24 AWG (0.2 mm²) to 20 AWG (0.5 mm²) wire sizes.
Low contact resistance of 3 milliohms ensures efficient connection. Crimp termination type provides secure mechanical and electrical connection. Operating temperature range of -55°C to 125°C suits varied applications. Compact 25 mm length for easy integration.
Ideal for industrial, electronics, electrical equipment wiring applications. Explore the TE Connectivity range of connectors and terminals at EnvMart for reliable, high-quality components tailored for industrial and electronic manufacturing sectors.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a current capacity of 13 amperes, making it suitable for medium-power applications.
This terminal is compatible with wire sizes ranging from 24 AWG (0.2 mm²) to 20 AWG (0.5 mm²).
The maximum contact resistance is 3 milliohms, ensuring efficient electrical connectivity.
It operates reliably within a temperature range of -55°C to 125°C, suitable for various environmental conditions.
The terminal measures 25 millimeters in length, allowing for precise integration in electrical assemblies.
It features a brass contact material that is gold plated, enhancing conductivity and corrosion resistance.
This terminal utilizes a crimp termination type, providing secure mechanical and electrical connections.
Yes, it is specifically designed for use with AMP Type III connector systems, ensuring compatibility.
It belongs to the Type III Series, which is part of TE Connectivity's range of connectors and terminals.
This model is a female crimp terminal, designed for specific applications in electrical assemblies.
The country of origin for this terminal is India.
This crimp terminal does not carry specific certifications but adheres to TE Connectivity’s quality standards for electrical components.
