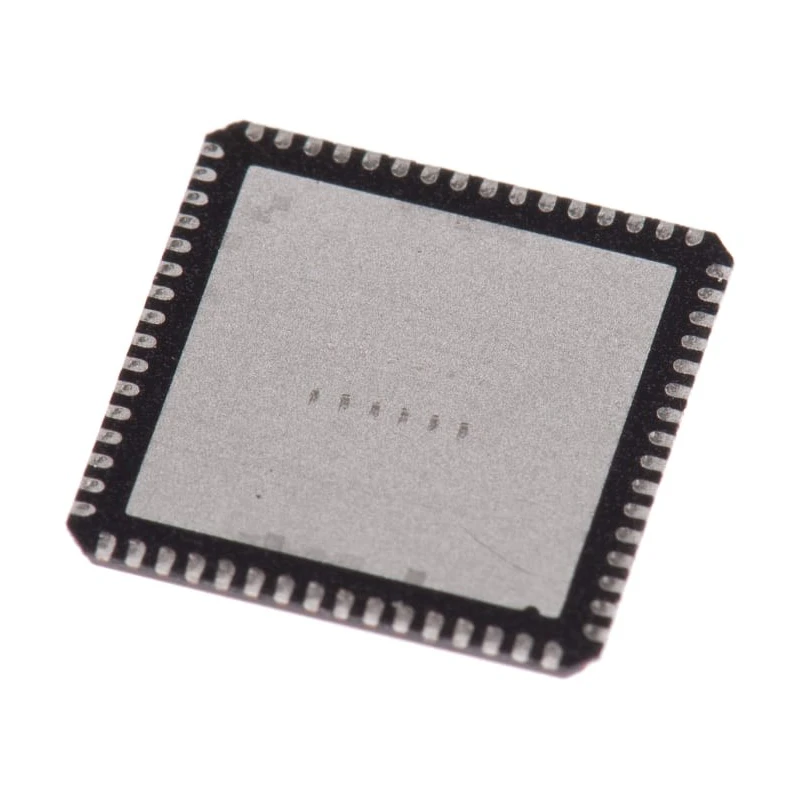

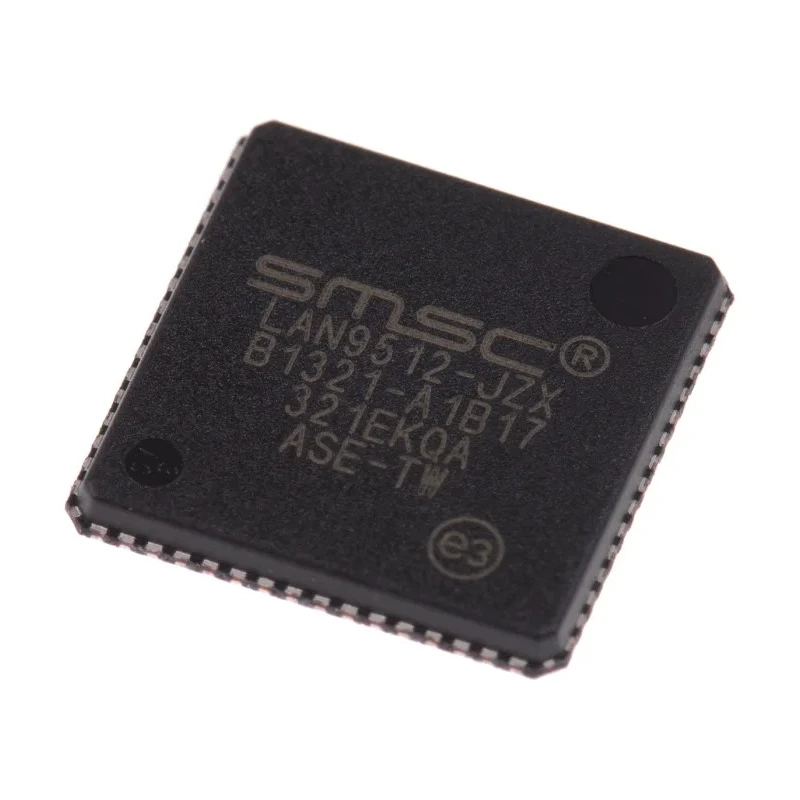

Microchip 64-Pin QFN Ethernet Controller 3.3 V 100 Mbps USB 2.0 Full Duplex/Half Duplex LAN9512-JZX

Free Delivery in India | Lowest Global Shipping Charges

Microchip 64-Pin QFN Ethernet Controller 3.3 V 100 Mbps USB 2.0 Full Duplex/Half Duplex LAN9512-JZX

Name: Microchip 64-Pin QFN Ethernet Controller 3.3 V 100 Mbps USB 2.0 Full Duplex/Half Duplex LAN9512-JZX
Brand: Microchip
SKU: 219522
Price: 7.93 USD
Availability: InStock



Category Ethernet Interface Ics Brand Microchip Condition New

Specifications

Country of Origin	India
Brand	Microchip
Height	1mm
Length	9mm
Model	LAN9512-JZX
Width	9mm
Mount Type	Surface
Number Of Ports	3
Maximum Operating Temperature	70°C
Package Type	QFN
Sub Type	Controller
Minimum Operating Temperature	0°C
Communication Mode	Full Duplex/Half Duplex
Interface Type	USB 2.0, Ethernet
Standards/Approvals	IEC61249-2-21, IEC61000-4-2, RoHS
Pin Count	64
Maximum Supply Voltage	3.3V
Supply Current	74mA
Maximum Data Rate	100Mbps
Standard Supported	IEEE 802.3u

Key Features

64-pin QFN package type provides compact surface mount integration.
Supports full duplex and half duplex Ethernet communication modes.
Operates reliably from 0°C to 70°C temperature range.
IEEE 802.3u standard compliant for Ethernet connectivity.
Designed with 3 ports to facilitate multiple connections.
Consistent supply voltage of 3.3 V and 74 mA supply current.
Complies with IEC61249-2-21, IEC61000-4-2 standards and RoHS compliant.

Product Description

Microchip LAN9512-JZX is a surface mount Ethernet controller housed in a 64-pin QFN package that supports USB 2.0 and Ethernet interfaces. It operates at a maximum supply voltage of 3.3 V with a supply current of 74 mA, ensuring efficient power use in embedded and networking applications.

This controller supports both full duplex and half duplex communication modes, in compliance with the IEEE 802.3u standard, delivering a maximum data rate of 100 Mbps. Its dimensions of 9 mm length, 9 mm width, and 1 mm height enable compact PCB designs.

The device is designed for robust industrial and commercial electronics applications and operates reliably within an ambient temperature range of 0°C to 70°C. It is compliant with IEC61249-2-21 and IEC61000-4-2 standards for quality and electrostatic discharge protection, and it meets RoHS standards ensuring environmental safety.

Featuring 3 ports, the LAN9512-JZX facilitates multi-connection setups on embedded platforms requiring Ethernet networking and USB data exchange. The QFN package eases manufacturing integration and soldering for surface mounting processes.

Compact 64-pin QFN package for surface mounting. Supports USB 2.0 and 10/100 Mbps Ethernet connectivity. Stable operation over 0°C to 70°C temperature range. Conforms to IEEE 802.3u Ethernet standard. Supply voltage at 3.3 V with 74 mA current consumption.

Industry standard compliant (IEC61249-2-21, IEC61000-4-2, RoHS). Ideal for embedded and industrial network interface implementations.

This Microchip Ethernet controller is suited for industrial, embedded, and commercial networking equipment design requiring USB and Ethernet integration. It offers reliable, energy-efficient performance with compact footprint for design flexibility. Browse the Electronics & Electricals section of EnvMart for related semiconductor interface solutions and networking components.
