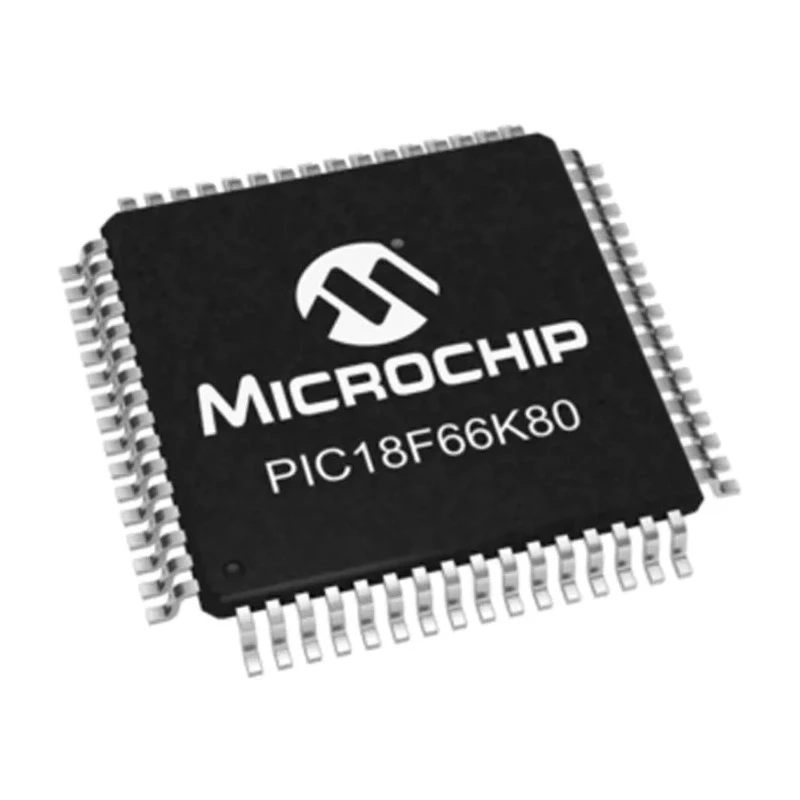

Microchip 8 bit PIC PIC18F Microcontroller 64 MHz 64kB FLASH 64-Pin TQFP PIC18F66K80-I/PT
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1mm |
| Length | 10mm |
| Model | PIC18F66K80-I/PT |
| Width | 10mm |
| Mount Type | Surface |
| Series | PIC18F |
| Maximum Operating Temperature | 85°C |
| Package Type | TQFP |
| Minimum Operating Temperature | -40°C |
| Ram size | 1kB |
| Pin Count | 64 |
| Maximum Supply Voltage | 5.5V |
| Maximum Power Dissipation Pd | 1W |
| Minimum Supply Voltage | 1.8V |
| Device Core | PIC |
| Program Memory Size | 64kB |
| Maximum Clock Frequency | 64MHz |
| Number of Programmable I/Os | 54 |
| Analogue Comparators | 2 |
| Maximum Expanded Memory Size | 8bit |
| Number of Timers | 5 |
| Instruction Set Architecture | RISC |
| ADCs | 11 x 12 Bit |
| Program Memory Type | FLASH |
Key Features
- Based on PIC18F series with 8-bit data bus width.
- Featuring 64 pins in a TQFP package suitable for surface mount.
- Offers 1kB RAM and 11 ADC channels with 12-bit resolution.
- Operating voltage range from 1.8V to 5.5V ensuring flexibility.
- Operating temperature range from -40°C to 85°C for industrial use.
- Contains 54 programmable I/Os and 5 timers for versatile control.
- Maximum power dissipation of 1 watt for low power consumption.
- Employs RISC instruction set architecture for efficient processing.
Product Description
Microchip PIC18F66K80-I/PT is an 8 bit PIC microcontroller from the widely used PIC18F family, designed for embedded system development. Operating at a maximum clock frequency of 64 MHz with 64kB FLASH program memory, it supports reliable and high-performance execution.
This microcontroller features a 64-pin Thin Quad Flat Package (TQFP), optimized for surface mount technology, offering compact and efficient PCB integration. It includes 1kB RAM, 54 programmable input/output ports, and 5 timers, making it suitable for complex control tasks in industrial and commercial electronics.
The device supports an operating voltage range between 1.8V and 5.5V with a maximum power dissipation of 1 watt, ensuring energy-efficient operation under varied environmental conditions. Its operating temperature range spans from -40°C to 85°C, allowing use in harsh industrial environments.
Additional embedded features include 11 analogue-to-digital converters (ADCs) with 12-bit resolution, and 2 analogue comparators, expanding its utility in precise sensing applications. Based on the Reduced Instruction Set Computing (RISC) architecture, this microcontroller guarantees fast instruction execution and reduced code size.
The program memory is flash type, providing robustness and the ability to reprogram the device multiple times, ideal for iterative development and firmware updates. The PIC18F66K80-I/PT is suited for a range of industrial, commercial, and consumer electronic applications, including automation, instrumentation, and sensor interfacing.
Based on PIC18F series with 8-bit data bus width. Featuring 64 pins in a TQFP package suitable for surface mount. Offers 1kB RAM and 11 ADC channels with 12-bit resolution. Operating voltage range from 1.8V to 5.5V ensuring flexibility.
Operating temperature range from -40°C to 85°C for industrial use. Contains 54 programmable I/Os and 5 timers for versatile control. Maximum power dissipation of 1 watt for low power consumption. Employs RISC instruction set architecture for efficient processing.
Includes 2 analogue comparators for application-specific measurements. Program memory is FLASH type for reprogramming and durability. Explore Microchip Microcontrollers and other semiconductor products on EnvMart for advanced industrial and embedded implementations.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this microcontroller is 64 MHz.
It operates within a voltage range of 1.8V to 5.5V.
This model features 54 programmable input/output ports.
It has a program memory size of 64kB.
The PIC18F66K80-I/PT is packaged in a Thin Quad Flat Package (TQFP).
The operating temperature range is from -40°C to 85°C.
This microcontroller includes 1kB of RAM.
It features 11 analogue-to-digital converters (ADCs) with 12-bit resolution.
The maximum power dissipation is 1 watt.
This model includes 5 timers for versatile control.
It employs a Reduced Instruction Set Computing (RISC) architecture.
The dimensions are 10mm in length, 10mm in width, and 1mm in height.
