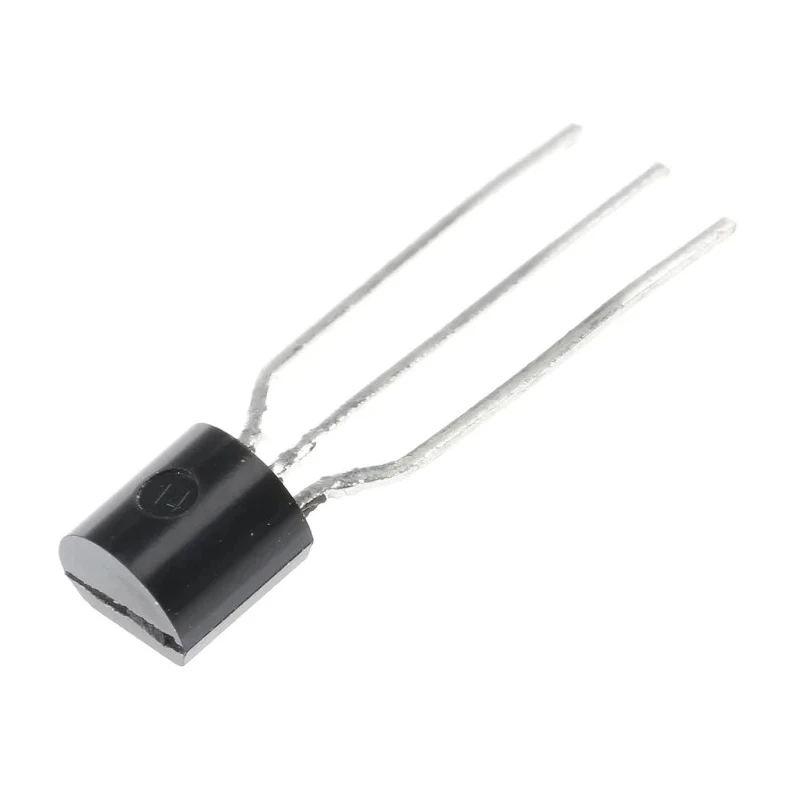

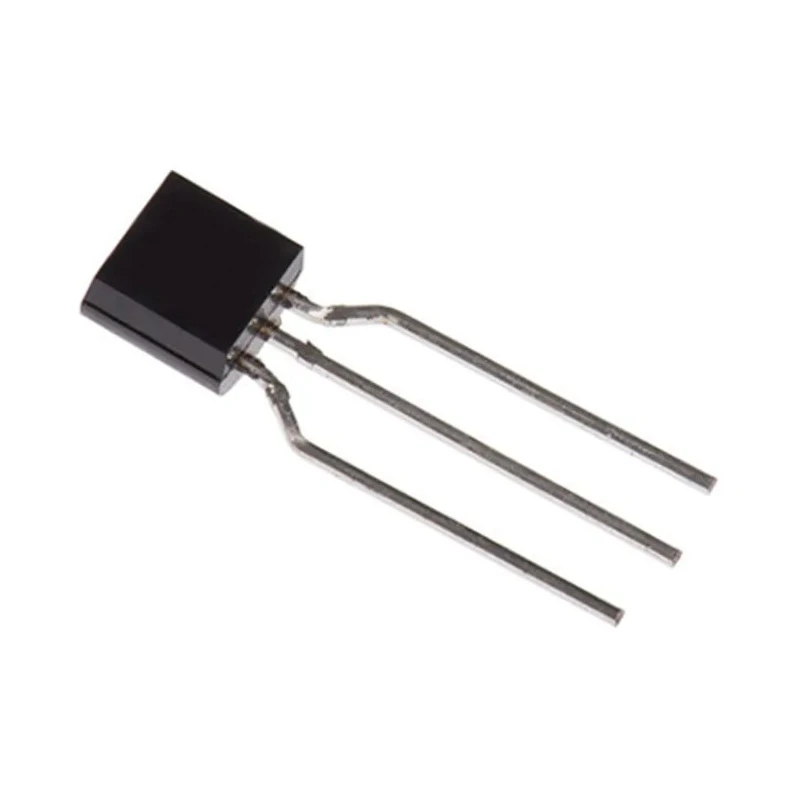

STMicroelectronics Adjustable Shunt Voltage Reference ±1% Accuracy 3-Pin TO-92 Package TL431ACZ-AP

Free Delivery in India | Lowest Global Shipping Charges

STMicroelectronics Adjustable Shunt Voltage Reference ±1% Accuracy 3-Pin TO-92 Package TL431ACZ-AP

Name: STMicroelectronics Adjustable Shunt Voltage Reference ±1% Accuracy 3-Pin TO-92 Package TL431ACZ-AP
Brand: STMicroelectronics
SKU: 219359
Price: 0.14 USD
Availability: InStock



Category Voltage References Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Brand	STMicroelectronics
Height	5mm
Length	5mm
Model	TL431ACZ-AP
Mount Type	Through Hole
Output type	Adjustable
Series	TL431
Output Current	100mA
Topology	Shunt
Maximum Operating Temperature	70°C
Package Type	TO-92
Minimum Operating Temperature	0°C
Reference Type	Adjustable
Maximum Input Voltage	37V
Minimum Input Voltage	2.47V
Pin Count	3
Automotive Standard	AEC-Q100
Reference Voltage	2.5V
Initial Accuracy	±1 %

Key Features

The device features adjustable output voltage with a reference voltage of 2.5V.
It supports an output current up to 100mA for reliable shunt regulation applications.
Its operating temperature range spans from 0°C to 70°C, suitable for general purpose environments.
The maximum input voltage rating is 37V with a minimum input voltage of 2.47V.
Designed for through-hole mounting, it ensures easy installation on PCBs.
The TO-92 package measures 5mm in length and height, providing a small footprint for compact designs.
Complies with automotive standard AEC-Q100, ensuring quality for automotive systems.
This voltage reference uses a shunt topology ideal for power management and precise voltage regulation in industrial circuits.

Product Description

STMicroelectronics TL431ACZ-AP is an adjustable shunt voltage reference offering ±1% initial accuracy in a compact 3-pin TO-92 package, designed for through-hole mounting and industrial, automotive, and general-purpose electrical circuits.

This device provides a stable reference voltage of 2.5V with adjustable output voltage, supporting an output current of up to 100mA and input voltage up to 37V, ensuring precise voltage regulation even under varying load conditions.

The operating temperature range from 0°C to 70°C allows reliable performance in a variety of application environments including automotive electronics and power management ICs.

Its shunt topology is ideal for applications such as voltage regulators, power supplies, and measurement instrumentation requiring reliable Voltage References. The small TO-92 package with dimensions of 5mm by 5mm makes it suitable for compact electronic designs.

The device features adjustable output voltage with a reference voltage of 2.5V. Its operating temperature range from 0°C to 70°C suits diverse operating environments. Supports output current up to 100mA suitable for shunt voltage regulation.

With a maximum input voltage of 37V, it accommodates a wide voltage range. Compact TO-92 package dimensions enable space-efficient PCB layouts. Automotive standard AEC-Q100 certification highlights suitability for automotive electronic circuits.

Through-hole mount type supports easy prototyping and assembly. This voltage reference is highly reliable for industrial applications, power management circuits, and automotive electrical systems where precision and robustness are critical.

EnvMart offers this STMicroelectronics component as a new product with extensive technical support and availability.
