AAVID THERMALLOY Heatsink for Power Semiconductors Black Anodised 50 mm x 150 mm x 27 mm 2.46°C/W THE MAX CLIP 0S506/150/B

Free Delivery in India | Lowest Global Shipping Charges

AAVID THERMALLOY Heatsink for Power Semiconductors Black Anodised 50 mm x 150 mm x 27 mm 2.46°C/W THE MAX CLIP 0S506/150/B

Name: AAVID THERMALLOY Heatsink for Power Semiconductors Black Anodised 50 mm x 150 mm x 27 mm 2.46°C/W THE MAX CLIP 0S506/150/B
Brand: Aavid Thermalloy
SKU: 218867
Price: 22.9 USD
Availability: InStock



Category Power Semiconductor Brand Aavid Thermalloy Condition New

Specifications

Country of Origin	India
Brand	AAVID THERMALLOY
Material	Nickel Plated, Special Spring Steel
Colour	Black
Height	50mm
Length	150mm
Model	0S506/150/B
Finish	Black Anodised
Width	27mm
Series	THE MAX CLIP SYSTEM
Thermal Resistance	2.46°C/W
For Use With	Power Semiconductors
Standards/Approvals	U.S. Patent 5.991.151
Fastening	Clip
Compatible Package Type	TO-220, Max220, TO-247, Max247, TO-247J, TO-0218

Key Features

Designed specifically for power semiconductors ensuring optimal heat dissipation.
Compact dimensions of 50 mm height, 150 mm length, and 27 mm width suit various applications.
Features a reliable clip mounting system replacing traditional fasteners for ease of use.
Constructed from nickel plated special spring steel for durability and long service life.
Comes with a black anodised finish providing corrosion resistance and superior appearance.
Compatible with TO-220, TO-247, and other related semiconductor package types.
Protected under U.S. Patent 5.991.151 highlighting innovative clip technology.
Part of THE MAX CLIP SYSTEM series ensuring high reliability and manufacturing benefits.

Product Description

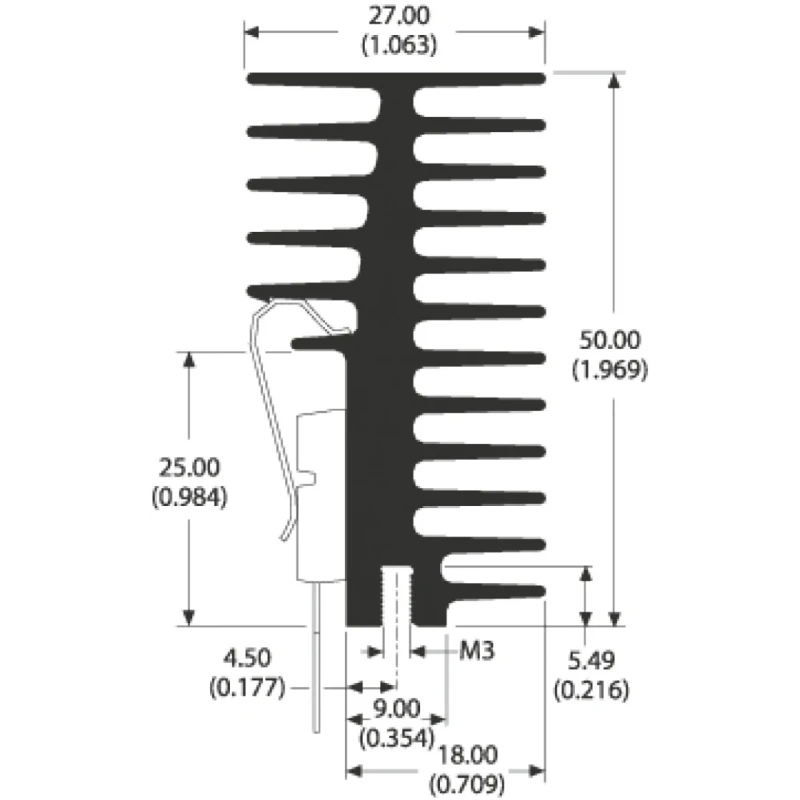

AAVID THERMALLOY 0S506/150/B heatsink is engineered for power semiconductor thermal management, providing a thermal resistance of 2.46°C/W. With dimensions of 50 mm height, 150 mm length, and 27 mm width, it is designed to accommodate various semiconductor packages including TO-220, TO-247, Max220, Max247, TO-247J, and TO-0218.

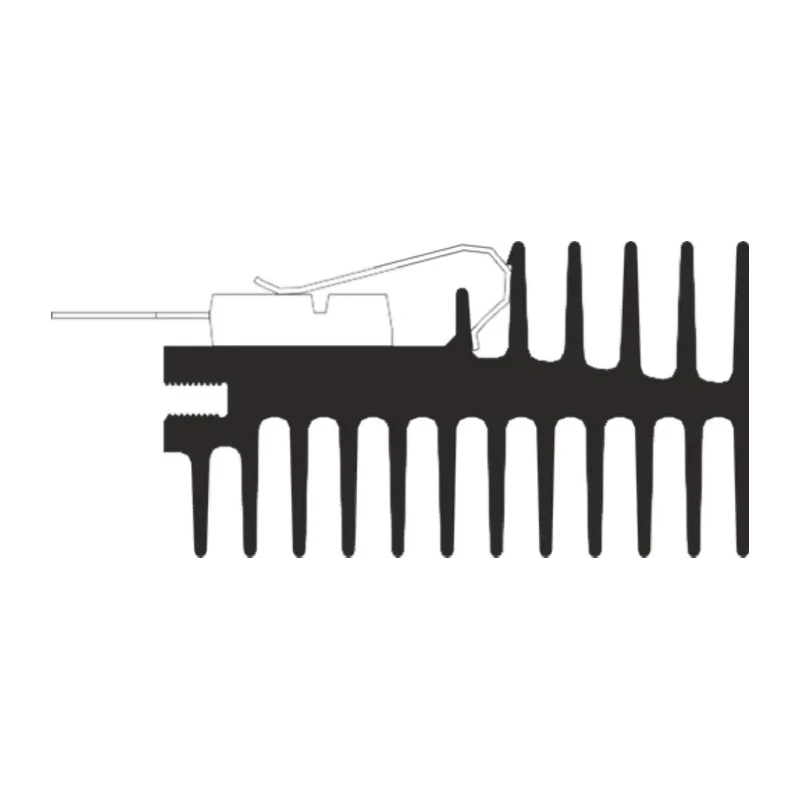

Constructed from nickel plated special spring steel, this heatsink features a black anodised finish that ensures corrosion resistance and aesthetic appeal. It incorporates the patented Max Clip System™ OS506 Profile clip technology (U.S. Patent 5.991.151), providing a simplified, rapid, and secure assembly method that replaces traditional rivets and screws.

The clip fastening mechanism offers high reliability and manufacturing efficiency with the ability to mount semiconductors quickly and securely. This design enhances thermal performance especially when used in conjunction with special thermal interface materials. The heatsink is ideal for applications demanding efficient heat dissipation such as industrial power electronics, HVAC systems, manufacturing equipment, and other commercial electronic cooling solutions.

Efficient thermal management for power semiconductors with 2.46°C/W thermal resistance. Dimensions: Height 50 mm, Length 150 mm, Width 27 mm. Reliable clip fastening system for rapid and secure mounting of semiconductors.

Durable nickel plated special spring steel construction. Black anodised finish providing corrosion resistance. Compatible with multiple semiconductor package types including TO-220 and TO-247 variants. Innovative design protected by U.S. Patent 5.991.151.

Part of THE MAX CLIP SYSTEM series for high performance and manufacturing benefits.

This heatsink is suitable for industrial, manufacturing, HVAC, and commercial electronics applications requiring reliable Power Semiconductor cooling. Browse the EnvMart heatsink category for compatible products and accessories.
