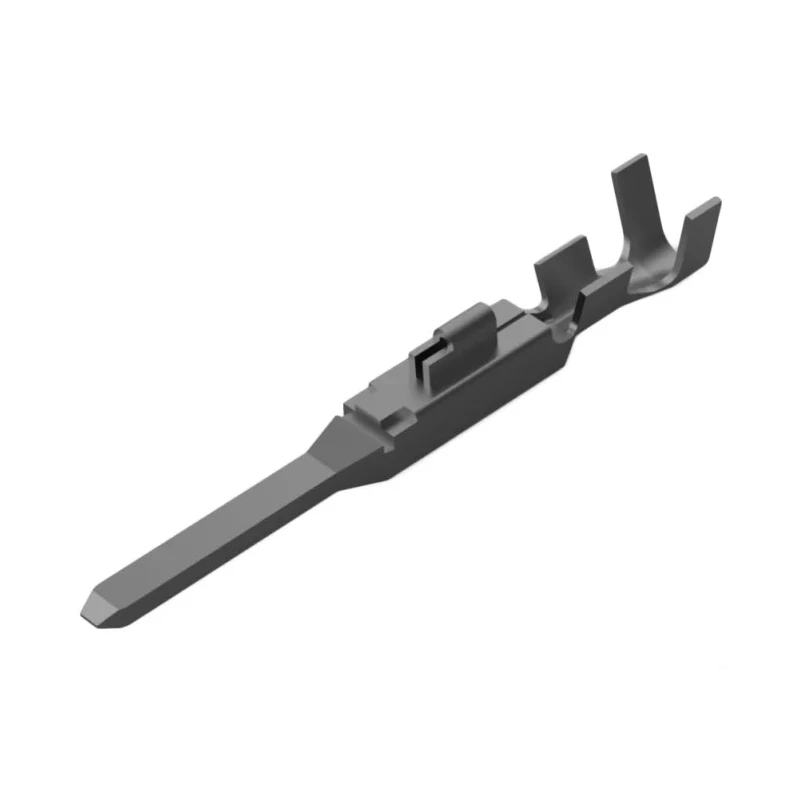

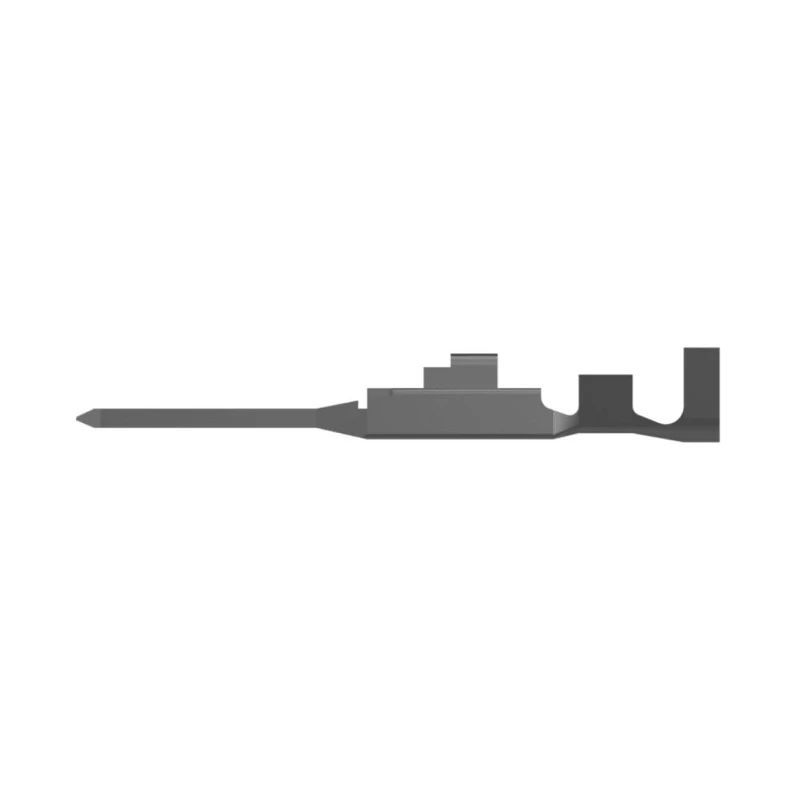

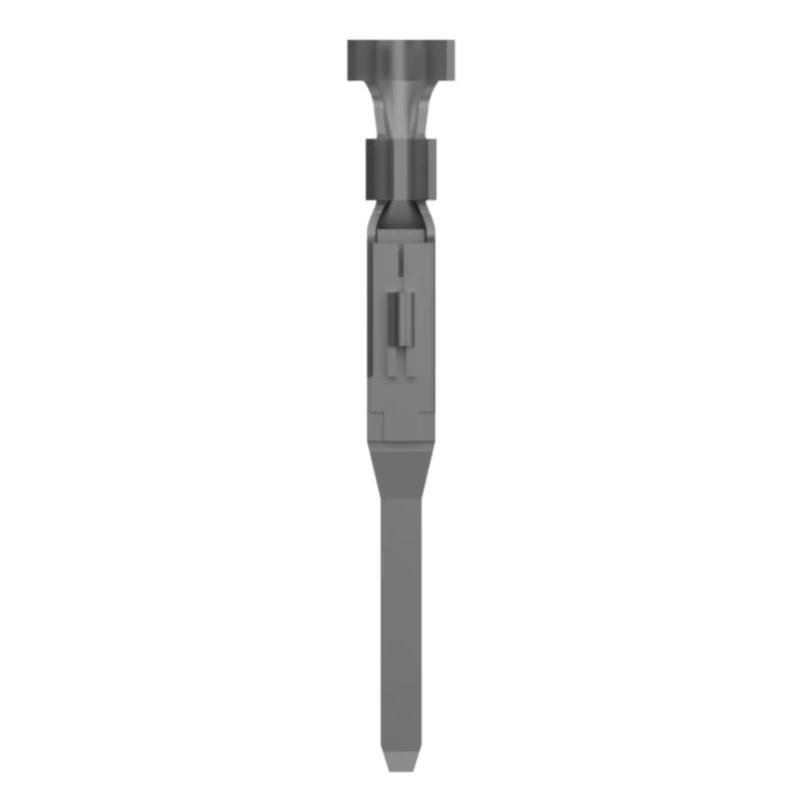

TE Connectivity AMP Universal Power Series Male Crimp Terminal, 26 AWG Min Crimp, 22 AWG Max, 12A Current, Tin 175149-1

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity AMP Universal Power Series Male Crimp Terminal, 26 AWG Min Crimp, 22 AWG Max, 12A Current, Tin 175149-1

Name: TE Connectivity AMP Universal Power Series Male Crimp Terminal, 26 AWG Min Crimp, 22 AWG Max, 12A Current, Tin 175149-1
Brand: TE Connectivity
SKU: 218618
Price: 0.12 USD
Availability: InStock



Category Power Connector Brand TE Connectivity Condition New

Specifications

Country of Origin	Japan
Brand	TE Connectivity
Current	12A
Model	175149-1
Gender	Male
Contact Material	Copper Alloy
Series	AMP Universal Power
Termination Type	Crimp
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-30°C
For Use With	AMP Universal Power Connector Housing
Contact Plating	Tin
Minimum Wire Size mm²	0.1mm²
Maximum Wire Size mm²	0.35mm²
Minimum Wire Size AWG	26AWG
Maximum Wire Size AWG	22AWG
Maximum Contact Resistance	20mΩ

Key Features

Constructed from tin-plated copper alloy for reliable conductivity.
Compatible with AMP Universal Power Connector Housing for secure connections.
Supports wire sizes ranging from 26 AWG (0.1 mm²) to 22 AWG (0.35 mm²).
Maximum contact resistance is 20 milliohms to ensure efficient power transmission.
Operates reliably within a temperature range from -30°C to 105°C.
Termination type is crimp, facilitating quick and robust wire attachment.
Designed for applications requiring 12A current carrying capacity.
Manufactured in Japan with high-quality standards.

Product Description

TE Connectivity 175149-1 AMP Universal Power Series Male Crimp Terminal is engineered for dependable electrical connectivity in various industrial and electronic applications. This crimp terminal accommodates wire sizes from 26 AWG minimum to 22 AWG maximum, supporting currents up to 12A. Its copper alloy contact material, coupled with tin plating, ensures excellent electrical conductivity and corrosion resistance, suitable for demanding power connector requirements.

Designed to be used with the AMP Universal Power Connector Housing, it provides a secure and efficient connection solution in assembly lines, electronics manufacturing, and power distribution systems. The termination is a reliable crimp type, allowing for swift assembly with consistent performance.

This terminal supports operation in harsh environments with a wide temperature tolerance of -30°C to 105°C, meeting rigorous industrial standards. Its low maximum contact resistance of 20 mΩ aids in minimizing power loss and heat generation during operation.

Constructed from tin-plated copper alloy for enhanced durability and conductivity. Compatible with AMP Universal Power Connector Housing for seamless integration. Supports wire gauge sizes from 26 AWG (minimum) to 22 AWG (maximum).

Ensures maximum contact resistance of 20 milliohms for efficient current flow. Suitable for operating temperatures ranging from -30°C to 105°C. Crimp termination type for secure and reliable electrical connections. Current rating of 12 amperes for moderate power requirements.

Manufactured in Japan with strict quality control.

This male crimp terminal is ideal for use in electronic components assembly, power connectors manufacturing, and other industrial applications requiring robust and efficient power contacts. TE Connectivity's Universal Power Series is known for reliable, standardized electrical connection components, making this terminal a versatile choice for engineers and technicians.
