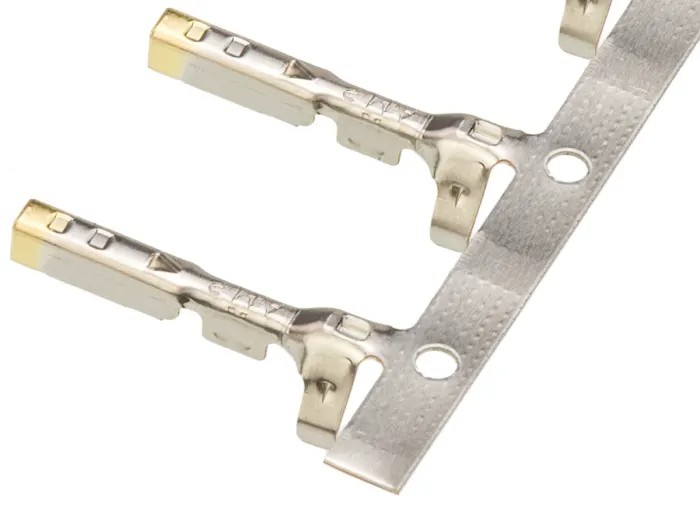

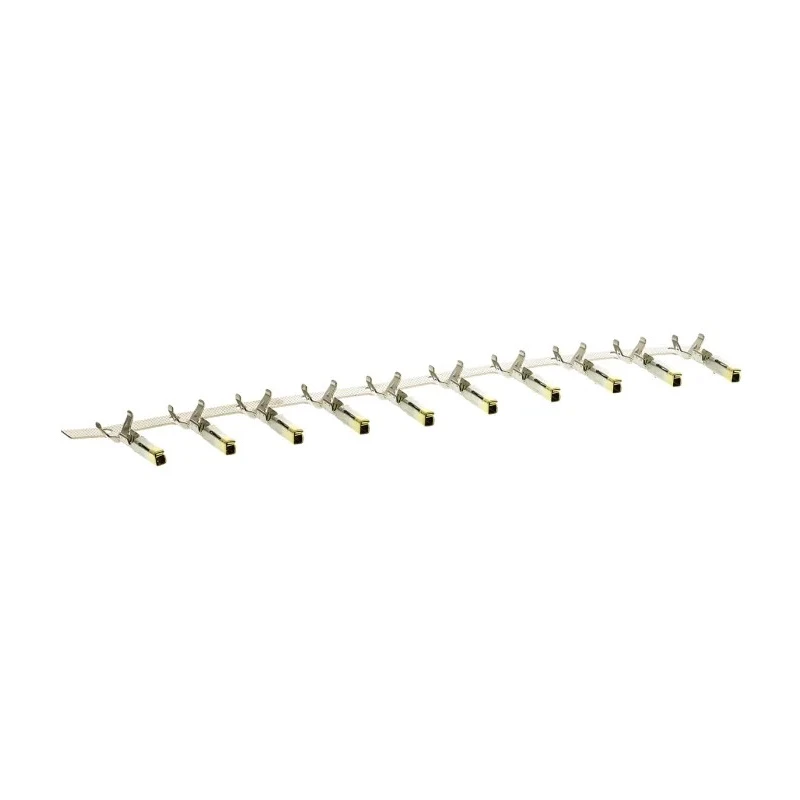

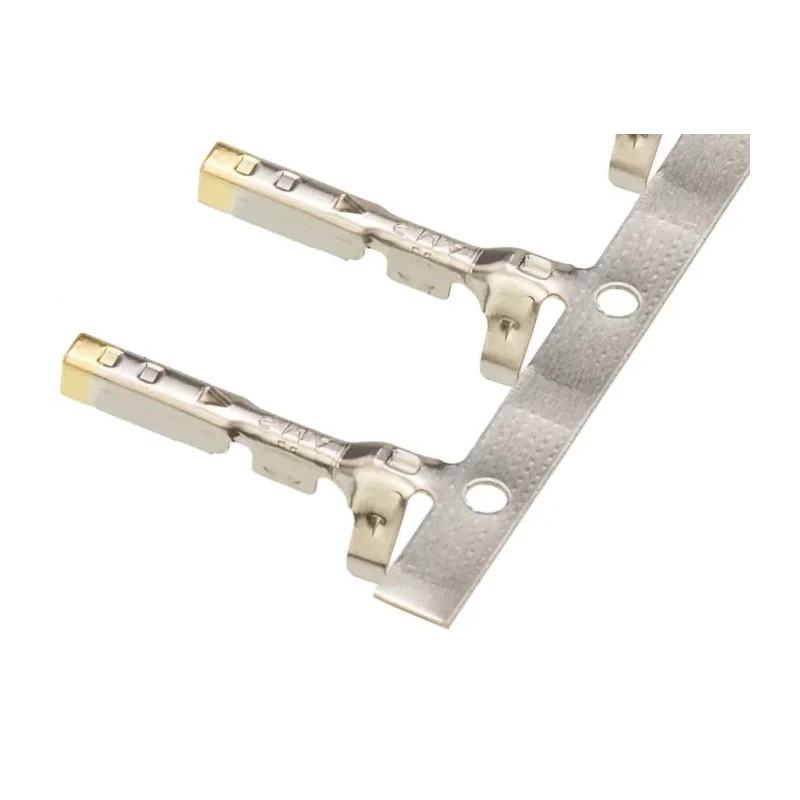

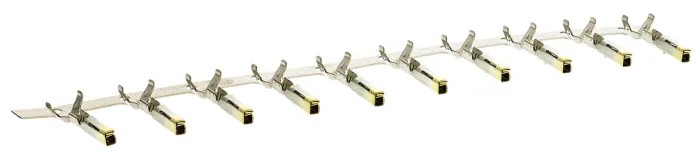

TE Connectivity MULTILOCK 040 Series Female Crimp Terminal 22 AWG Min, 20 AWG Max, Gold Plating, Phosphor Bronze 173681-2
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Operating Temperature | -30 - 105 °C |
| Current | 5A |
| Length | 14.2mm |
| Model | 173681-2 |
| Gender | Female |
| Contact Material | Phosphor Bronze |
| Current Rating | 15A |
| Series | MULTILOCK 040 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -30°C |
| For Use With | MULTILOCK 040 Connector Housing |
| Contact Plating | Gold |
| Minimum Wire Size mm² | 0.3mm² |
| Maximum Wire Size mm² | 0.6mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 20AWG |
| Maximum Contact Resistance | 20mΩ |
| Low level resistance | 10 mΩ max (initial) |
| Overall resistance | 20 mΩ max (final) |
Key Features
- Designed for MULTILOCK 040 Connector Housing compatibility.
- Suitable for wire sizes between 22 AWG minimum and 20 AWG maximum.
- Phosphor Bronze contact material with gold plating for corrosion resistance.
- Rated current capacity of 5 A with low contact resistance ensuring optimal conductivity.
- Operating temperature range from -30°C to 105°C for various environments.
- Crimp termination style provides solid cable connections for automation applications.
- Compact 14.2 mm length enabling use in dense connector assemblies.
- Snap-in fixing contact suitable for secure wire-to-wire and wire-to-board connections.
Product Description
TE Connectivity 173681-2 MULTILOCK 040 Series Female Crimp Terminal is designed for robust and reliable wire termination in electronic assemblies. Manufactured using phosphor bronze with gold plating, it ensures excellent conductivity and corrosion resistance suitable for demanding industrial applications.
The crimp terminal supports wire sizes ranging from 22 AWG to 20 AWG, making it versatile for use in automotive, automation, and general industrial signal transfer applications. It features a current rating of 5 amps and withstands operating temperatures from -30°C up to 105°C, allowing dependable operation across harsh environmental conditions.
With a compact length of 14.2 mm and snap-in fixing design, the terminal facilitates quick and secure assembly into MULTILOCK 040 connector housings. This miniature high-density connector system is ideal for wire-to-wire and wire-to-board connections with 2.5 mm contact centers, commonly used in automotive and industrial automation sectors.
The terminal's low contact resistance (max 20 mΩ final) ensures minimal signal degradation while maintaining electrical integrity in critical control systems. The crimp termination provides a mechanical and electrical bond with cable harnesses suitable for assembly lines and efficient mass production.
Compatible with MULTILOCK 040 connector housing series for wire connections. Gold-plated phosphor bronze contacts guarantee durability and conductivity. Rated for 5A current with resistance optimized for low signal loss.
Operates reliably within a temperature range of -30°C to 105°C. Compact size and snap-in design optimize space and assembly speed. Widely applied in automotive, industrial automation, and electronics manufacturing. Supports wire gauge sizes from 22 AWG to 20 AWG for flexible cable use.
This high-quality crimp terminal is an essential component for industrial and automotive wiring assemblies, ensuring secure electrical connections. Explore more connectors and Crimp Contacts by TE Connectivity at EnvMart for diverse industrial and electronic applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The operating temperature range for this model is from -30°C to 105°C, allowing it to function reliably in various environmental conditions.
This crimp terminal supports wire sizes ranging from 22 AWG minimum to 20 AWG maximum, making it versatile for different applications.
It has a current rating of 5A, ensuring it can handle appropriate electrical loads in applications.
The contact material is phosphor bronze with gold plating, providing excellent conductivity and corrosion resistance.
The terminal has a compact length of 14.2 mm, which is suitable for use in dense connector assemblies.
The snap-in fixing design allows for quick and secure assembly into MULTILOCK 040 connector housings, facilitating efficient installation.
The maximum contact resistance is 20 mΩ, ensuring minimal signal degradation and maintaining electrical integrity.
This terminal is commonly used in automotive, industrial automation, and electronics manufacturing for reliable wire connections.
It uses a crimp termination style, providing a solid mechanical and electrical bond with cable harnesses.
The gold plating on the contacts enhances corrosion resistance and ensures optimal conductivity in electrical connections.
Yes, it is designed for automation applications, providing secure and reliable connections for various electronic assemblies.
This crimp terminal is female, designed to fit into compatible MULTILOCK 040 connector housings.
