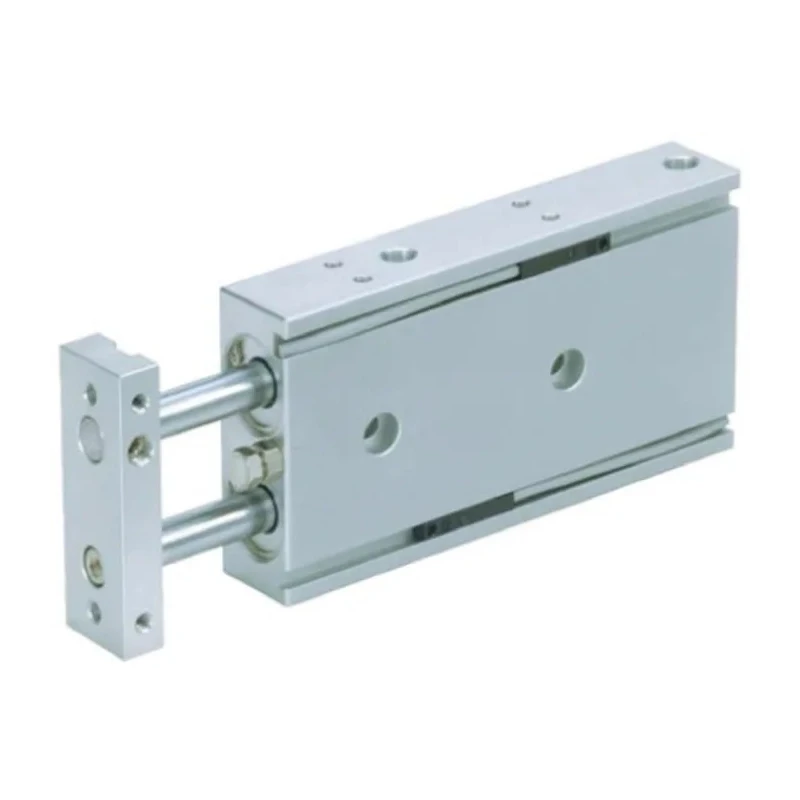

SMC Pneumatic Guided Cylinder 15mm Bore Surface Mount Double Acting Aluminium Alloy Body 0.7 Mpa CXSL15-50
Specifications
| Country of Origin | China |
|---|---|
| Brand | SMC |
| Body Material | Aluminium Alloy |
| Maximum Operating Pressure | 0.7 Mpa |
| Height | 20mm |
| Length | 129mm |
| Model | CXSL15-50 |
| Gross Weight | 380g |
| Width | 58mm |
| Mount Type | Surface |
| Series | CXS |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -10°C |
| Stroke Length | 50mm |
| Bore Diameter | 15mm |
| Rod Type | Double |
| Action Type | Double Acting |
| Cushioning Type | Rubber |
| Guide Type | Ball Bearing |
| Piston Rod Thread Size | M3 |
Key Features
- Constructed with a durable aluminium alloy body for lightweight and corrosion resistance.
- Designed for operating pressures up to 0.7 Mpa with rubber cushioning.
- Equipped with double rod type and ball bearing guide for precise non-rotational accuracy.
- Capable of piston speeds up to 800 mm/s ensuring smooth high-speed operation.
- Operates reliably within temperature range -10°C to 60°C for diverse industrial environments.
- Includes M3 piston rod thread size suitable for standard fittings.
- Manufactured in China, conforming to industry standards without specific approvals.
Product Description
SMC CXSL15-50 Pneumatic Guided Cylinder is designed for precise pick-and-place applications requiring reliable double acting pneumatic operation. Featuring a 15mm bore diameter and 50mm stroke length, this cylinder integrates a lightweight aluminium alloy body that offers excellent corrosion resistance and mechanical strength.
This cylinder is surface mounted and utilizes ball bearing guides to provide high non-rotational accuracy and smooth linear movement. The dual-rod design enhances stability and load capacity during operation.
Engineered to operate efficiently at a maximum pressure of 0.7 Mpa with rubber cushioning to absorb shock and provide quiet operation. It supports piston speeds up to 800 mm/s and functions within an ambient temperature range from -10°C to 60°C, making it versatile for industrial, manufacturing, automation, and fluid power applications.
The integral stroke adjustment feature allows setting the effective stroke length to standard stroke minus 5mm. It includes provisions for magnetic sensor mounting with an embedded recess for auto switches to facilitate position sensing in automated systems.
Compact dimensions (129 mm length, 58 mm width, 20 mm height) make it suitable for installation in tight assembly lines or machinery. The piston rod thread size is M3, compatible with common pneumatic tooling interfaces.
Durable aluminium alloy body and components ensure longevity. Designed for high precision Pneumatic Guided Cylinder applications. Suitable for industries requiring automated pneumatic motion control. Supports standard magnetic sensor fittings for position detection.
Ideal for manufacturing, packaging, robotics, and fluid power automation.
This product is manufactured in China maintaining quality standards expected by industrial users. Explore more pneumatic cylinders and accessories in the Hydraulics & Pneumatics category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of the SMC Pneumatic Guided Cylinder CXSL15-50 is 0.7 Mpa.
This model features a bore diameter of 15mm.
The stroke length of the CXSL15-50 is 50mm.
The dimensions of this pneumatic cylinder are 129mm in length, 58mm in width, and 20mm in height.
It utilizes rubber cushioning to absorb shock and provide quiet operation.
The operating temperature range for this model is from -10°C to 60°C.
The gross weight of the SMC CXSL15-50 is 380g.
This cylinder features a ball bearing guide for high non-rotational accuracy.
The piston rod thread size for this model is M3, suitable for standard fittings.
This model is designed for precise pick-and-place applications in manufacturing, packaging, robotics, and fluid power automation.
The dual-rod design enhances stability and load capacity during operation, ensuring smooth linear movement.
Yes, it includes provisions for magnetic sensor mounting to facilitate position sensing in automated systems.
