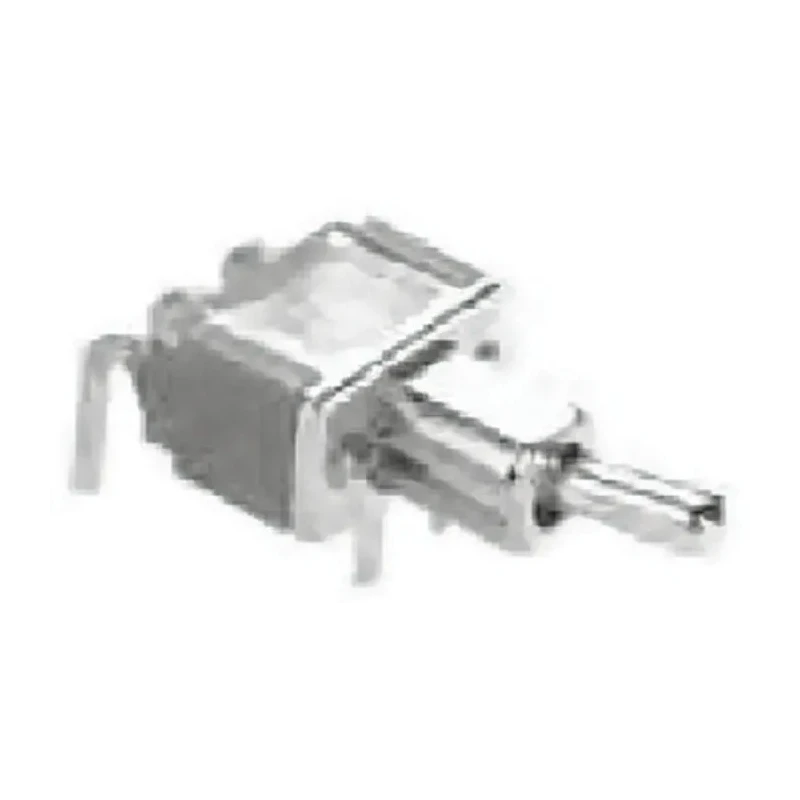

TE Connectivity Toggle Switch PCB Mount On-On SPDT 5A 28V DC 115V AC 1-1825136-3

TE Connectivity 1-1825136-3 Toggle Switch PCB Mount On-On SPDT is engineered for reliable electrical switching applications in industrial and electronic assemblies. It features a single pole double throw (SPDT) contact configuration allowing users to switch between two circuits effectively.

This switch operates with an On-On mechanism providing two stable on positions and is designed for through-hole PCB mounting, facilitating secure and durable installation in printed circuit boards.

The switch carries a contact current rating of 5A, suitable for moderate power applications. Its actuator, made from robust phenolic material, measures 6.86 mm in length, providing precise mechanical feedback. It complies with IP67 standards, ensuring protection against dust ingress and water immersion, making it ideal for harsh and demanding environments.

Operating voltages are rated at 28V DC and 115V AC, suitable for a range of electronic and electrical devices. The operating temperature range from -30°C to 85°C allows this toggle switch to perform reliably under extreme temperature conditions commonly encountered in industrial settings.

This product meets RoHS compliance, highlighting its environmentally friendly design and manufacturing process. The epoxy sealed terminals and stainless steel frame with tin-plated brass solder support enhance the switch’s durability and longevity.

SPDT contact configuration allows versatile circuit control. On-On switch operation ensures stable switching states. Rated current capacity of 5A for efficient power handling. Designed for PCB mounting with through-hole terminals.

IP67 rated for dust and water ingress protection. Actuator length of 6.86 mm for precise mechanical action. Supports 28V DC and 115V AC operating voltages. Phenolic actuator material ensures durability and heat resistance.

Operating temperature range from -30°C to 85°C suits industrial environments. Compliant with RoHS standards ensuring environmental safety.

This toggle switch is ideal for use in electrical automation, electronics manufacturing, industrial controls, and other applications requiring robust, reliable manual switching. Its compact PCB mount design facilitates efficient assembly and integration into equipment.
