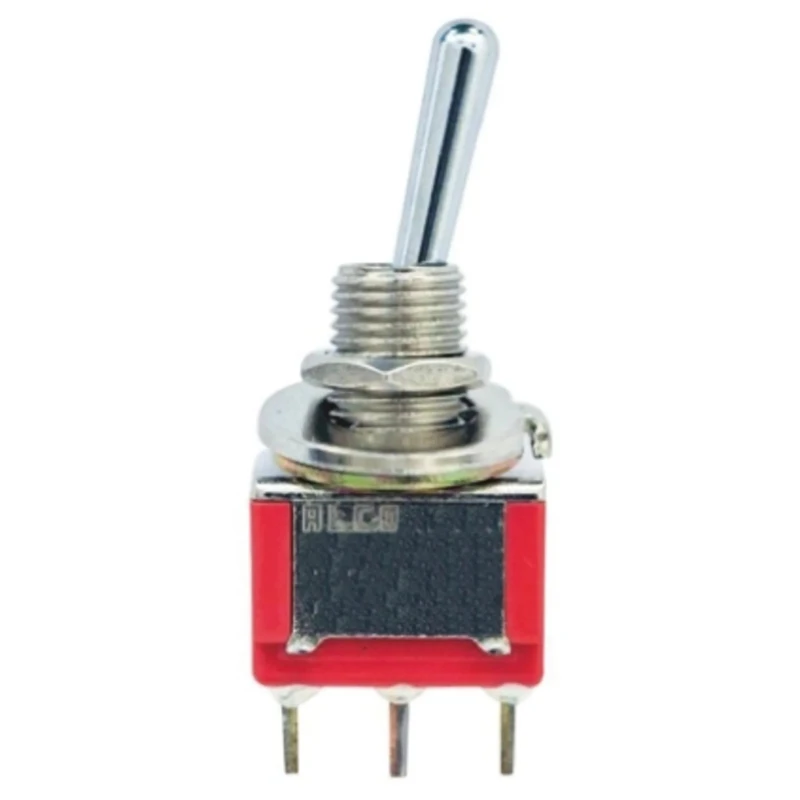

TE Connectivity Toggle Switch PCB Mount On-Off-On SPDT Through Hole Terminal 28 V dc 115 V ac 5-1825137-0
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Height | 0.35in |
| Length | 0.5in |
| IP Rating | IP67 |
| Width | 0.27in |
| Mount Type | PCB |
| Series | Gemini A |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Switch Configuration | On-Off-(On) |
| Minimum Operating Temperature | -30°C |
| Panel Cutout Size | 6.35 mm |
| Terminal type | Through Hole |
| Standards/Approvals | RoHS |
| Switch Operation | On-Off-On |
| Actuator Length | 10.41mm |
| Contact DC Voltage | 28V dc |
| Switch Contact Current | 400mA |
| Contact AC Voltage | 115V ac |
| Actuator Material | Phenolic |
Key Features
- Single Pole Double Throw (SPDT) contact configuration suitable for versatile applications.
- On-Off-On switch operation with on-off-(on) configuration for precise control.
- Mount type designed for PCB installation with through hole terminals.
- Rated for contact voltages of 28 V dc and 115 V ac ensuring compatibility with low voltage circuits.
- Current rating of 400mA supports moderate current loads effectively.
- IP67 rated for protection against dust and temporary immersion in water.
- Constructed with a phenolic actuator material for durability and heat resistance.
- Epoxy sealed terminals with stainless steel frame and brass tin plated solder support.
Product Description
TE Connectivity 5-1825137-0 Toggle Switch is a robust PCB mount toggle switch featuring On-Off-On switch operation and a Single Pole Double Throw (SPDT) contact configuration. It is engineered for both DC and AC applications with ratings of 28 V dc and 115 V ac respectively. This toggle switch is equipped with through hole terminals facilitating secure PCB mounting and an epoxy sealed terminal design to enhance reliability.
The switch actuator is made from phenolic material, offering excellent resistance to heat and mechanical wear. The stainless steel frame combined with brass tin plated solder support offers enhanced durability for industrial and commercial use. The compact size of this switch with height of 0.35 inches, length of 0.5 inches, and width of 0.27 inches allows for integration into tight PCB layouts.
It is rated IP67 providing protection from dust ingress and water immersion, making it suitable for use in demanding environments. The switch can handle a contact current of 400mA, making it ideal for low to moderate current switching applications. The operating temperature range from -30°C to 85°C ensures stable operation across diverse ambient conditions.
Single Pole Double Throw contact configuration for versatile circuit control. On-Off-On switch operation allows switching between two output circuits and off position. PCB mount type with through hole terminals for easy integration.
Contact voltages of 28 V dc and 115 V ac enable use in multiple applications. Epoxy sealed terminals improve durability and electrical reliability. Phenolic actuator material enhances heat resistance and mechanical strength.
IP67 rating provides dust and water resistance. Compact form factor with dimensions optimized for PCB layouts. Operating temperature range supports use in industrial and harsh conditions. Stainless steel frame with brass tin plated solder support for long-lasting performance.
This toggle switch is well-suited for use in electronic equipment requiring reliable manual switching, including automation systems, control panels, and industrial electronics. It complies with RoHS standards ensuring compliance with environmental regulations. The Gemini A series switch is designed to enhance production efficiency with its reliable construction and quality materials.
Explore more Toggle Switches and electronic components at EnvMart to fit your specific design and application requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a Single Pole Double Throw (SPDT) contact configuration, allowing for versatile circuit control.
It is rated for contact voltages of 28 V dc and 115 V ac, making it suitable for both low voltage DC and AC applications.
The switch has a contact current rating of 400mA, which supports moderate current loads effectively.
This toggle switch is rated IP67, providing protection against dust ingress and temporary immersion in water.
The dimensions are 0.35 inches in height, 0.5 inches in length, and 0.27 inches in width, making it compact for PCB layouts.
It features a phenolic actuator material for heat resistance, with a stainless steel frame and brass tin plated solder support for durability.
The operating temperature range is from -30°C to 85°C, ensuring stable performance in diverse ambient conditions.
This unit is designed for PCB mounting with through hole terminals, facilitating secure integration into electronic circuits.
It operates in an On-Off-On configuration, allowing for switching between two output circuits and an off position.
Yes, it complies with RoHS standards, ensuring it meets environmental regulations.
It is well-suited for use in electronic equipment requiring reliable manual switching, such as automation systems and control panels.
The actuator length is 10.41mm, which is designed for effective operation in various applications.
