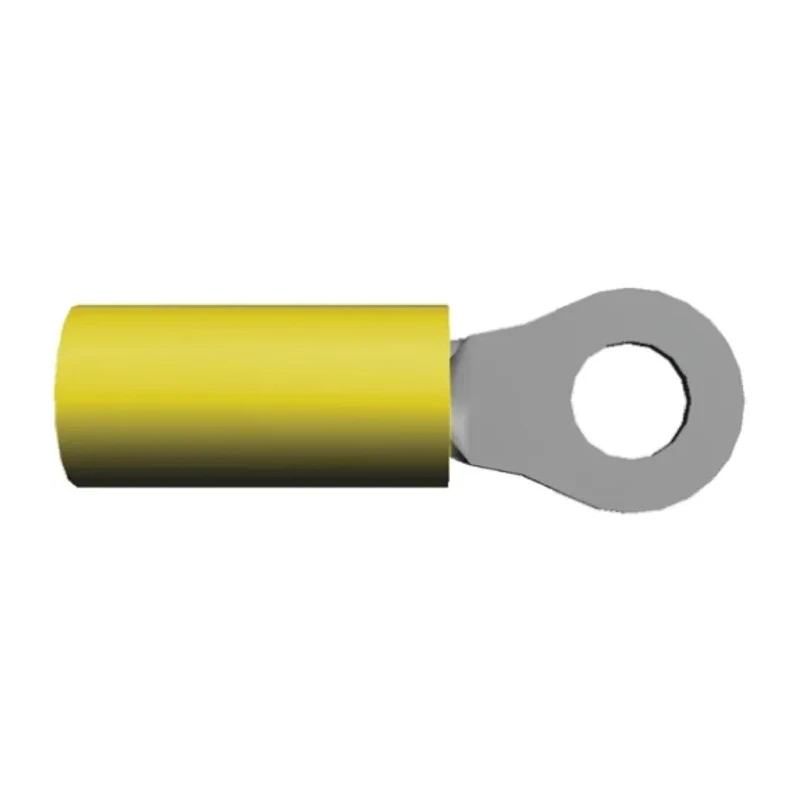

RS PRO PIDG Insulated Ring Terminal, M3.5 Stud Size, 12 AWG - 10 AWG Wire Size, Nylon Yellow Insulation 320567
Specifications
| Country of Origin | United States |
|---|---|
| Brand | RS PRO |
| Colour | Yellow |
| THICKNESS | 0.79mm |
| Model | 320567 |
| Insulation | Insulated |
| Overall Length | 27.51mm |
| Contact Material | Copper |
| Series | PIDG |
| Maximum Operating Temperature | 105°C |
| Insulation Material | Nylon |
| Standards/Approvals | RoHS |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 2.6mm² |
| Maximum Wire Size mm² | 6.6mm² |
| Minimum Wire Size AWG | 12AWG |
| Maximum Wire Size AWG | 10AWG |
| Outer Ring Diameter | 0.375mm |
| Inner Ring Diameter | 0.145mm |
| Stud Size | M3.5 |
| TE Connectivity Crimp Ring Terminal, 3.5mm Stud Size, YellowBrand | TE Connectivity |
Key Features
- Constructed with high conductivity copper body for excellent electrical performance.
- Nylon insulated sleeve in yellow aids in easy wire size identification.
- Features copper sleeve inside barrel for improved wire insulation support and prevention of fraying.
- Serrated wire barrel ensures maximum contact and tensile strength after crimping.
- Funnelled wire entry allows fast wire insertion during high-speed production.
- Suitable for use in instruments, control panels, lighting, power supplies, aerospace, and automotive applications.
- Complies with RoHS standards assuring environmental safety and quality.
- Maximum operating temperature of 105°C for reliable performance under heat.
Product Description
TE Connectivity 320567 PIDG Insulated Ring Terminal is a precision-engineered electrical connector designed for industrial and commercial wiring applications requiring dependable and uniform crimp connections. The terminal features a high conductivity copper body and barrel, with serrations inside the barrel to maximize contact and tensile strength after crimping. The wire barrel is protected by a copper sleeve that enhances insulation support and helps prevent fraying, while the outer yellow nylon sleeve enables quick wire size identification.
This ring terminal supports wire sizes from 12 AWG to 10 AWG and fits M3.5 stud sizes, providing versatile use across various industries including electronics, aerospace, automotive, power distribution, and industrial machinery. Its rugged construction and adherence to RoHS standards ensure durability and environmental compliance. The terminal’s design with a funnelled wire entry allows for fast and reliable wire insertion, facilitating high-speed production environments.
Typical applications range from instrumentation and control systems to panel boxes, lighting solutions, motors, and lifting equipment. The maximum operating temperature of 105°C makes this terminal suitable for use in environments subject to elevated heat.
High conductivity copper body for efficient electrical performance. Copper sleeve inside barrel for enhanced wire insulation support. Serrated barrel design ensures strong mechanical and electrical contact. Yellow nylon insulation sleeve for quick wire size recognition.
Funnelled wire entry facilitates rapid and reliable insertion. Meets RoHS environmental and quality standards. Suitable for industrial, aerospace, automotive, and commercial electrical applications. Operating temperature rated up to 105°C for heat resilience.
Choose TE Connectivity Ring Terminals for reliable, uniform crimps essential to high-quality electrical systems and wire harness assemblies. Explore more solutions in the EnvMart Power Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this ring terminal is 105°C, making it suitable for environments subject to elevated heat.
This model supports wire sizes from 12 AWG to 10 AWG, with a minimum wire size of 2.6 mm² and a maximum wire size of 6.6 mm².
It is designed to fit M3.5 stud sizes, providing versatility in various applications.
The terminal features a high conductivity copper body and barrel, with a nylon insulation sleeve and a tin contact plating.
The overall length of this terminal is 27.51 mm.
Yes, it complies with RoHS standards, ensuring environmental safety and quality.
The terminal has a funnelled wire entry design, which facilitates rapid and reliable wire insertion during high-speed production.
It is suitable for use in instruments, control panels, lighting, power supplies, aerospace, and automotive applications.
The thickness of the insulation on this terminal is 0.79 mm.
The inner ring diameter is 0.145 mm, and the outer ring diameter is 0.375 mm.
The serrated design of the wire barrel ensures maximum contact and tensile strength after crimping, improving mechanical and electrical performance.
The insulation material used in this terminal is nylon, which aids in easy wire size identification.
