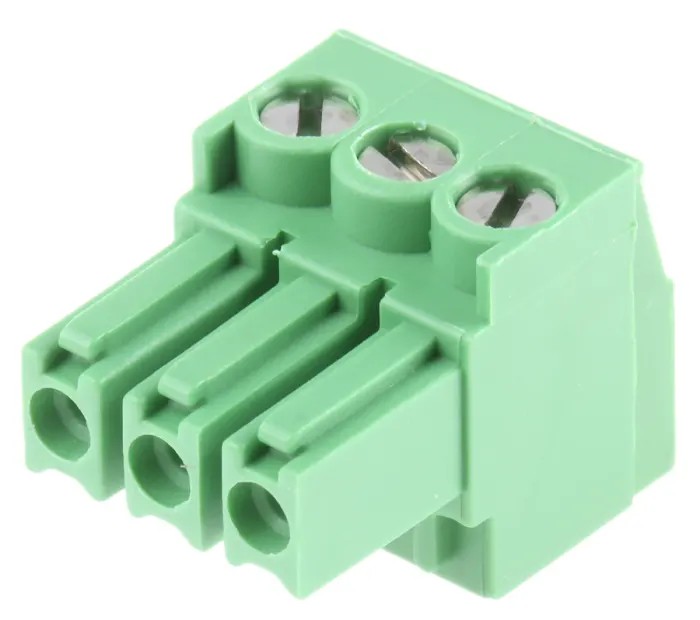

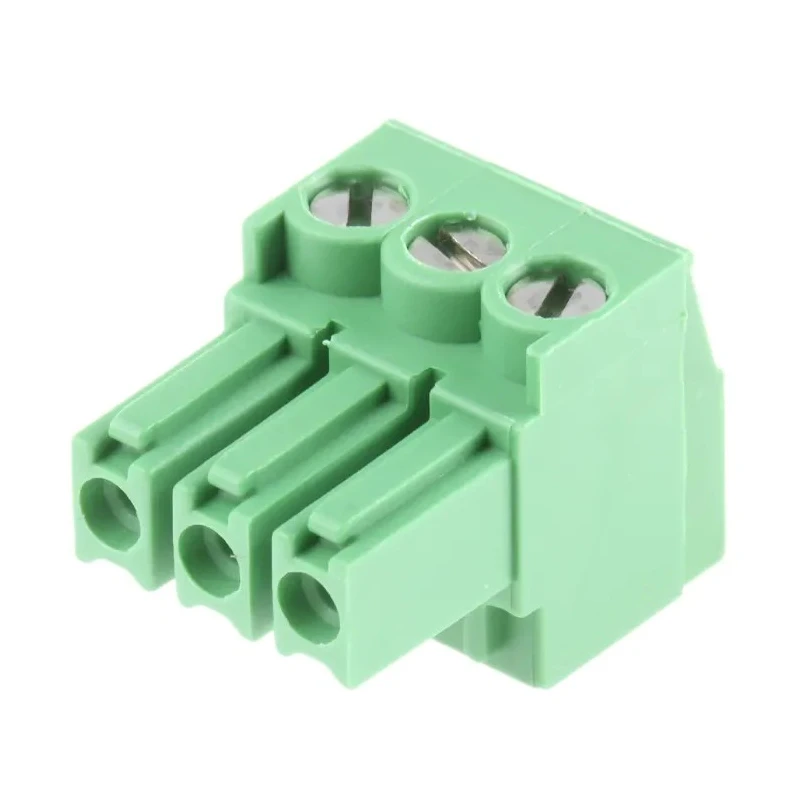

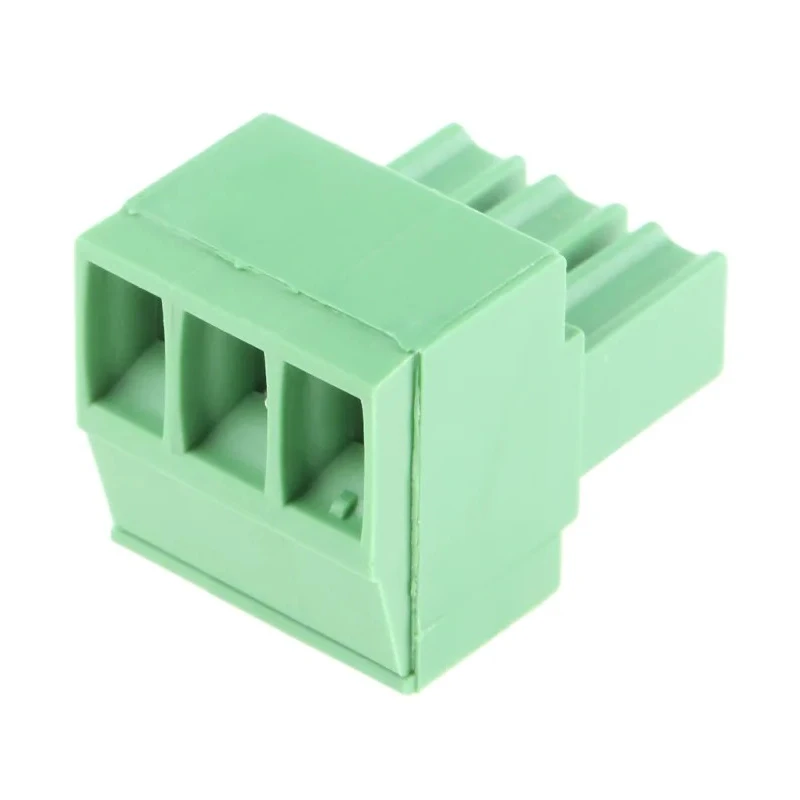

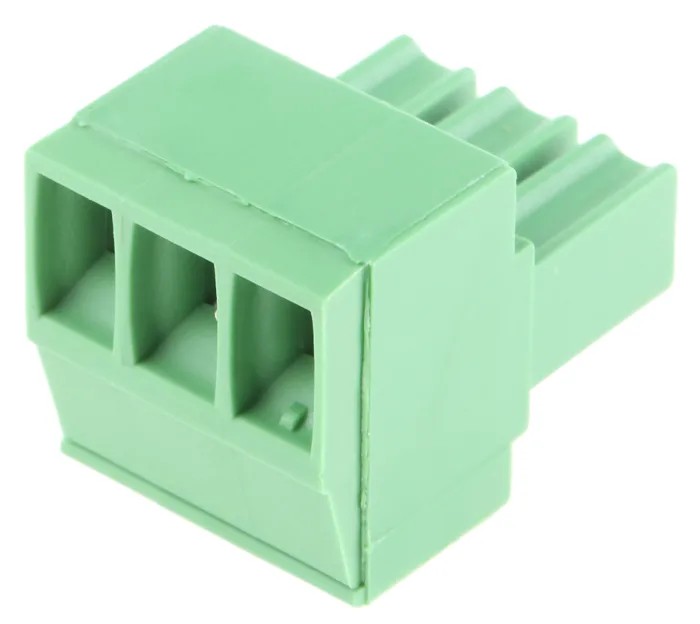

TE Connectivity Buchanan Series Pluggable Terminal Block 3-Contact 3.5 mm Pitch 1 Row 300V AC 11A 284506-3
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V ac |
| Brand | TE Connectivity |
| Colour | Green |
| Orientation | Right Angle |
| Current | 11A |
| Length | 10.5mm |
| Model | 284506-3 |
| Depth | 15.5mm |
| Width | 11.1mm |
| Housing Material | Polyamide |
| Series | Buchanan |
| Number of Rows | 1 |
| Pitch | 3.5mm |
| Number of Contacts | 3 |
| Connector Gender | Male |
| Minimum Wire Size mm² | 0.05mm² |
| Maximum Wire Size mm² | 2mm² |
| Minimum Wire Size AWG | 14AWG |
| Maximum Wire Size AWG | 30AWG |
Key Features
- This pluggable terminal block supports a current rating of 11 amperes.
- Constructed with green polyamide housing for durability and insulation.
- Compatible with 0.05 mm² to 2 mm² (30-14 AWG) wire sizes.
- Features M2 nickel plated brass screws and tin plated contacts for corrosion resistance.
- Right angle orientation allows efficient PCB mounting and space saving.
- Includes rising cage clamp design for secure wire retention.
- Meets UL 94V-0 flammability standard for safety.
- Ideal for industrial, electronic, and power connector applications.
Product Description
TE Connectivity 284506-3 pluggable terminal block is a high-quality connector designed for electronic and industrial applications, providing secure and efficient electrical connections.
Featuring a 3-contact configuration with a 3.5 mm pitch and a single row, this right angle terminal block supports a current capacity of 11A at 300V AC.
The housing is made from green polyamide 6.6 GF, ensuring excellent mechanical strength and electrical insulation. The nickel plated brass screws and tin plated contacts ensure corrosion resistance and long-term reliability.
The block accepts wires ranging from 0.05 mm² to 2 mm² (30AWG to 14AWG), making it versatile for many wiring requirements. The rising cage clamp design facilitates secure and stable wire connections, enhancing performance.
Its compact dimensions - length 10.5 mm, width 11.1 mm, depth 15.5 mm - and right angle orientation make it suitable for PCB mounting in limited space environments. This Buchanan series terminal block complies with UL 94V-0 standards, ensuring safety in electronic and electrical systems.
Common industrial use cases include electronic equipment manufacturing, power distribution systems, and control panels. This pluggable terminal block supports a current rating of 11 amperes. Constructed with green polyamide housing for durability and insulation.
Compatible with 0.05 mm² to 2 mm² (30-14 AWG) wire sizes. Features M2 nickel plated brass screws and tin plated contacts for corrosion resistance. Compact design with dimensions: length 10.5 mm, width 11.1 mm, depth 15.5 mm.
Right angle orientation allows efficient PCB mounting and space saving. Includes rising cage clamp design for secure wire retention. Meets UL 94V-0 flammability standard for safety. Ideal for industrial, electronic, and power connector applications.
Explore a wide range of TE Connectivity components and related products on EnvMart for your industrial and electronic projects.
Explore more products in our Pluggable Terminal Blocks category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This pluggable terminal block supports a current rating of 11 amperes.
It is compatible with wire sizes ranging from 0.05 mm² to 2 mm² (30 AWG to 14 AWG).
The voltage rating for this terminal block is 300V AC.
The dimensions of this model are length 10.5 mm, width 11.1 mm, and depth 15.5 mm.
The housing is constructed from green polyamide 6.6 GF, providing excellent mechanical strength and electrical insulation.
This terminal block features a 3-contact configuration.
It has a right angle orientation, which allows for efficient PCB mounting and space saving.
It features M2 nickel plated brass screws for corrosion resistance.
This model meets the UL 94V-0 flammability standard for safety.
It is ideal for industrial, electronic, and power connector applications.
It includes a rising cage clamp design for secure wire retention.
The country of origin for this terminal block is India.
