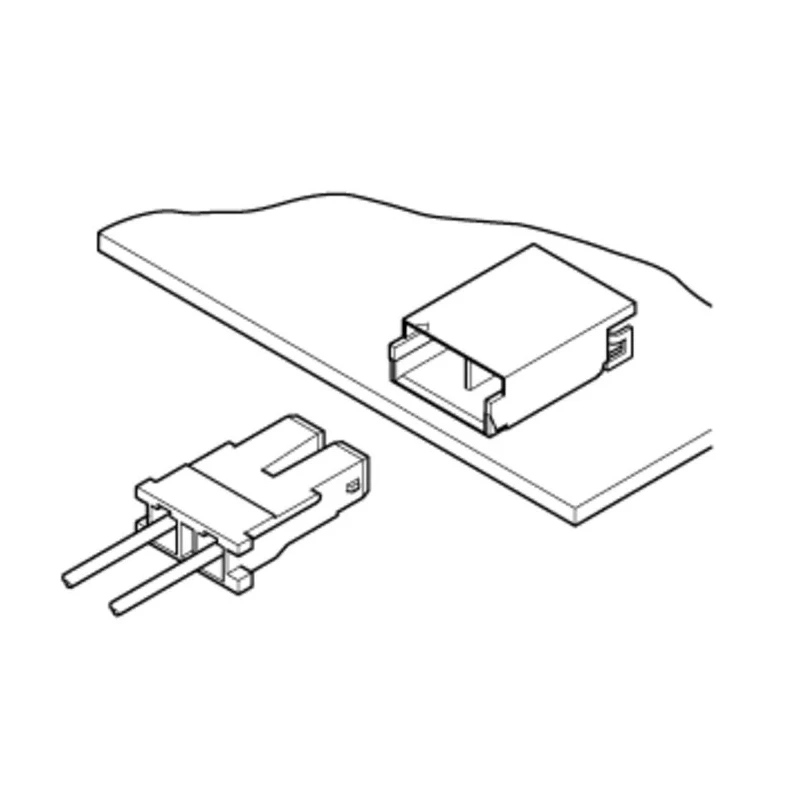

JST SBHS Series Female Crimp Terminal 28 AWG Min Crimp 24 AWG Max Tin-Plated Phosphor Bronze Contact SBHS-002T-P0.5A

Free Delivery in India | Lowest Global Shipping Charges

JST SBHS Series Female Crimp Terminal 28 AWG Min Crimp 24 AWG Max Tin-Plated Phosphor Bronze Contact SBHS-002T-P0.5A



Category Crimp Contacts Brand JST Condition New

Specifications

Country of Origin	India
Brand	JST
Current	1A
Model	SBHS-002T-P0.5A
Gender	Female
Contact Material	Phosphor Bronze
Series	SBHS
Termination Type	Crimp
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
For Use With	BD and BHS Connector Housings
Contact Plating	Tin
Minimum Wire Size mm²	0.08mm²
Maximum Wire Size mm²	0.22mm²
Minimum Wire Size AWG	28AWG
Maximum Wire Size AWG	24AWG
Maximum Contact Resistance	20mΩ

Key Features

Constructed with tin-plated phosphor bronze contacts for corrosion resistance.
Supports a current rating of 1 ampere suitable for low power circuits.
Compatible with BD and BHS connector housings for secure connection.
Termination type is crimp, offering secure and durable wire attachment.
Operates reliably within temperature range of -25°C to 85°C.
Maximum contact resistance of 20 milliohms ensures efficient conductivity.
Low profile design suits compact electronic assemblies.
Used in LCD backlight lamp starter connections.

Product Description

The JST SBHS-002T-P0.5A female crimp terminal is a precision-engineered connector designed for electronics applications requiring reliable and low-profile wire terminations.

Its tin-plated phosphor bronze contact material offers excellent corrosion resistance and conductivity, ideal for circuits with currents up to 1 ampere. The terminal actively supports wires from 28 AWG minimum to 24 AWG maximum, ensuring versatility across various cable sizes.

Termination is achieved via crimping, which provides durable and consistent electrical and mechanical connections. It is specifically designed to fit BD and BHS connector housings, making it suitable for diverse assembly and repair tasks in electronic equipment.

With operating temperatures ranging from -25°C to 85°C, the terminal can perform reliably in a range of environments, including industrial and consumer electronics. The maximum contact resistance is rated at 20 milliohms, which supports efficient signal integrity and power transfer.

This female crimp terminal is commonly used for applications such as connecting liquid crystal display backlight lamps to their starters, showcasing its suitability for display electronics and related systems. Its low profile design facilitates compact assemblies where space-saving connectors are essential.

Constructed with tin-plated phosphor bronze contacts for corrosion resistance. Supports a current rating of 1 ampere suitable for low power circuits. Compatible with BD and BHS connector housings for secure connection. Termination type is crimp, offering secure and durable wire attachment.

Operates reliably within temperature range of -25°C to 85°C. Maximum contact resistance of 20 milliohms ensures efficient conductivity. Low profile design suits compact electronic assemblies. Used in LCD backlight lamp starter connections.

This product is essential for electronics manufacturing, repair, and prototyping involving low current wire connections. Browse envMart categories for more connectors and electronic components from trusted brands like JST.
