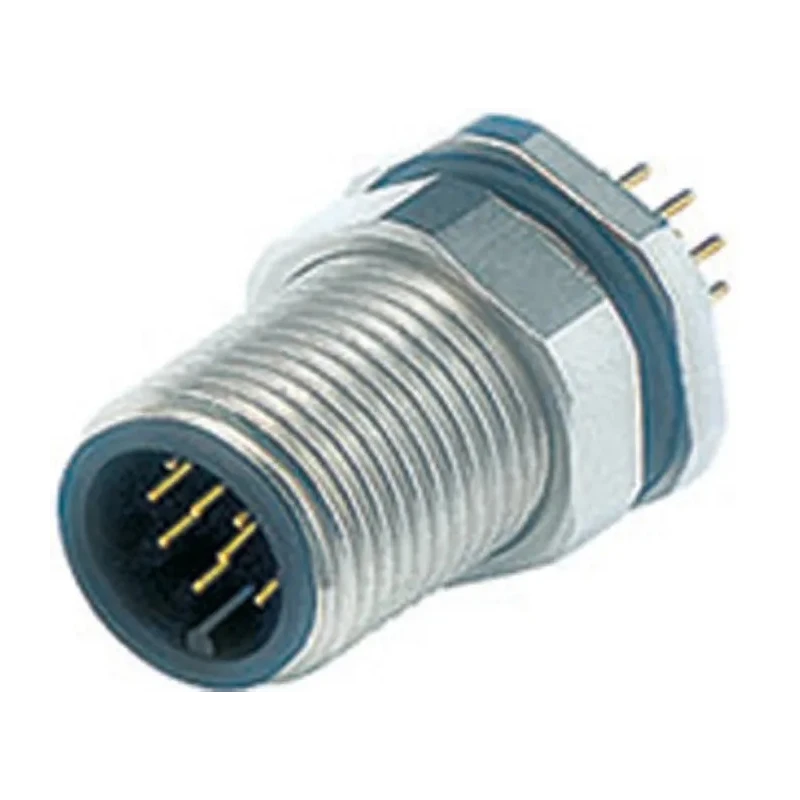

binder Circular Connector M12, 12 Contacts, Panel Mount, Plug Male, IP67 Rated, Die Cast Zinc Housing, Gold 09-3491-969-12
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 30V |
| Brand | binder |
| Orientation | Straight |
| Current | 1A |
| IP Rating | IP67 |
| Mount Type | Panel Mount |
| Housing Material | Die Cast Zinc |
| Contact Material | Brass |
| Series | 713 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -25°C |
| Contact Plating | Gold |
| Number of Contacts | 12 |
| Contact Gender | Male |
| Shell Size | M12 |
| Connector Size | M12 |
| Plug/Socket | Plug |
| Coding | A |
Key Features
- The connector housing is die cast zinc providing robust mechanical protection.
- Gold-plated brass contacts ensure excellent conductivity and corrosion resistance.
- Supports 1A current rating and 30V voltage rating suitable for low power industrial connections.
- Solder termination and screw locking system ensure secure and reliable mounting.
- Operates in a temperature range from -25°C to +85°C for varied industrial environments.
- Features A coding and belongs to the 713 series for compatibility.
- Straight orientation with front fastened M12 male sockets offers ease of installation.
- Rated IP67 for protection against dust ingress and water immersion.
Product Description
binder 09-3491-969-12 Circular Connector M12 model is a high-quality industrial electrical connector designed for panel mount applications. It features 12 gold-plated brass contacts with a male plug contact gender, ensuring reliable electrical transmission with minimal corrosion. The die cast zinc housing offers durability and mechanical protection.
This M12 connector supports a current capacity of 1A and operates at a voltage of 30V, making it suitable for low voltage industrial electronic systems. Its IP67 rating guarantees resistance against dust ingress and temporary water immersion, making it fit for harsh industrial environments.
Equipped with a screw locking system and solder termination, it ensures robust mechanical fixation and stable electrical connections. It has a straight orientation with A coding, part of the 713 series, which facilitates correct mating and compatibility with other components in the series.
The connector operates effectively in a wide temperature range from -25°C to 85°C and is engineered for panel mount installation with front-fastened male sockets. Such robust specifications make it ideal for electronic components, power distribution, automation, manufacturing equipment, HVAC systems, and other industrial applications requiring reliable circular connectors.
The connector housing material is die cast zinc for enhanced strength. Contacts are made of brass with gold plating for superior conductivity and corrosion resistance. Rated current is 1A and voltage is 30V suitable for low power connections.
IP67 ingress protection for dust-tight and water immersion resistance. Operating temperature range from -25°C to 85°C supports varied environment use. Screw locking and solder termination provide stable electrical and mechanical connection.
Panel mount with front fastened male sockets ensures easy installation. The product originates from Germany, ensuring high manufacturing standards.
Ideal uses include industrial automation, control panels, electronic equipment assembly, and power supply connections in demanding conditions. binder's 713 series connectors are globally recognized for their reliability and standard compliance.
Explore the wide range of Industrial Circular Connectors at EnvMart to find complementary components for your applications, featuring trusted brands like binder and technical excellence.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 1A and a voltage rating of 30V, making it suitable for low power industrial connections.
It has an IP67 rating, which provides protection against dust ingress and temporary water immersion.
The housing is made of die cast zinc, while the contacts are brass with gold plating for enhanced conductivity and corrosion resistance.
It operates effectively in a temperature range from -25°C to 85°C, suitable for varied industrial environments.
This connector features 12 contacts with a male plug contact gender.
It utilizes solder termination, ensuring stable electrical connections.
Yes, it is designed for panel mount installation with front-fastened male sockets for ease of use.
It belongs to the 713 series, which facilitates compatibility with other components in the series.
This model features A coding, which helps ensure correct mating with compatible connectors.
The shell size of this connector is M12, which is standard for many industrial applications.
The product originates from Germany, ensuring adherence to high manufacturing standards.
It is suitable for applications in industrial automation, control panels, electronic equipment assembly, and power supply connections in demanding conditions.
