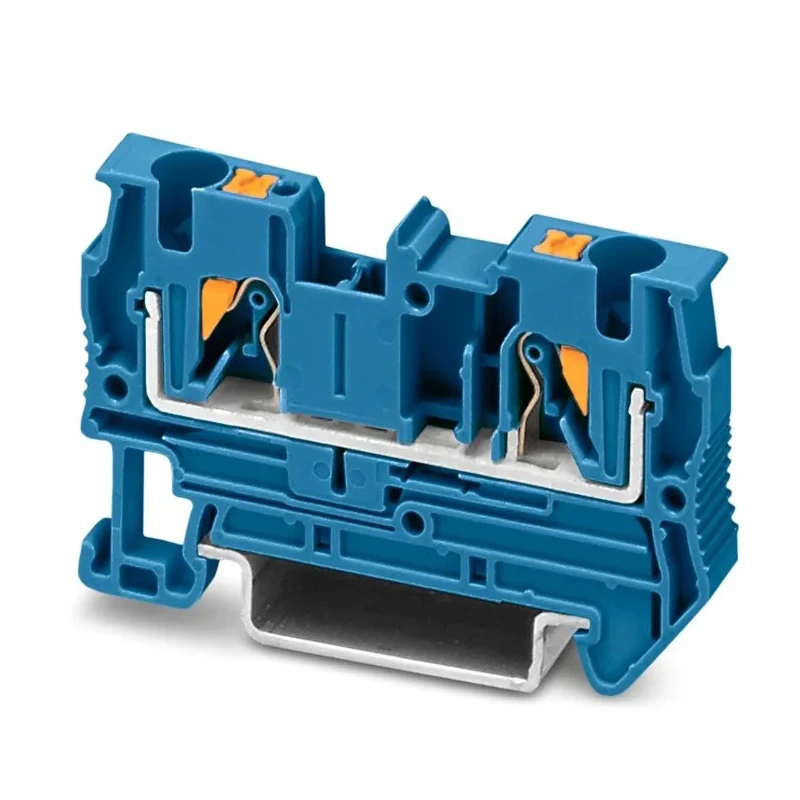

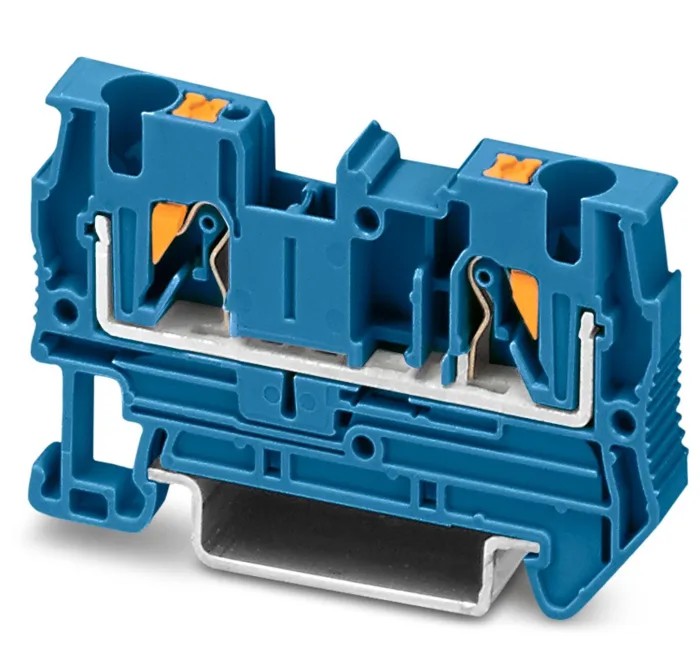

Phoenix Contact PT 4 BU Series Feed Through Terminal Block Blue 0.2mm² to 6 mm², 1-Level, Push-in, 800V, 32A, ATEX 3211760
Specifications
| Country of Origin | Poland |
|---|---|
| Voltage | 800V |
| Brand | Phoenix Contact |
| Colour | Blue |
| Model | 3211760 |
| Series | PT 4 BU |
| Termination Type | Push-in |
| Maximum Operating Temperature | 105°C |
| Number of Levels | 1 |
| Sub Type | Feed Through |
| Minimum Operating Temperature | -60°C |
| Hazardous Area Certification | ATEX, IECEx |
| Standards/Approvals | EAC |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 10AWG |
| Cable CSA | 0.2, 6mm² |
| Terminal Block Current | 32A |
Key Features
- The terminal block supports conductor cross-sections from 0.2mm² to 6mm².
- Operates safely at voltages up to 800 V and current ratings of 32 A.
- Designed with one-level feed through, ideal for space-efficient wiring.
- Made of durable PA housing providing excellent impact resistance and electrical insulation.

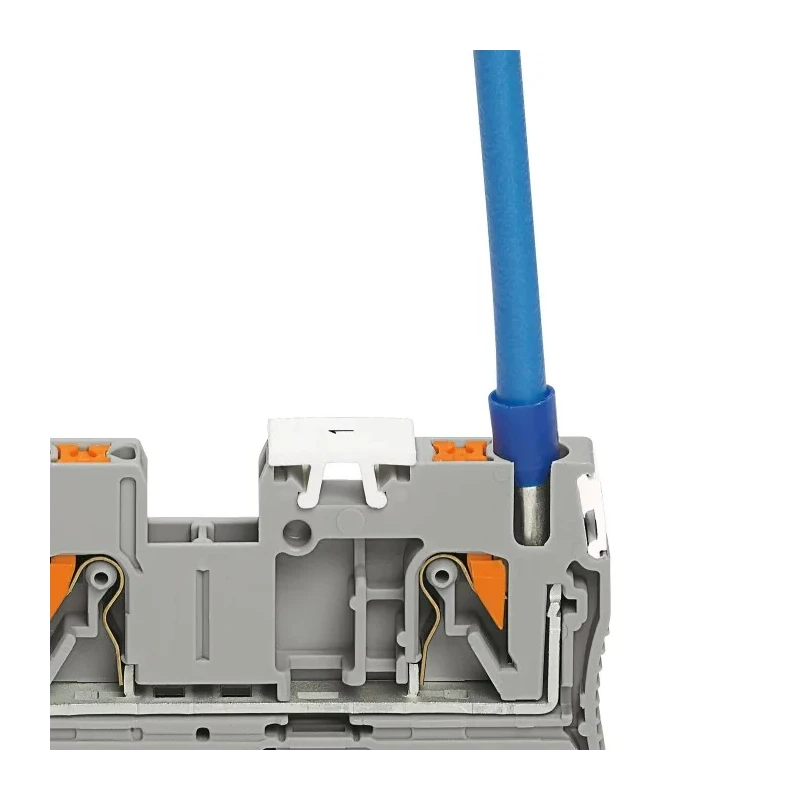

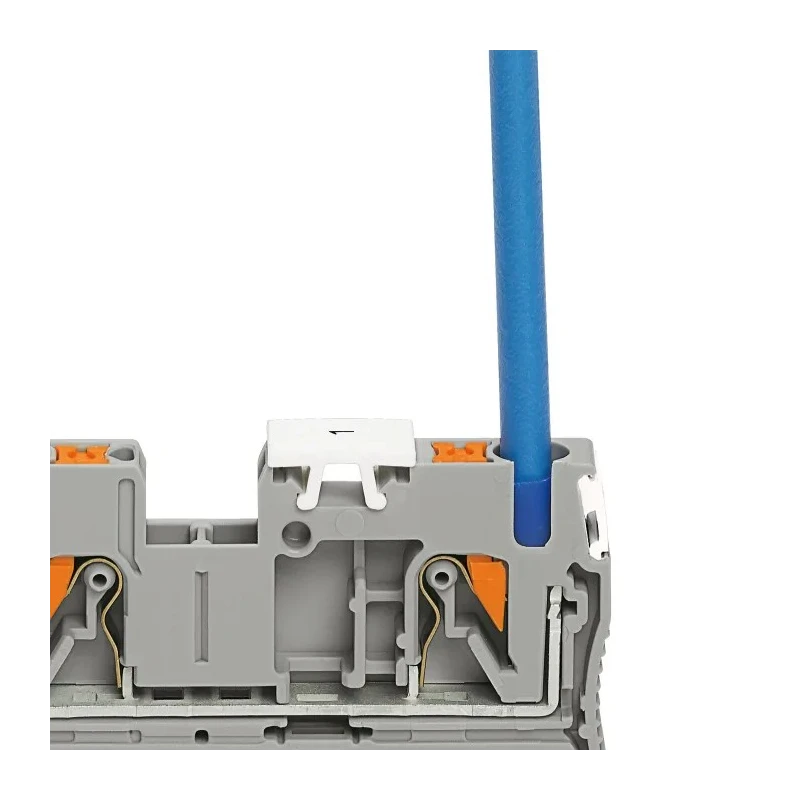

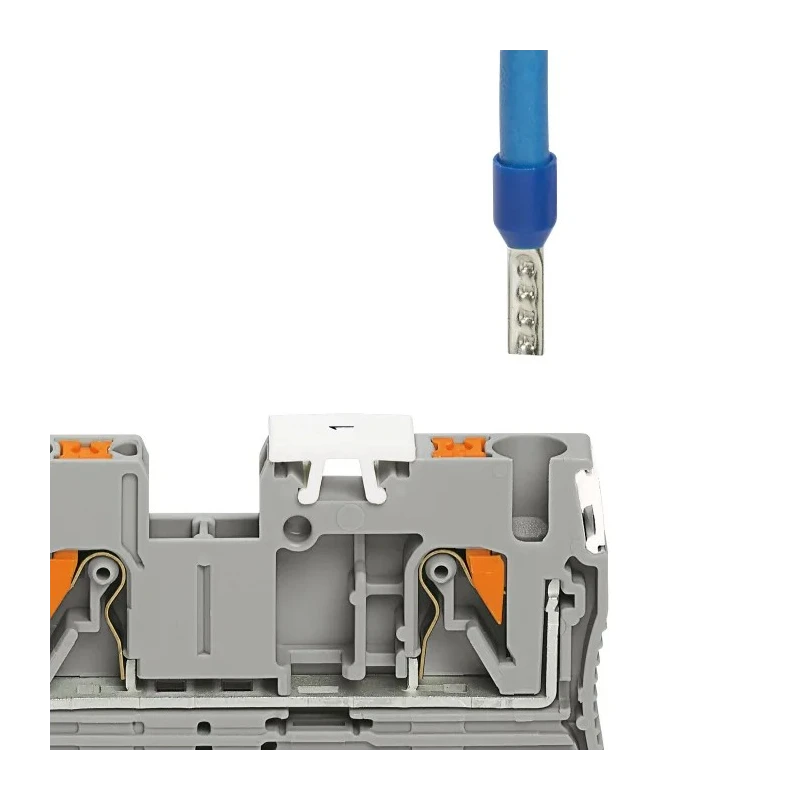

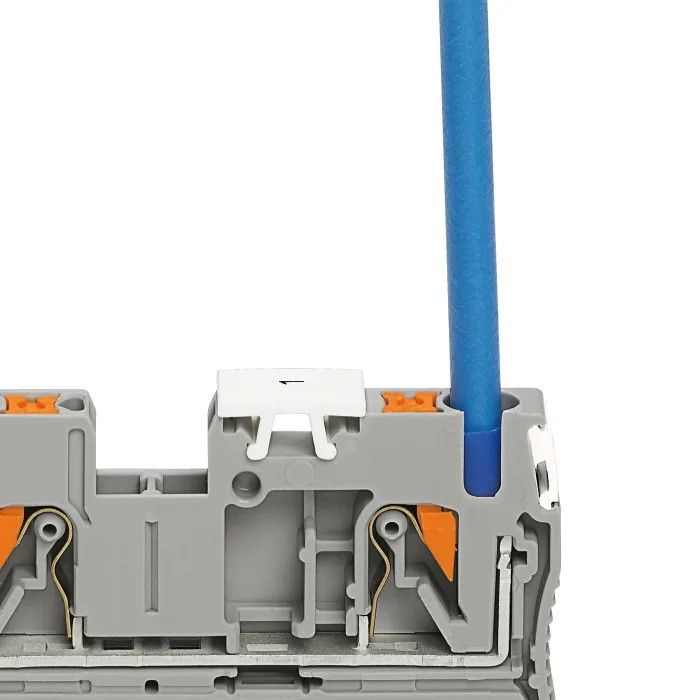

- Push-in termination enables tool-free connection, simplifying installation.
- Certified for hazardous areas with ATEX and IECEx approvals for safe operation.
- Wide operating temperature from -60°C to +105°C ensures performance in harsh environments.
- Compact dimensions of 56 mm length and 6.2 mm width fit tight installation spaces.
Product Description
Phoenix Contact 3211760 PT 4 BU Series Feed Through Terminal Block Blue provides a dependable and safe connection solution for electrical wiring in industrial, railway, and machine-building applications. Its push-in termination technology facilitates fast and tool-free cable joining, increasing productivity during installation.
Constructed from high-quality polyamide (PA) material, the terminal block housing offers robust impact resistance and serves as an insulator to protect circuits and prevent electric shocks under demanding conditions.
This feed through terminal block supports wire sizes from 0.2mm² up to 6mm², and its terminals accommodate minimal wire gauges of AWG24 and maximum of AWG10, allowing compatibility with a wide range of cables. It operates safely at voltages up to 800 V and currents of 32 A, suitable for various electrical distribution tasks.
The terminal block is certified for hazardous environments with ATEX and IECEx approvals, ensuring reliable performance in explosive atmospheres. It also complies with EAC standards, reflecting its international suitability.
An 8 kV rated surge voltage rating safeguards connected systems against transient voltage spikes, reducing the risk of arc faults and fire hazards. Designed with a compact form factor, measuring 56 mm in length and 6.2 mm in width, it fits efficiently on DIN rails, making it ideal for installations with restricted space.
The wide operating temperature range from -60°C to +105°C enables its use in extreme climatic conditions, enhancing system resilience. The terminal block supports conductor cross-sections from 0.2mm² to 6mm². Operates at voltages up to 800 V and 32 A current.
Push-in termination for tool-free connection. Robust PA housing provides impact resistance and insulation. ATEX and IECEx hazardous area certifications included. Suitable for railway and machine-building electrical systems.
Compact size fits tight DIN rail spaces. Rated surge voltage of 8 kV protects system integrity. Wide temperature range from -60°C to +105°C. Complies with EAC quality and safety standards.
This terminal block is an essential component in industrial and commercial electrical installations requiring safe, efficient, and certified wiring solutions. Explore more Phoenix Contact products and DIN Rail Terminal Blocks at EnvMart to find compatible accessories and additional connectivity options.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It operates safely at voltages up to 800 V.
This model has a current rating of 32 A.
It supports conductor cross-sections from 0.2 mm² to 6 mm².
The operating temperature range is from -60°C to +105°C.
It features a push-in termination type, allowing for tool-free connection.
It measures 56 mm in length and 6.2 mm in width, making it compact for tight spaces.
It is certified for hazardous areas with ATEX and IECEx approvals.
It accommodates wire sizes from a minimum of 24 AWG to a maximum of 10 AWG.
The housing is made of polyamide (PA), providing impact resistance and electrical insulation.
It has a rated surge voltage of 8 kV, protecting connected systems from transient voltage spikes.
The terminal block is manufactured in Poland.
It is suitable for industrial, railway, and machine-building electrical applications.
