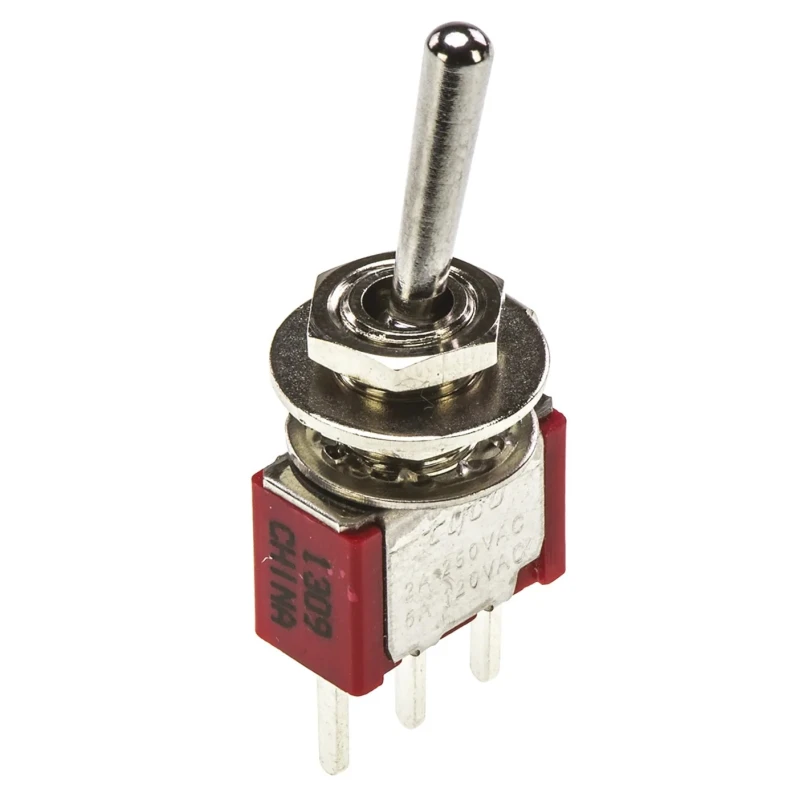

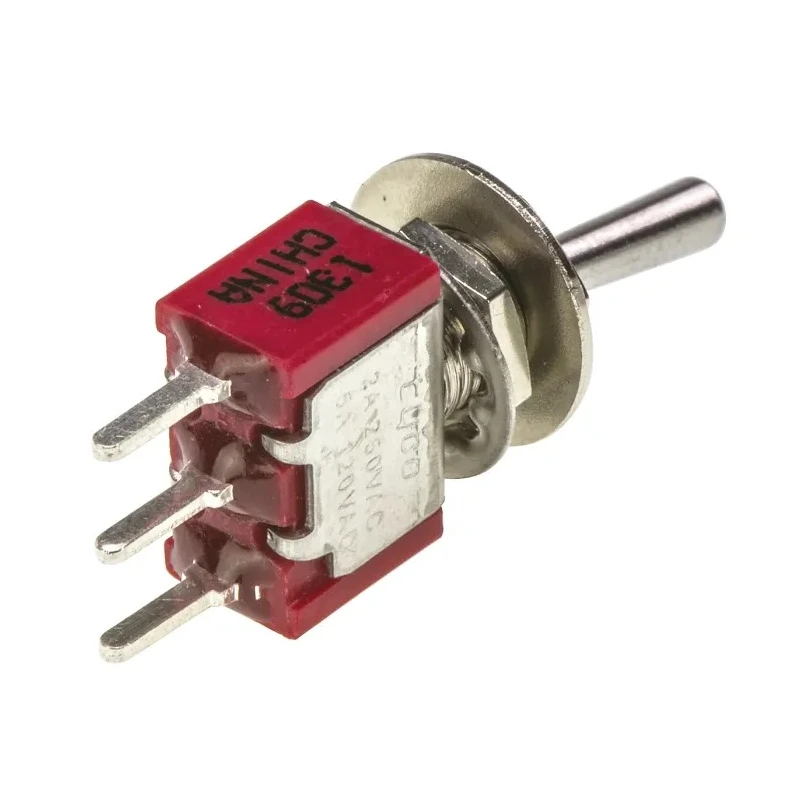

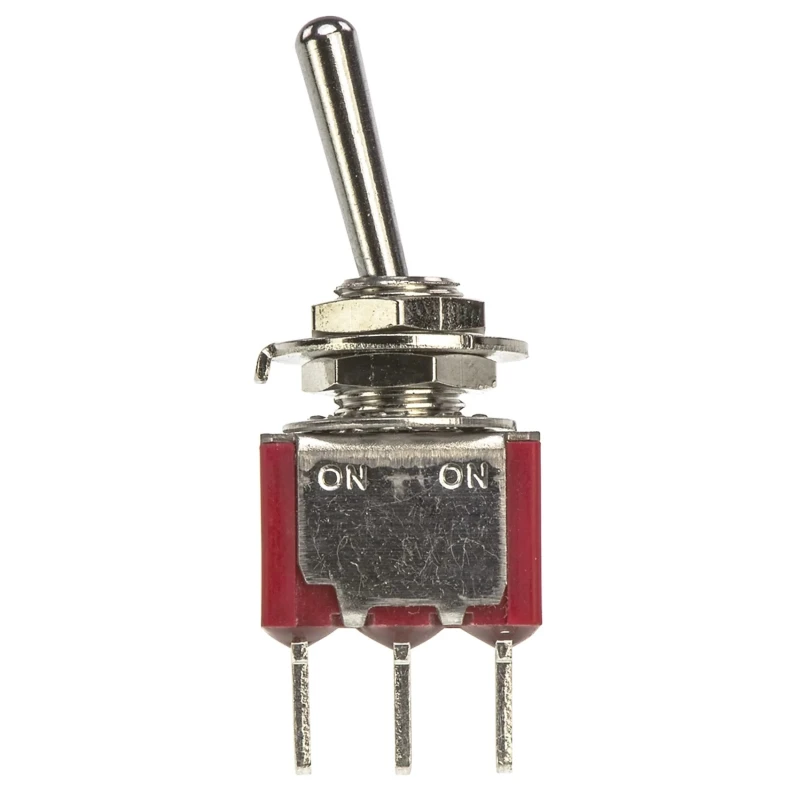

TE Connectivity Toggle Switch PCB Mount On-On SPDT Through Hole Terminal 28 V dc 120 V ac 3-1825136-8
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | TE Connectivity |
| IP Rating | IP67 |
| Mount Type | PCB |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | SPDT |
| Switch Configuration | On-On |
| Minimum Operating Temperature | -30°C |
| Panel Cutout Size | 6.35 mm |
| Terminal type | Through Hole |
| Standards/Approvals | RoHS |
| Switch Operation | On-On |
| Actuator Length | 12.19mm |
| Contact DC Voltage | 28V dc |
| Switch Contact Current | 5A |
| Contact AC Voltage | 120V ac |
| Actuator Material | Phenolic |
Key Features
- Rated for a contact current of 5A ensuring durability.
- On-On switch operation with SPDT contact configuration.
- PCB mount type with through hole termination facilitates secure connection.
- High protection with IP67 rating suitable for harsh environments.
- Non-illuminated actuator made from phenolic material.
- Compact panel cutout size of 6.35 mm with 12.19 mm actuator length.
- Operational temperature range from -30°C to 85°C.
- Epoxy sealed terminals and stainless steel frame provide robust construction.
Product Description
TE Connectivity 3-1825136-8 Toggle Switch is a PCB mountable switch with On-On SPDT operation designed for precise and reliable switching in electrical circuits. Rated for a 5A current, this switch supports both 28 V dc and 120 V ac voltages, making it suitable for various industrial and commercial applications including electrical, automation, and control systems.
The switch features through-hole terminal mounting, providing sturdy and secure PCB installation. Its actuator is made from durable phenolic material with a length of 12.19 mm, designed for comfortable user operation. With an IP67 rating, this toggle switch is protected against dust and water ingress, enabling use in harsh or demanding environments.
Operating temperature ranges from -30°C to 85°C, ensuring performance stability in diverse climatic conditions. The stainless steel frame and epoxy sealed terminals further enhance durability and reliability. This product meets RoHS compliance standards, supporting environmentally responsible manufacturing.
Compact in size with a panel cutout of 6.35 mm, it is a versatile choice for integrating into electrical assemblies requiring single-pole double-throw switching. Rated contact current of 5A for extended operational lifetime.
On-On switch operation with single pole double throw configuration for versatile circuit control. Robust construction with epoxy sealed terminals and stainless steel frame. IP67-rated protection ensuring suitability for demanding environments.
Phenolic actuator material designed for mechanical endurance. Wide operating temperature range from -30°C to 85°C for reliable performance. Through hole terminals for strong PCB connection. Compliant with RoHS standards for environmental safety.
Manufactured in Taiwan, Province Of China for quality assurance. Compact panel cutout and actuator size for easy integration.
This TE Connectivity toggle switch is ideal for industrial, laboratory, electrical, and automation applications where dependable SPDT switching is essential. It is widely used in manufacturing equipment, control panels, and other precision electronic assemblies. Browse more reliable and high-quality Toggle Switches on EnvMart for your electrical component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features an SPDT (Single Pole Double Throw) contact configuration, allowing for versatile circuit control with On-On switch operation.
The maximum operating temperature for this toggle switch is 85°C, ensuring reliable performance in various environments.
It has an IP67 rating, providing protection against dust and water ingress, suitable for harsh environments.
This switch is designed for PCB mounting with through-hole terminals, facilitating secure installation on printed circuit boards.
The rated contact current is 5A, ensuring durability and reliability during operation.
It supports a contact DC voltage of 28V and an AC voltage of 120V, making it suitable for various applications.
The actuator is made from phenolic material, designed for mechanical endurance and user comfort.
The required panel cutout size for this toggle switch is 6.35 mm, allowing for easy integration into electrical assemblies.
The minimum operating temperature is -30°C, ensuring stable performance in cold conditions.
Yes, this model meets RoHS compliance standards, supporting environmentally responsible manufacturing practices.
The actuator length is 12.19 mm, providing a comfortable reach for user operation.
This toggle switch is manufactured in Taiwan, ensuring quality assurance during production.
