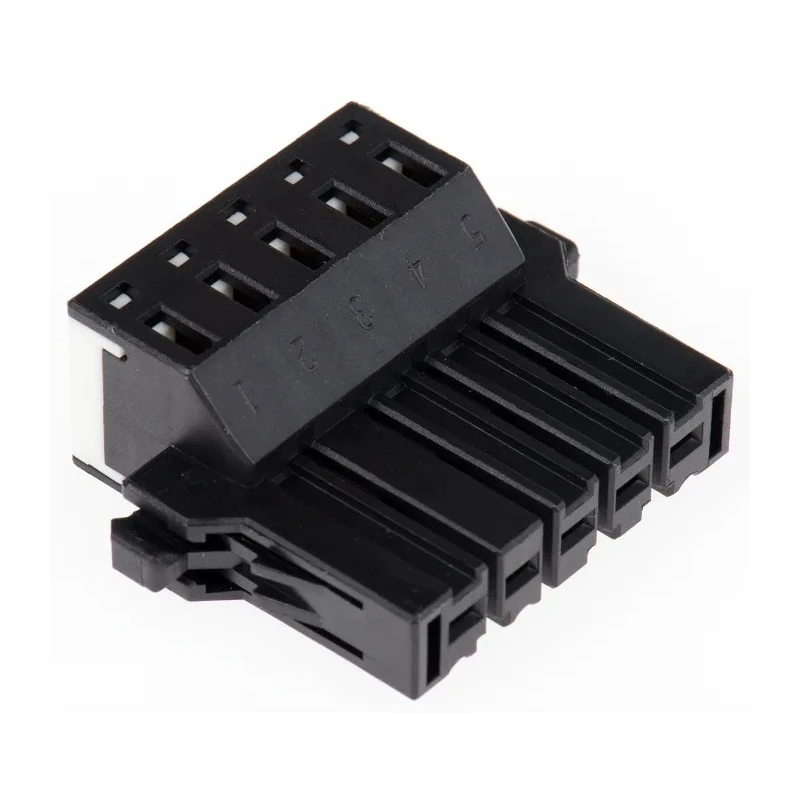

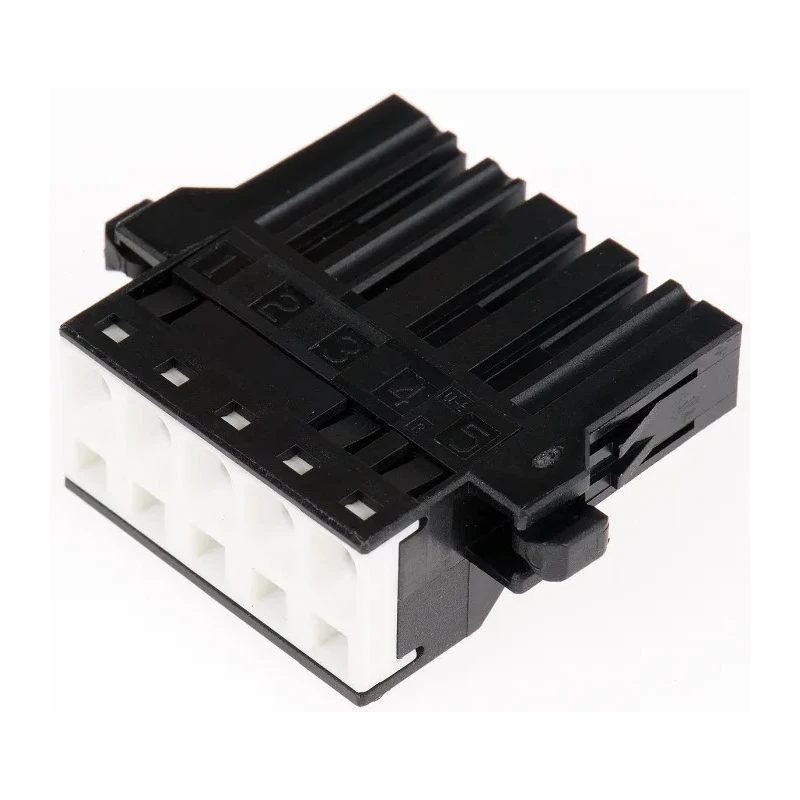

JST J300 Female Connector Housing 5.08 mm Pitch 5 Way 1 Row Straight 05JFAT-SBXGF-I
Specifications
| Country of Origin | India |
|---|---|
| Brand | JST |
| Orientation | Straight |
| Length | 39.32mm |
| Model | 05JFAT-SBXGF-I |
| Mount Type | Cable |
| Housing Material | Polybutylene Terephthalate |
| Series | J300 |
| Number of Rows | 1 |
| Pitch | 5.08mm |
| For Use With | JFA Connector |
| Number of Contacts | 5 |
| Connector Gender | Female |
Key Features
- Features 5 contacts arranged in a single row for secure connection.
- Constructed from durable polybutylene terephthalate housing material.
- Maintains a pitch of 5.08 mm suitable for PCB wire housing applications.
- Utilizes an internal spring lock mechanism for wire termination without crimp terminals.
- Works with wire sizes from 14 to 28 AWG for flexible wiring needs.
- Designed to mate with J300 Series and J320 headers for compatibility.
- Offers straight orientation for easy cable routing and assembly.
- Measuring 39.32 mm in length for compact connector housing.
Product Description
JST 05JFAT-SBXGF-I female connector housing is a specialized 5 way, 1 row, straight orientation connector housing designed for use with JFA connectors in demanding electronic and industrial environments. It offers a precise 5.08 mm pitch and features a spring lock mechanism that enables secure wire termination without the need for separate crimp terminals, streamlining assembly processes.
Manufactured using high-quality polybutylene terephthalate, this housing ensures mechanical robustness and excellent resistance to environmental factors. The connector housing mates seamlessly with JST's J300 and J320 series headers, providing versatile compatibility across various PCB connector configurations.
The internal spring lock termination allows wires sized 14 - 28 AWG to be easily inserted and securely held, enhancing reliability in electrical connections. The straight cable mounting orientation is optimized for orderly wiring layouts in industrial automation, manufacturing systems, and power electronics.
This connector housing complies with UL 94V-0 flame retardancy standards, ensuring safety in electrical assemblies. Its compact length of 39.32 mm facilitates integration even in space-constrained applications.
5 contacts in one row for dependable connectivity. Polybutylene terephthalate housing material for durability. 5.08 mm pitch suitable for standard wire spacing. Spring lock mechanism for tool-assisted wire insertion and removal.
Compatible with J300/J320 series headers for system flexibility. Supports wire gauge range of 14 - 28 AWG for diverse wiring. Straight orientation for efficient cable management. UL 94V-0 standard compliance for enhanced safety.
Length of 39.32 mm for compact installation footprint.
This female connector housing from JST is suitable for electronic component assembly, power and signal connectors, automation control gear, manufacturing machinery, and other commercial and industrial applications. It enables simplified wiring and reliable electrical connections.
Explore the wide range of Connector Housings and electronic components at EnvMart for comprehensive industrial solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this connector housing is 5.08 mm, suitable for standard wire spacing in PCB applications.
This model features 5 contacts arranged in a single row for secure connections.
It supports wire sizes ranging from 14 to 28 AWG, allowing for flexible wiring options.
The length of this connector housing is 39.32 mm, making it compact for various applications.
It has a straight orientation, which facilitates easy cable routing and assembly.
It utilizes an internal spring lock mechanism that allows for wire termination without the need for crimp terminals.
This model features a single row configuration, which helps in organizing connections efficiently.
Yes, it complies with UL 94V-0 flame retardancy standards, enhancing safety in electrical assemblies.
