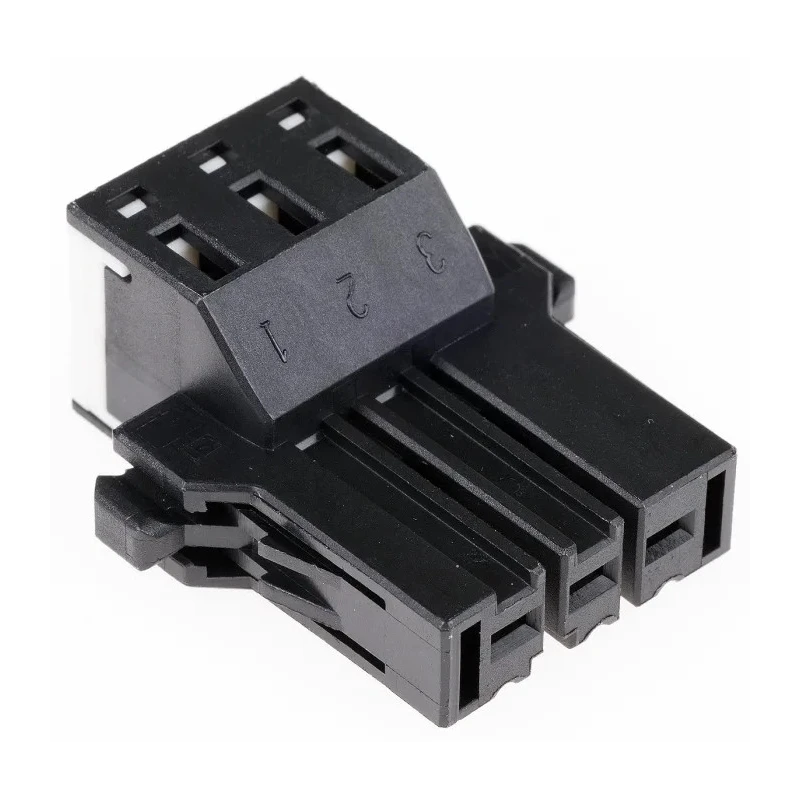

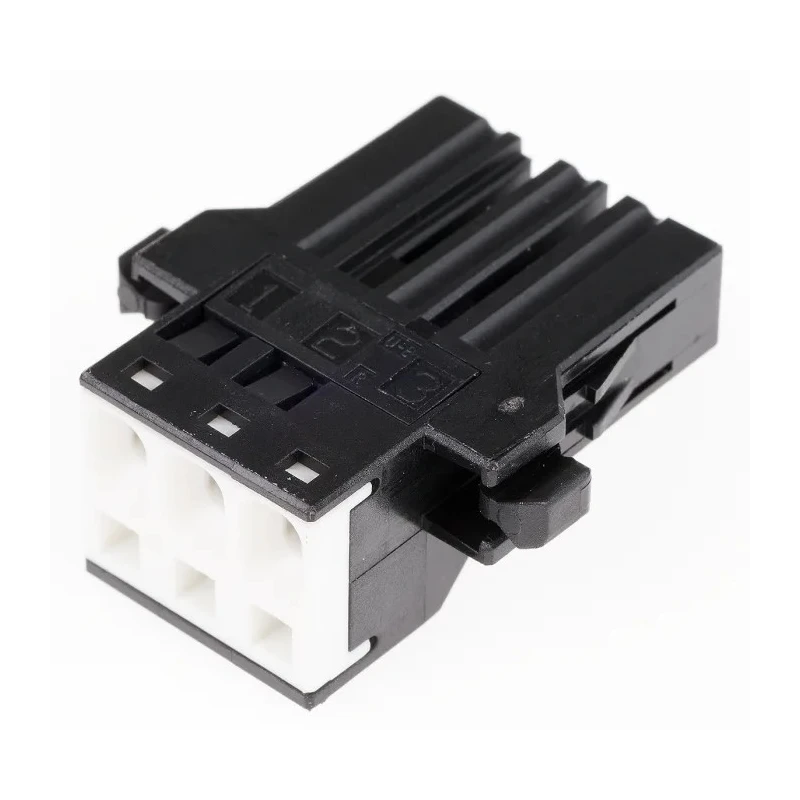

JST J300 Female Connector Housing, 5.08 mm Pitch, 3 Way, 1 Row Straight 03JFAT-SBYGF-I
Specifications
| Country of Origin | India |
|---|---|
| Brand | JST |
| Orientation | Straight |
| Length | 29.16mm |
| Model | 03JFAT-SBYGF-I |
| Mount Type | Cable |
| Housing Material | Polybutylene Terephthalate |
| Series | J300 |
| Number of Rows | 1 |
| Pitch | 5.08mm |
| For Use With | JFA Connector |
| Number of Contacts | 3 |
| Connector Gender | Female |
Key Features
- Provides a secure cable mount type female connector housing.
- Compatible for use with JFA connectors and mates with J300 series connectors.
- Features internal spring lock mechanism for quick wire insertion.
- Constructed from Polybutylene Terephthalate for durability and electrical insulation.
- Supports wire sizes from 14 to 28 AWG for flexible applications.
- Maintains a length of 29.16 mm for compact connector placement.
- Designed for single row, 3 contact configuration for reliable connections.
- Complies with UL 94V-0 standard ensuring flame retardance.
Product Description
JST 03JFAT-SBYGF-I Female Connector Housing is a high-quality electrical connector housing designed for use in various electronics and industrial applications. Featuring a 5.08 mm pitch and 3 contact points arranged in a single row, this straight orientation connector ensures reliable and efficient connections suitable for cable mounting.
Constructed from durable polybutylene terephthalate material, the housing offers excellent electrical insulation and mechanical strength. The J-FAT-S-i series includes an internal spring lock mechanism termination system that allows users to insert stripped wires directly without separate crimp terminals by deflecting the locking spring using a dedicated insertion tool (J-FAT-OT, sold separately).
This connector is compatible with JFA connectors and mates with J300/J320 series headers, supporting wire sizes between 14 to 28 AWG. Polarization is achieved through selectable key codes, ensuring correct and secure mating. Its UL 94V-0 flame-retardant rating underscores suitability for rigorous industrial environments.
Applications include factory automation, electronic equipment wiring, and electrical assemblies requiring secure, reliable, and disconnectable connections. Its compact length of 29.16 mm enables integration in space-constrained designs.
Provides a secure cable mount type female Connector Housing. Compatible for use with JFA connectors and mates with J300 series connectors. Features internal spring lock mechanism for quick wire insertion. Constructed from Polybutylene Terephthalate for durability and electrical insulation.
Supports wire sizes from 14 to 28 AWG for flexible applications. Maintains a length of 29.16 mm for compact connector placement. Designed for single row, 3 contact configuration for reliable connections. Complies with UL 94V-0 standard ensuring flame retardance.
Ideal for industrial, automation, and electronic component applications. Explore more reliable connectors and housing solutions in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of the JST J300 Female Connector Housing is 5.08 mm.
This connector housing has a length of 29.16 mm, making it suitable for compact installations.
It supports a configuration of 3 contacts in a single row.
This model supports wire sizes ranging from 14 to 28 AWG.
The housing is constructed from Polybutylene Terephthalate, which provides electrical insulation and mechanical strength.
This model utilizes a cable mount type for secure installation.
Yes, it includes an internal spring lock mechanism for quick wire insertion without the need for separate crimp terminals.
The orientation of this connector housing is straight.
It complies with the UL 94V-0 standard, ensuring flame retardance.
It is suitable for applications in factory automation, electronic equipment wiring, and electrical assemblies requiring secure connections.
The country of origin for this connector housing is India.
