Souriau Sunbank by Eaton Heavy Duty Power Connector 12 Way 13A 220V SMS12PDH3

Free Delivery in India | Lowest Global Shipping Charges

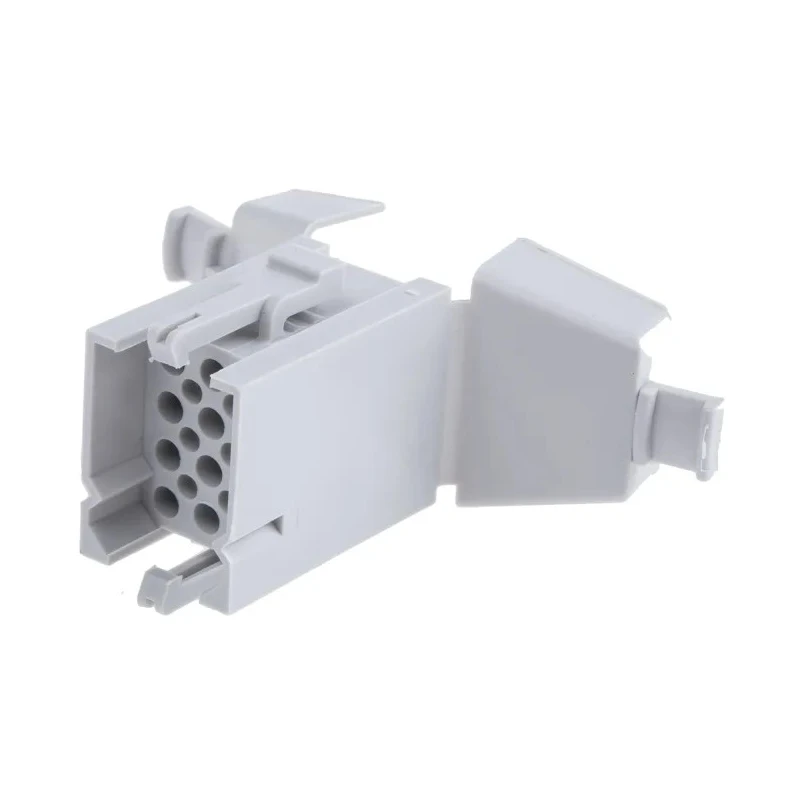

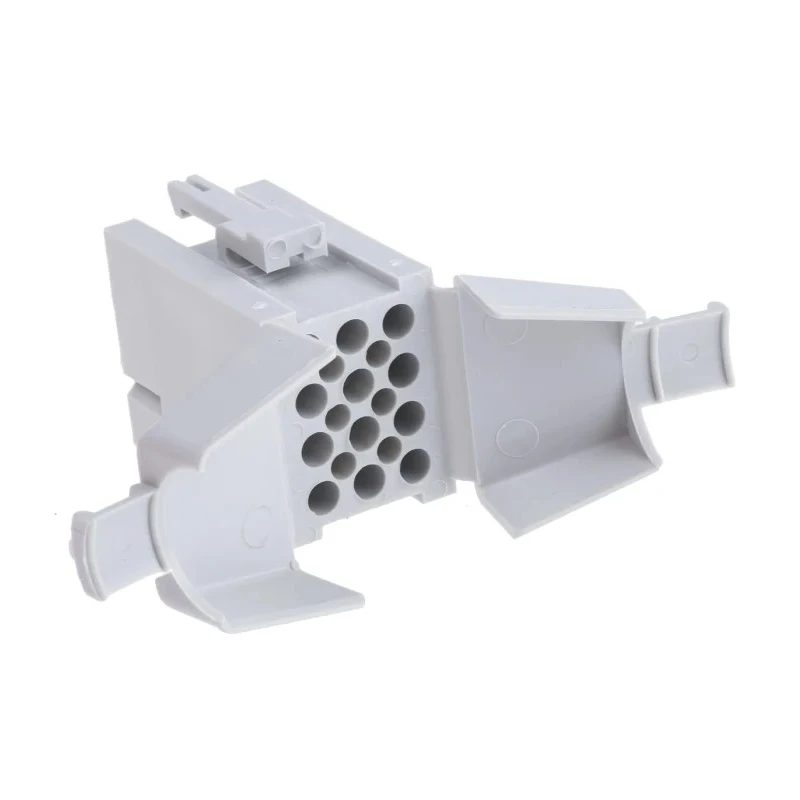

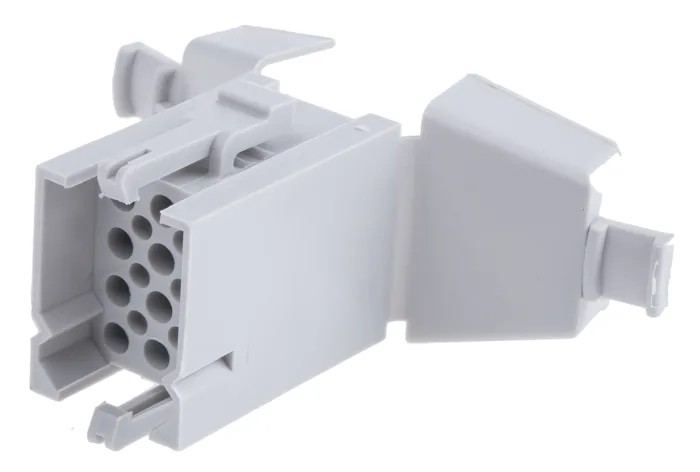

Souriau Sunbank by Eaton Heavy Duty Power Connector 12 Way 13A 220V SMS12PDH3

Name: Souriau Sunbank by Eaton Heavy Duty Power Connector 12 Way 13A 220V SMS12PDH3
Brand: Souriau Sunbank by Eaton
SKU: 217381
Price: 9.01 USD
Availability: InStock



Category Heavy Duty Power Connector Brand Souriau Sunbank by Eaton Condition New

Specifications

Country of Origin	Belgium
Voltage	220V
Brand	Souriau Sunbank by Eaton
Model	SMS12PDH3
Current Rating	13A
Series	SMS
Standards/Approvals	UL94-V0, NF F 16102, NF F 16101
Number of Contacts	12

Key Features

The SMS series features a push-to-mate and press-and-release to unmate interconnection system for quick assembly.
Constructed with fire and smoke resistant polyamide PA 6 UL94-V0 housings suitable for railway indoor applications.
Compliant with railway fire and smoke standards according to NF F16101 and NF F16102.
Includes retaining latches for secure locking and pin protection skirts to prevent contact damage.
Positive polarization keys prevent mismating during installation.
Available in versions with or without strain relief hoods and discrimination cavities for cable security.
Uses size 16 TRIM TRIO 1.6mm diameter snap-lock pin and socket contacts, sold separately.
Ideal for industrial, transportation, and railway power connector applications.

Product Description

Souriau Sunbank by Eaton SMS12PDH3 Heavy Duty Power Connector is a 12 way, 13A, 220V cable mount plug designed for reliable power connectivity in demanding industrial and railway applications. Featuring a compact design and a flame retardant polyamide PA 6 UL94-V0 housing, this connector ensures excellent fire and smoke resistance compliant with NF F16101 and NF F16102 standards used widely in the railway industry.

The SMS series connectors incorporate an innovative push to mate and press & release to unmate mechanism, enabling quick and easy installation without additional hardware. Retaining latches ensure positive locking, while pin protection skirts guard contact integrity during handling and installation. Positive polarization keys prevent incorrect mating, enhancing system safety and reliability.

Versions are available with integrated strain relief hoods and discrimination cavities to provide additional cable strain protection and positional identification. Contacts use size 16 TRIM TRIO 1.6mm diameter snap-lock pins and sockets which must be purchased separately to complete assemblies.

Manufactured in Belgium, this connector aligns with international quality and safety standards, including UL94-V0, and specifically supports railway indoor environments due to its fire and fume retardancy as per I3/F2 norms. Applications span heavy-duty industrial power connections, railway electrical systems, and other environments demanding robust, quick mating power connectors.

The SMS series offers rapid assembly without tools. Flame retardant housing suitable for railway compliance. Secure locking and protective features safeguard installation. Positive polarization prevents mismatching during connection.

Available with or without strain relief and discrimination cavities. Contacts are sold separately for flexible configurations. Ideal for heavy duty industrial and railway power connections. Explore more Heavy Duty Power Connectors by Souriau Sunbank by Eaton on EnvMart for reliable and certified electrical connectors tailored to industrial and transport sectors.
