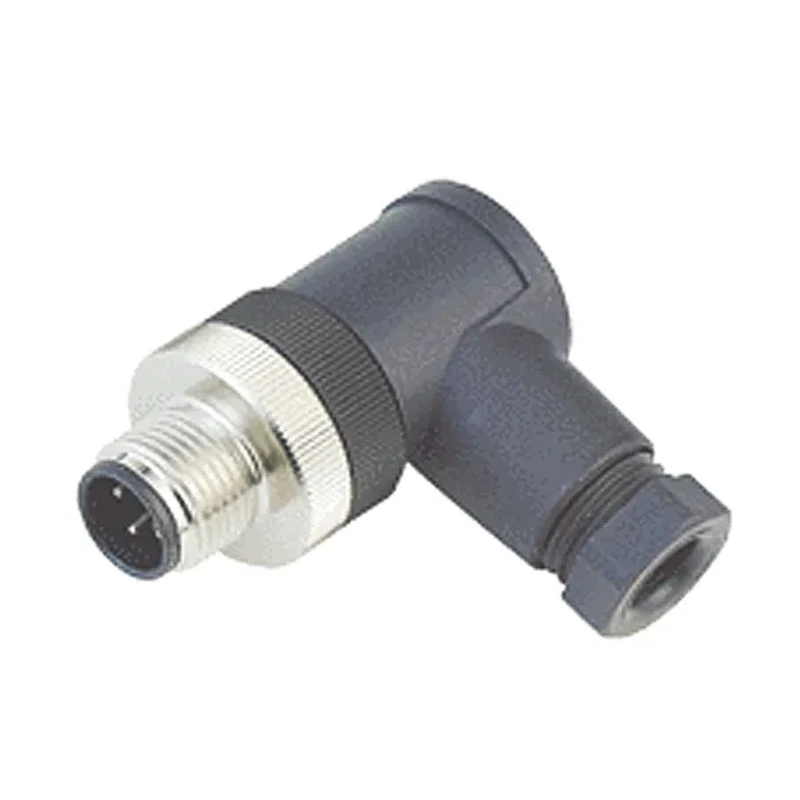

binder Circular Connector, 4 Contacts, Cable Mount, M12 Connector Socket Male, IP67, 713 Series 99-0429-324-04

binder 99-0429-324-04 circular connector is a high-quality industrial circular connector featuring 4 contacts, cable mounting type, and an M12 socket male configuration. This connector belongs to the 713 Series and is designed for demanding electronic and electrical applications requiring secure and robust connections.

Constructed with a durable metal housing and a PA (Polyamide) outer casing, it provides excellent abrasion resistance and mechanical strength. The contact pins are made of brass with bronze plating which ensures strong conductivity, corrosion resistance, and prevents oxidation. The termination uses screw clamps to provide a stable and reliable electrical connection.

It is rated for an operating voltage of 250V and supports a current of 4A. The connector features an IP67 ingress protection rating when mated, guaranteeing dust-tight sealing and protection against water ingress, making it suitable for industrial environments exposed to harsh conditions.

The right-angle orientation and A coding improve usability and ensure correct mating with compatible connectors. The locking mechanism is bolted, allowing for secure and consistent connections with up to 100 mating cycles, extending the connector's service life.

Operating temperature ranges from -25°C to 85°C, making it suitable for varied industrial and manufacturing settings where temperature variations may occur.

This circular connector from binder is manufactured in Germany, meeting rigorous quality standards for industrial electrical components. Its lightweight design at 21.822 grams makes it easy to manage and integrate into cable assemblies.

Applications include industrial automation, machinery wiring, process control systems, and general electrical power and signal transmission installations. The connector supports 4 contacts with a current rating of 4A. Robust metal and polyamide housing provides durability and abrasion resistance.

Right angle orientation and A coding support precise and correct mating. IP67 rating ensures protection against dust and water ingress. Bronze-plated brass contacts with screw termination ensure reliable performance. Operates at voltages up to 250V and temperatures from -25°C to 85°C.

M12 connector size with 20.2 mm shell size for industrial use. Bolted locking system allows up to 100 mating cycles for durability. Lightweight at 21.822 grams, manufactured in Germany.
