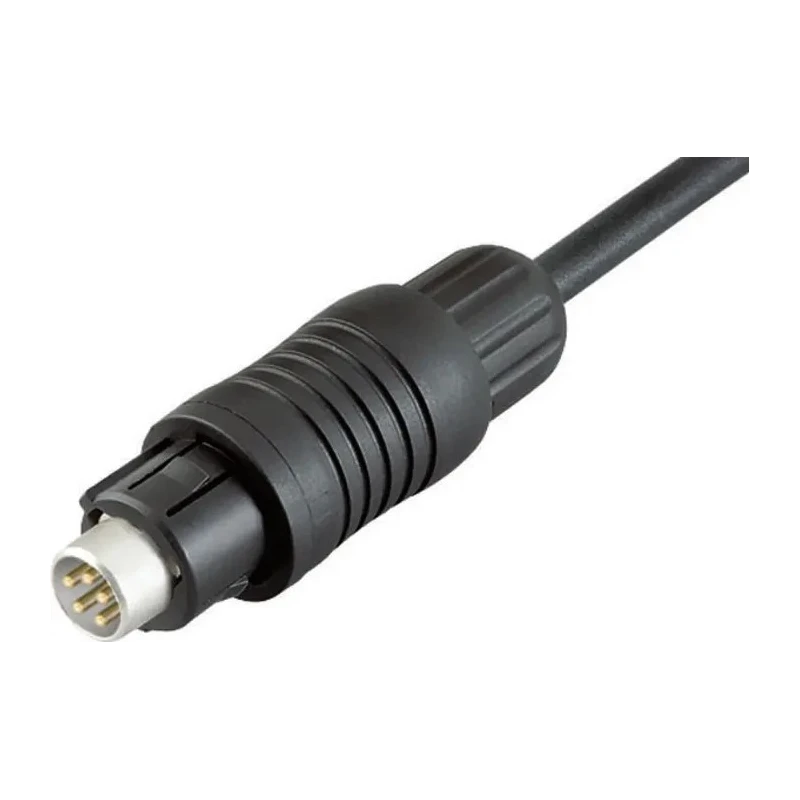

Binder Circular Connector, 8 Contacts, Cable Mount, Subminiature, Plug Male, IP67, 430 Series 99-4929-00-08

Free Delivery in India | Lowest Global Shipping Charges

Binder Circular Connector, 8 Contacts, Cable Mount, Subminiature, Plug Male, IP67, 430 Series 99-4929-00-08

Name: Binder Circular Connector, 8 Contacts, Cable Mount, Subminiature, Plug Male, IP67, 430 Series 99-4929-00-08
Brand: binder
SKU: 216889
Price: 38.42 USD
Availability: InStock



Category Industrial Circular Connector Brand binder Condition New

Specifications

Country of Origin	Germany
Voltage	125V
Brand	Binder
Orientation	Straight
Current	1A
IP Rating	IP67
Mount Type	Cable
Housing Material	Metal
Contact Material	Brass
Series	430
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
Contact Plating	Gold
Number of Contacts	8
Contact Gender	Male
Shell Size	10.6 mm
Mating Type	Push Pull
Connector Size	Subminiature
Plug/Socket	Plug

Key Features

This circular connector features 8 gold-plated brass contacts for reliable electrical connections.
The plug is designed for cable mounting with solder termination.
It has a subminiature shell size of 10.6 mm and operates up to 125 V and 1 Amp current.
Rated IP67 for protection against dust and immersion in water.
Operates reliably in temperatures from -25°C up to 85°C.
Push-pull mating type with straight orientation for easy connection and disconnection.
The durable metal housing ensures mechanical robustness and longevity.
Designed for industrial and electronic applications requiring compact, secure connectors.

Product Description

Binder 99-4929-00-08 circular connector is a high-quality industrial connector designed for secure and reliable cable connections. Featuring 8 gold-plated brass contacts, this subminiature plug provides exceptional conductivity and corrosion resistance. The metal housing and IP67 rating ensure excellent protection against environmental factors such as dust and water ingress.

With a shell size of 10.6 mm, this cable-mount connector supports a voltage rating of 125 V and a current rating of 1 Amp. Its push-pull mating mechanism facilitates quick and secure connections in demanding industrial, electronic components, power, and connector applications. It is suitable for operations within a temperature range from -25°C to 85°C, making it ideal for use in harsh environments.

The solder termination type offers ease of assembly and reliable contact retention, while the straight orientation allows for flexible cable routing and installation. The male contact gender identifies this component as a plug designed to mate with compatible female connectors in the Binder 430 Series.

This circular connector is manufactured in Germany, ensuring high production standards and quality control. It is widely used in industrial circular connector applications, electronics manufacturing, automation controls, and other settings requiring compact, robust, and environmentally sealed connectors.

8 gold-plated brass contacts provide reliable electrical performance. Metal housing offers robust mechanical protection. IP67 rating ensures resistance to dust and water ingress. Push-pull mating type allows quick connection/disconnection.

Subminiature size with 10.6 mm shell diameter. Operating temperature range from -25°C to 85°C. Cable mounting with solder termination for strong contact bonds. Ideal for industrial, electronic, and power connector applications.
