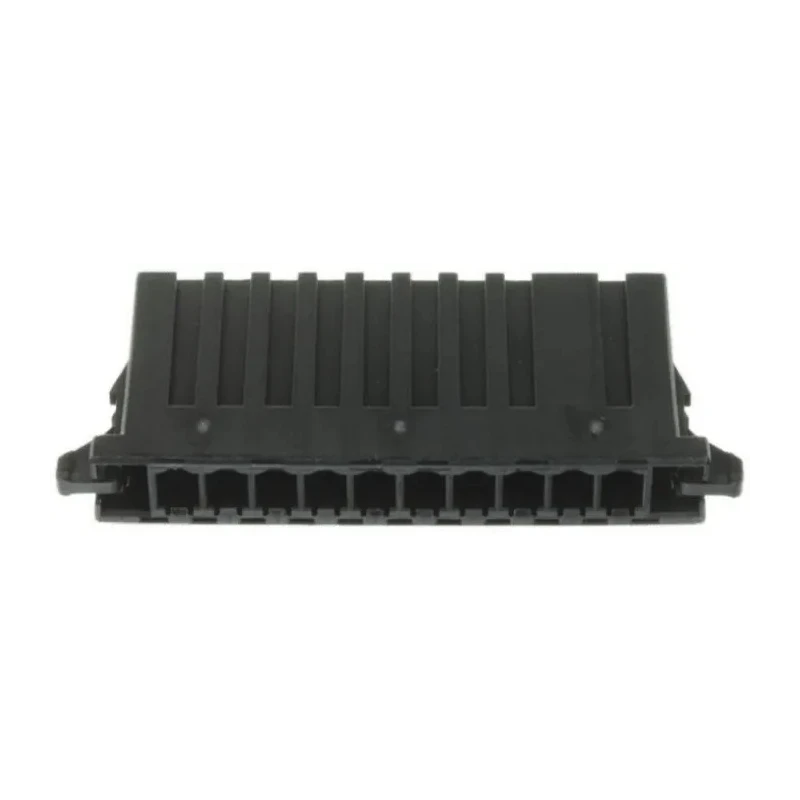

TE Connectivity Dynamic 3000 Female Connector Housing 10 Way 2 Row Straight 5.08 mm Pitch 1-917659-5
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Orientation | Straight |
| Length | 37.46mm |
| Width | 14.77mm |
| Mount Type | Cable |
| Housing Material | Polyethylene Terephthalate |
| Series | Dynamic 3000 |
| Interfaces | lances for secure contact retention |
| Number of Rows | 2 |
| Pitch | 5.08mm |
| For Use With | Wire-to-Board Connector |
| Number of Contacts | 10 |
| Connector Gender | Female |
Key Features
- Compact and vibration resistant housing for reliable high-voltage connections.
- Includes locking lances to secure contacts firmly in place.
- Features keying ribs to prevent mismating and movement during use.
- Locking levers provide secure mating connection with audible click confirmation.
- Suitable for signal and power circuits with capability of 15A per contact.
- Made from durable polyethylene terephthalate material.
- Designed for wire-to-board connector applications requiring female cable mount.
- Ensures visual confirmation of fitting via confirmation line on housing.
Product Description
TE Connectivity 1-917659-5 Dynamic 3000 Female Connector Housing is a 10 contact, 2 row straight connector designed with a 5.08 mm pitch for cable mount applications. Constructed from polyethylene terephthalate, this housing provides a compact and vibration resistant design ideal for both signal and power circuit uses.
The housing incorporates locking lances that securely retain contacts and prevent damage during mating. Keying ribs prevent mismating and hold the housings firmly together to avoid twisting or movement. Locking levers on either side provide reliable mating assurance, producing an audible click when properly engaged.
Measuring 37.46 mm in length and 14.77 mm in width, it suits wire-to-board connector designs requiring female cable mount orientation. The fitting confirmation line provides an additional visual check for secure connection.
Dynamic 3000 series connectors support current loads up to 15A per contact, making them suitable for high-voltage tab and receptacle applications with reliable locking features. This product is part of TE Connectivity's extensive Dynamic D-3200 series lineup, designed for durable and secure electrical connections.
Compact, vibration resistant design ensures durable service. Locking lances ensure robust contact retention. Keying ribs eliminate mismating risk and movement. Locking levers give secure mating with audible confirmation.
Visual fitting confirmation line enhances assembly reliability. Female cable mount orientation for wire-to-board use. Constructed of high-quality polyethylene terephthalate material. Supports 10 contacts arranged in 2 rows.
Connector pitch measures 5.08 mm for standard PCB spacing. Compatible with Dynamic 3000 series headers and contacts (sold separately). This Connector Housing is ideal for industrial, electronic, power distribution, manufacturing, and commercial electrical assemblies requiring secure, high-current connections.
Explore more connectors and electrical components from TE Connectivity and similar brands in EnvMart's Electronics & Electricals category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of the TE Connectivity Dynamic 3000 Female Connector Housing is 5.08 mm.
This model supports 10 contacts arranged in 2 rows.
The orientation of this connector housing is straight, designed for cable mount applications.
It is constructed from polyethylene terephthalate material.
This connector housing supports current loads up to 15A per contact.
The dimensions of the housing are 37.46 mm in length and 14.77 mm in width.
The housing incorporates keying ribs that prevent mismating and hold the housings firmly together.
Yes, it features a confirmation line on the housing for visual fitting confirmation.
It is suitable for wire-to-board connector applications requiring female cable mount orientation.
It includes locking lances that securely retain contacts and prevent damage during mating.
This connector housing is part of the Dynamic 3000 series from TE Connectivity.
The country of origin for this connector housing is India.
