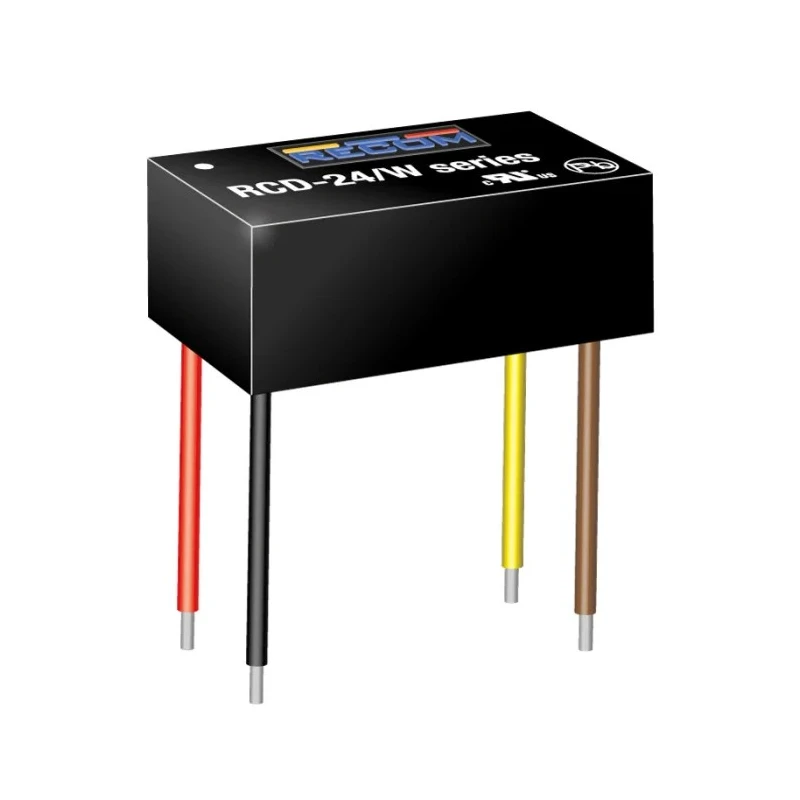

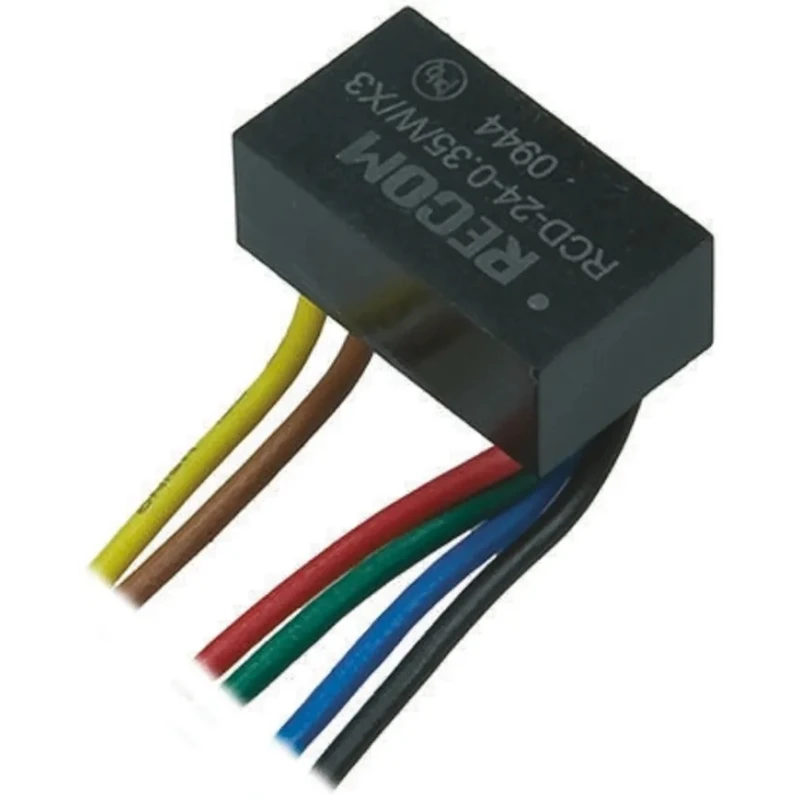

Recom IP67 Rated Single Output LED Driver 2V DC to 35V DC, 24.5W, 700mA PWM Constant Current
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | Recom |
| Model | IP67 |
| IP Rating | IP67 |
| Series | RCD-24 |
| Configuration | Enclosed |
| Sub Type | LED Driver |
| Operating Modes | Constant Current |
| Number of outputs | 1 |
| Terminal type | Solder |
| Maximum Output Power | 24.5W |
| Input Voltage | 36V dc |
| Output Voltage | 2, 35V dc |
| Power Dissipation | 800mW |
| Standards/Approvals | UL, RoHS, EN |
| Dimming Operation | PWM |
| Primary Type | DC-DC |
| Driver Current | 700mA |
| LED Voltage | 36, 4.5V |
| Recom IP67 1 Output LED Driver, 3V dc, 31 V dc, 31 W, 1A PWM LED DriverBrand | Recom |
Key Features
- Supports input voltage of 36V DC suitable for various lighting applications.
- Provides maximum output power of 24.5W with low power dissipation of 800mW.
- Enclosed design with six flying wires for easy solder terminal connection.
- Rated IP67 for protection against dust and temporary water immersion.
- Operating temperature range from -40°C to +71°C for demanding environments.
- Designed for flicker-free dimming with PWM control in medical, entertainment, and residential lighting.
- Compact dimensions of 22.1 x 12.6 x 8.5 mm suitable for tight installation spaces.
Product Description
Recom brand RCD-24-0.70/W/X3 model LED driver is an IP67 rated, single output, constant current LED driver suitable for powering LEDs in various industrial and commercial applications. It offers a regulated output voltage range from 2V DC to 35V DC at a stable current of 700mA, delivering a maximum power output of 24.5W. This driver features pulse width modulation (PWM) dimming operation which allows smooth and flicker-free light intensity adjustment.
The compact, enclosed design uses non-conductive black plastic housing that protects the component from dust ingress and temporary water immersion up to 1 meter depth for 30 minutes, making it ideal for demanding industrial and outdoor environments. Connection is facilitated by six flying wires designed for solder terminal connections.
Operating over a wide temperature range from -40°C to +71°C, this LED driver is robust enough for applications in medical equipment, entertainment industry lighting, and residential building illumination systems. It qualifies under standards such as UL, RoHS, and EN certifications assuring quality and safety compliance.
Installation space requirements are minimal with physical dimensions measuring 22.1 mm (length) x 12.6 mm (width) x 8.5 mm (depth). Its compact size and high ingress protection make it suitable for embedded LED lighting solutions and small form factor electronic designs.
Supports a wide input voltage of 36V DC optimized for LED driver applications. Provides a steady constant current output of 700mA ensuring consistent LED brightness. PWM dimming operation ensures flicker-free lighting for sensitive applications.
IP67 rating secures against dust and temporary submersion in water. Enclosed in a robust, non-conductive black plastic housing for durability. Certified under UL, RoHS, and EN standards for reliability and compliance. Suitable for various industrial, entertainment, and residential lighting use cases.
Compact 22.1 x 12.6 x 8.5 mm size allows flexible installation in small locations. This Recom LED driver is an ideal choice for architects, circuit designers, and engineers seeking reliable, dimmable LED driving solutions in harsh environments.
Explore further LED Lighting Components and LED Drivers in the EnvMart catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output power of this LED driver is 24.5W.
It supports an input voltage of up to 36V DC.
The output voltage range is from 2V DC to 35V DC.
This model provides a constant current output of 700mA.
It features PWM dimming operation for flicker-free light intensity adjustment.
The dimensions are 22.1 mm in length, 12.6 mm in width, and 8.5 mm in depth.
It operates over a temperature range from -40°C to +71°C.
Connection is facilitated by six flying wires designed for solder terminal connections.
It complies with UL, RoHS, and EN standards for quality and safety.
This model is suitable for various applications including medical equipment, entertainment lighting, and residential illumination.
It has an enclosed design made of non-conductive black plastic housing for protection.
