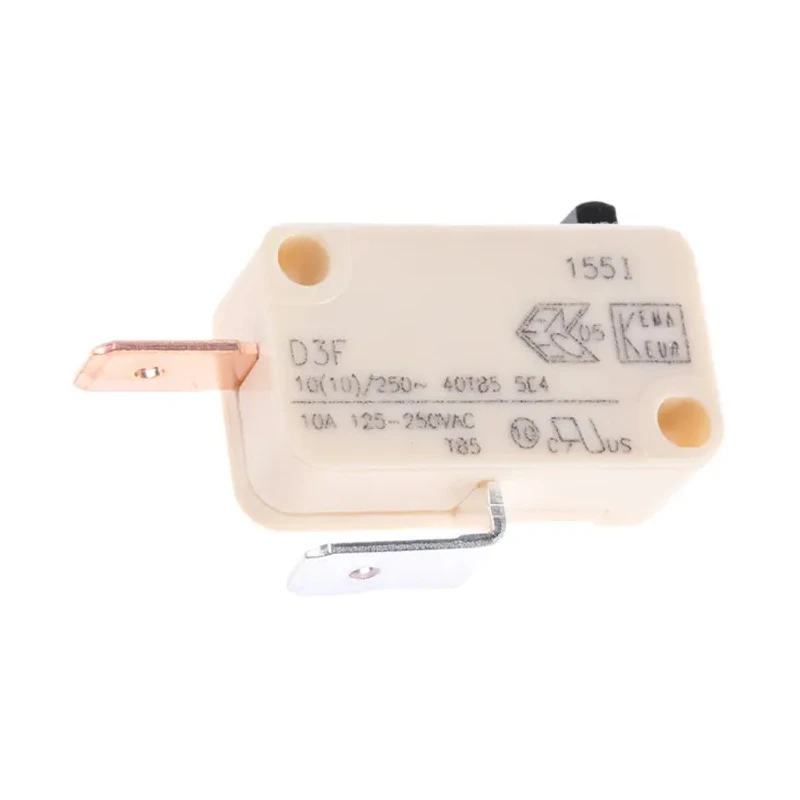

ZF Button Micro Switch with Tab Terminal, 10A Contact Current, 250V AC, SPST, IP40 D3F4-V1AA

ZF D3F4-V1AA is a miniature button micro switch designed for reliable switching performance in electrical, industrial, and automation applications. The switch supports a contact current of 10A and can withstand up to 250V AC, making it suitable for controlling moderate power circuits.

The switch features a single pole single throw (SPST) contact configuration and a durable actuator made from nylon and acetal materials, providing a precise operating force of 2.4 newtons. Its compact dimensions, measuring approximately 15.9mm in height, 10.3mm in width, and 27.81mm in depth, allow for easy integration into machinery and electronic devices requiring miniature switching elements.

With a housing made from polyethylene terephthalate combined with nylon thermoplastic, this micro switch offers good mechanical strength and insulation properties. The IP40 rating provides protection against dust and foreign objects larger than 1 millimeter, ensuring operational stability in semi-protected industrial environments.

The D3F4-V1AA model is engineered for longevity with a proven mechanical life of two million operations, suitable for high-duty cycle applications. It operates reliably within a wide temperature range from -40°C to 85°C, facilitating its use in varied environmental conditions.

This micro switch conforms to important international safety and environmental standards, including RoHS and IEC 61058-1 / UL 61058-1. It is ideal for industrial automation, HVAC controls, instrumentation, and general electrical switching tasks.

Standard 3mm internal contact gap enhances snap-action and flashover protection. Housing and actuator constructed with high-quality nylon and polyester materials. Compact miniature design enables easy incorporation into control panels and devices.

Mechanical durability rated at 2,000,000 cycles supports robust operational demands. Operating temperature range from -40°C to 85°C ensures versatility in application environments. Compliant with RoHS and UL approvals for market and safety standards.

IP40 ingress rating suitable for use in industrial and laboratory settings. Set contains 1 Pc ZF D3F4-V1AA Button Micro Switch with Tab Terminal. Explore more Micro Switch solutions at EnvMart for industrial, laboratory, and automation applications.
