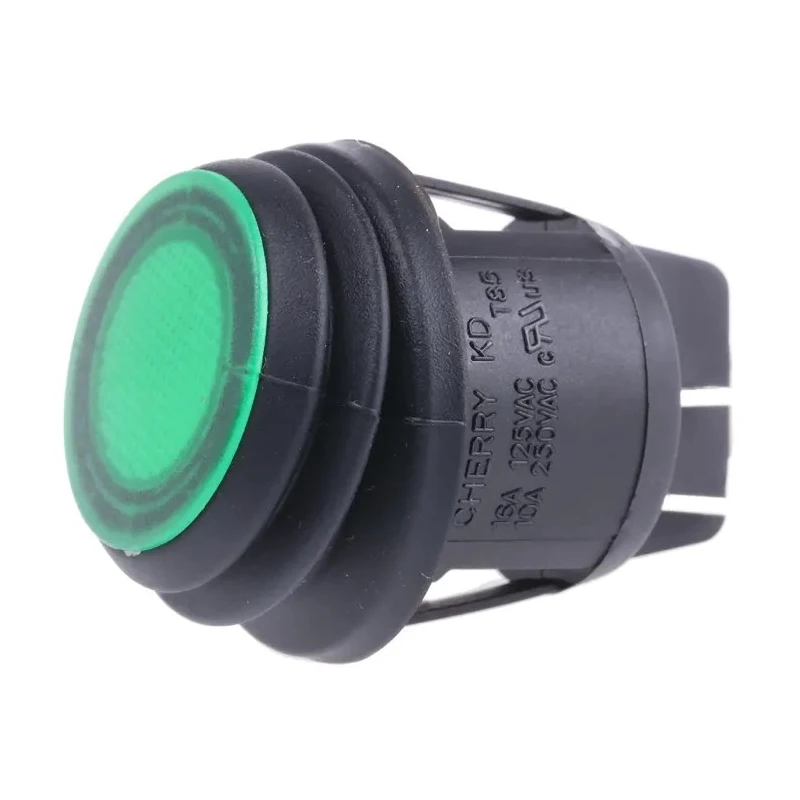

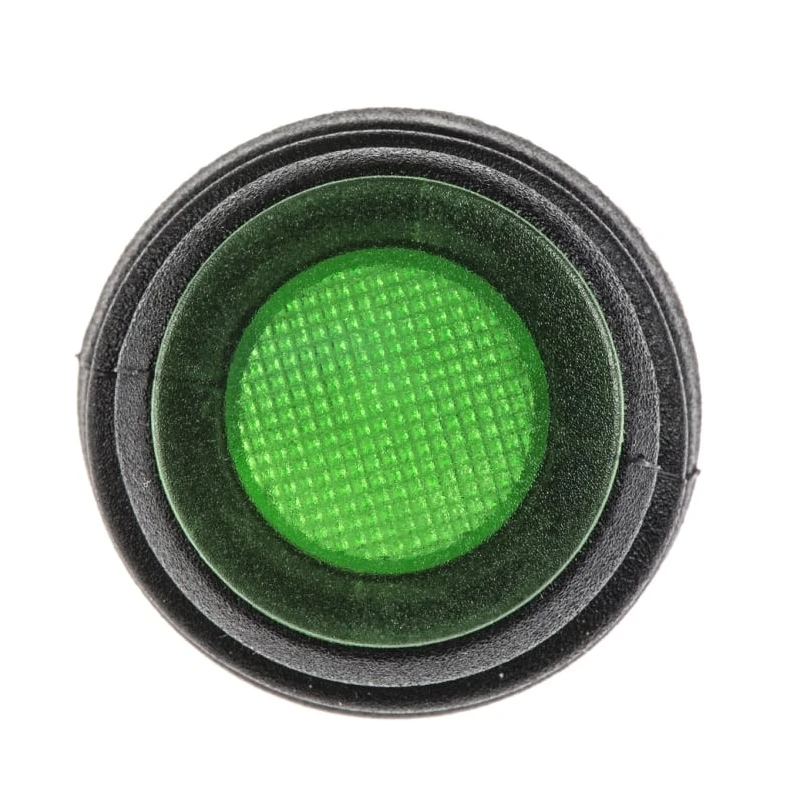

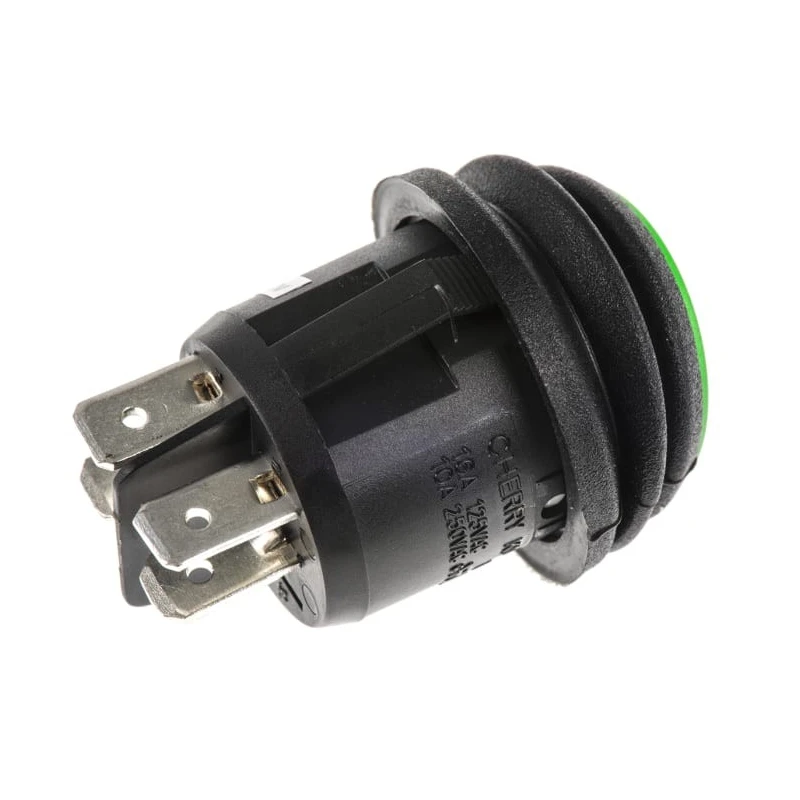

ZF Illuminated DPST On-Off On-Off Rocker Switch Panel Green Actuator Polyamide 66 Housing KDH3AEA2GBB
Specifications
| Country of Origin | China |
|---|---|
| Brand | ZF |
| Model | KDH3AEA2GBB |
| IP Rating | IP56 |
| Mount Type | Panel |
| Housing Material | Polyamide 66 |
| Series | KD |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPST |
| Switch Configuration | On-Off |
| Minimum Operating Temperature | -25°C |
| Panel Cutout Size | 20.2 mm |
| Terminal type | Quick Connect |
| Standards/Approvals | UL, VDE |
| Switch Operation | On-Off |
| Actuator Colour | Green |
| Contact DC Voltage | 28V dc |
| Actuator Style | Round |
| Switch Contact Current | 16A |
| Mechanical Life | 100000Operations |
| Legend | Blank |
| DC electrical life | 6,000 cycles |
| ZF Illuminated DPST, On-Off On-Off Rocker Switch PanelBrand | ZF |
Key Features
- Rated for 16A switch contact current ensuring reliable circuit control.
- Panel cutout diameter is 20.2 mm designed for easy panel mounting.
- IP56 rated housing offers protection against dust and water ingress.
- Mechanical life expectancy of 100,000 operations guarantees long-term durability.
- Quick connect terminal type facilitates fast and secure wiring installation.
- Operating temperature range from -25°C to 85°C suits diverse environments.
- Illuminated switch with green round actuator for clear operational status indication.
- Compliant with UL and VDE standards ensuring quality and safety certifications.
Product Description
ZF KDH3AEA2GBB is an illuminated double pole single throw (DPST) On-Off On-Off rocker switch featuring a green round actuator and durable polyamide 66 housing. This panel mount switch is designed to fit panel cutouts of 20.2 mm diameter, providing a waterproof IP56 rating for protection against dust and water ingress, suitable for demanding industrial and electrical applications.
The switch supports a circuit current of 16A with a contact DC voltage rating of 28V dc. It offers robust mechanical reliability with a lifespan of 100,000 mechanical cycles and 6,000 DC electrical cycles, ensuring consistent switching performance even under frequent use. The quick connect terminal type allows for easy and efficient installation in electrical panels or control assemblies.
Operating across a temperature range from -25°C to 85°C, this rocker switch is ideal for industrial, automation, electrical panel, and manufacturing environments requiring high durability and operational reliability. The green illuminated actuator provides visual feedback on the switch state, enhancing usability in control panels.
The KD series switches comply with industry standards UL and VDE, affirming their safety and quality for worldwide industrial deployment. These switches are manufactured in China, incorporating advanced materials and precise engineering to meet industrial demands.
Rated for 16A current and 28V dc contact voltage. IP56 rated construction for environmental protection. 100,000 mechanical operations ensure extended durability. Green illuminated actuator for clear status indication. Quick connect terminals for secure and fast wiring.
Operates from -25°C to 85°C temperature range. Designed for panel mounting with 20.2 mm cutout. Compliant with UL and VDE certifications. Part of the KD series IP56 waterproof rocker switches.
This ZF illuminated Rocker Switch is suitable for electrical panels, industrial automation systems, HVAC controls, machinery, and other applications requiring reliable switching solutions. Explore more high-quality switches and electrical products in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is rated for a switch contact current of 16A, ensuring reliable circuit control.
The switch has an IP56 rating, providing protection against dust and water ingress.
It operates within a temperature range of -25°C to 85°C, making it suitable for diverse environments.
The required panel cutout diameter for this rocker switch is 20.2 mm, designed for easy panel mounting.
It features quick connect terminals, facilitating fast and secure wiring installation.
This model has a mechanical life expectancy of 100,000 operations, ensuring long-term reliability.
It complies with UL and VDE standards, ensuring quality and safety certifications.
The contact DC voltage rating for this rocker switch is 28V dc.
The actuator style is round, and its color is green, providing clear operational status indication.
This rocker switch has an electrical life of 6,000 DC cycles.
It is suitable for electrical panels, industrial automation systems, HVAC controls, and machinery applications.
