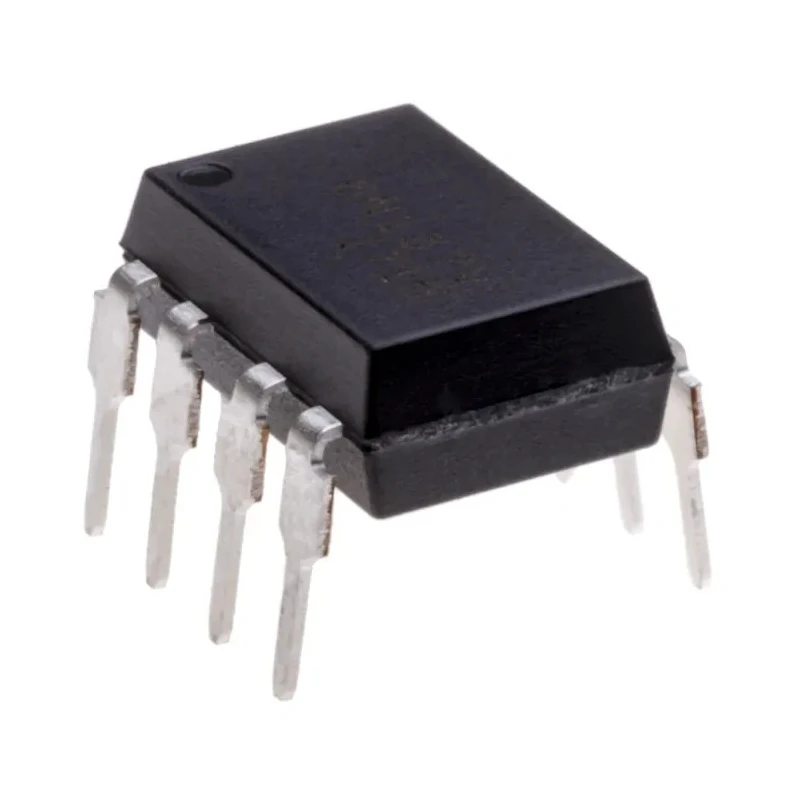

Isocom DC Input Optocoupler Through Hole 8-Pin DIP 1 Channel 1A 6N138

Isocom 6N138 DC Input Optocoupler is a precision electronic component primarily used to provide galvanic isolation between different circuit sections. It features an infrared emitting diode paired with a high gain photon detector in an 8-pin DIP through hole package.

This optocoupler delivers exceptional electrical insulation withstanding 3000V DC and offers robust common mode transient immunity rated at 500 V/μS. The high current transfer ratio of minimum 300% ensures efficient signal transmission while maintaining isolation integrity.

The device's separate pins for the photodiode and output stage enable TTL compatible saturation voltages, facilitating high-speed digital interfacing. Its wide operating temperature range from -55°C to 85°C makes it suitable for various industrial, automotive, and consumer electronics applications.

The design permits tying VCC and VO terminals together to achieve conventional photodarlington operation, while the base access terminal allows gain bandwidth adjustment, optimizing performance for specific circuit needs.

With a maximum input current of 1A and low input current requirements, the 6N138 is ideal for isolation in data communication, signal coupling, microprocessor systems, and industrial control applications where safety, noise immunity, and signal integrity are critical.

Provides 3000V DC electrical isolation and high noise immunity. Through hole 8-Pin DIP package for easy PCB mounting. High current transfer ratio enabling efficient signal coupling. Wide operating temperature range suitable for harsh environments.

Compatible with TTL output logic levels for digital circuits.

Isocom 6N138 offers reliable performance in electrical isolation needs within industrial, electronics manufacturing, telecommunication, and automation control environments. Its proven design, UL standard compliance, and consistent quality assure long-term durability.
