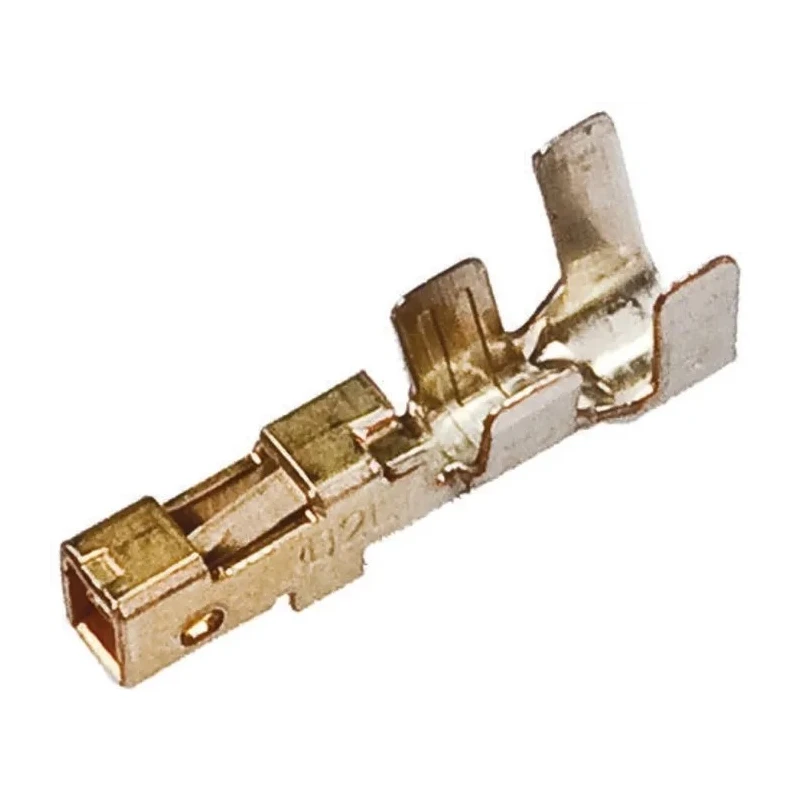

TE Connectivity Dynamic 1000 Series Female Crimp Terminal, 3A, 28 AWG Min, 22 AWG Max, Gold Plated, Crimp 1827570-2

TE Connectivity 1827570-2 Dynamic 1000 Series Female Crimp Terminal delivers high performance and durability in electronic connector applications. This product is engineered for use with Dynamic 1000 connector housings, supporting I/O signal and power circuits in industrial automation and computing devices.

The crimp terminal uses a copper alloy base with gold plated contacts to ensure excellent electrical conductivity and resistance to corrosion. Its unique box shape design improves mechanical strength, resisting twisting and damage to the contact beam. With three contact points, it assures a secure electrical connection minimizing contact resistance to a maximum of 20 milliohms.

Operating seamlessly at currents up to 3 amps, this terminal can be crimped to wires sized from 28 AWG up to 22 AWG, providing flexibility for various wiring requirements. The low insertion force eases assembly and disassembly, saving time during maintenance.

Temperature tolerance from -55°C to 105°C makes it suitable for demanding industrial environments, including automation systems, servo motors, inverters, and switching power supplies. The compact 13.3 mm length supports integration into space-limited designs.

This crimp terminal series does not carry specific approvals but is manufactured in China under TE Connectivity’s quality standards. Its design ensures reliable long-term electrical performance and mechanical durability.

Supports current rating of 3A ensuring effective power transmission. Compatible with wire sizes ranging from 28 AWG minimum to 22 AWG maximum. Constructed from copper alloy with gold plated contacts for enhanced conductivity and corrosion resistance.

Features a box shape design to prevent contact beam damage and ensures twist resistance. Operating temperature range from -55°C to 105°C suitable for diverse environments. Low insertion force for ease of mating and unmating with Dynamic 1000 Connector Housing.

Three points of contact offer high electrical reliability and robust contact spring. Length of the crimp terminal is 13.3 mm for compact installation. Designed for use in factory automation, servo drives, inverters, computers, and power control boards.
