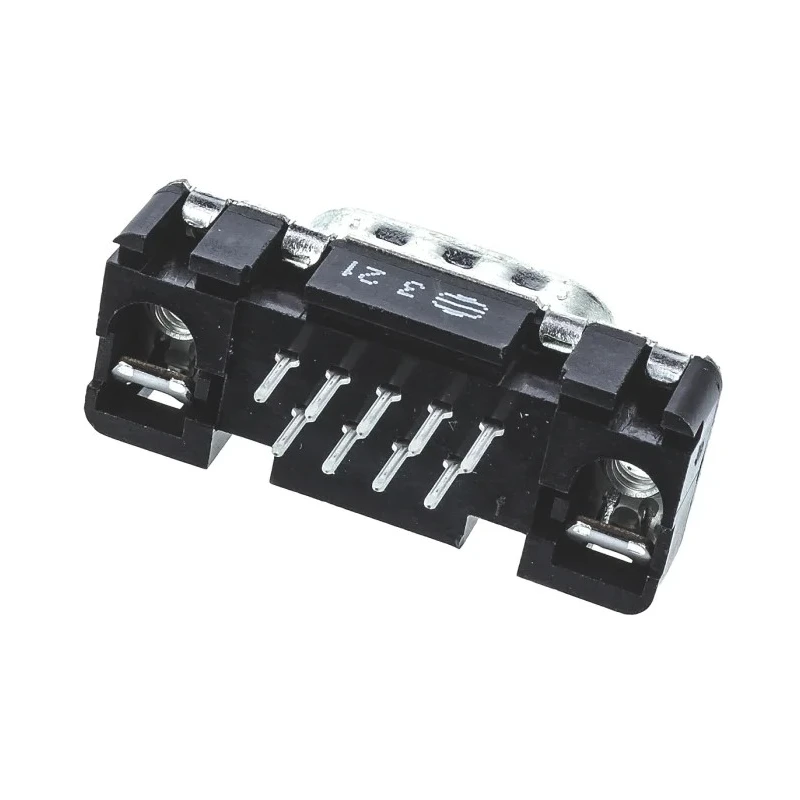

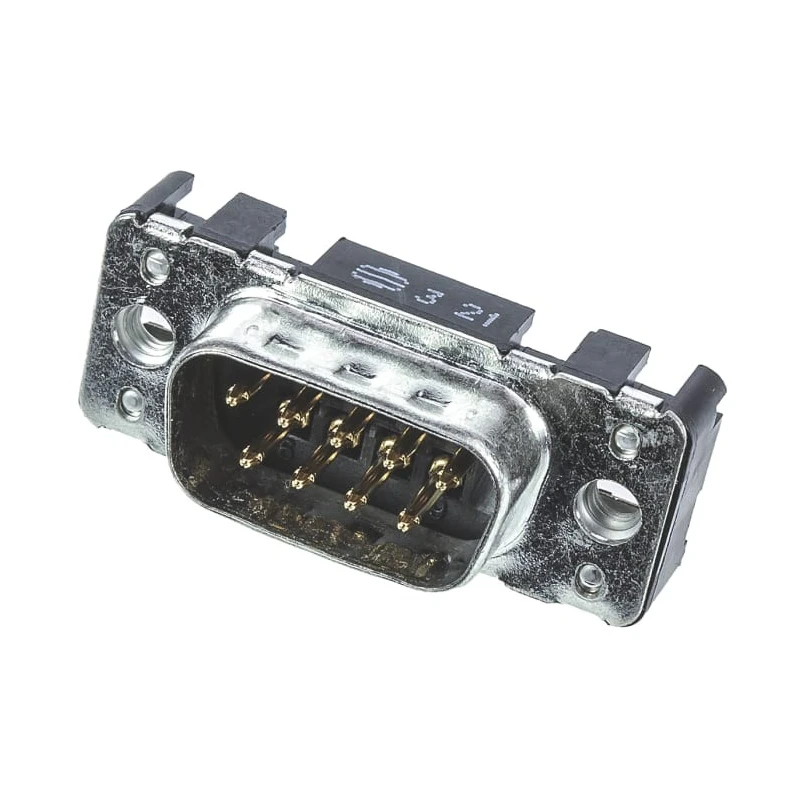

HARTING D-Sub 9 Way Straight 2.74 mm Pitch Through Hole D-Sub Connector with M3 Threaded Insert Male 09651217701
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 1kV |
| Brand | HARTING |
| Orientation | Straight |
| Current | 7.5A |
| Mount Type | Through Hole |
| Housing Material | Steel |
| Contact Material | Copper Alloy |
| Series | D-Sub |
| Mounting Hardware | M3 Threaded Insert |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Pitch | 2.74mm |
| Contact Plating | Gold |
| Number of Contacts | 9 |
| Contact Gender | Male |
| Connector Gender | Male |
| Connector Type D | Standard |
| D-Sub Shell Size | D |
Key Features
- This D-Sub connector features a straight orientation suitable for through-hole mounting on PCBs.
- It provides 9 contact points with gold-plated copper alloy contacts ensuring reliable electrical connectivity.
- The connector supports operating voltages up to 1 kV and currents up to 7.5 A.
- Constructed with a robust steel housing and a D-type shell size for durability in industrial applications.
- Designed for solder termination with M3 threaded inserts for secure mounting.
- It operates reliably within a temperature range from -55°C to 125°C.
- Ideal for electronic, industrial, and power connector applications requiring a compact, reliable connection.
- Manufactured in Germany ensuring high-quality standards.
Product Description
HARTING 09651217701 D-Sub Connector is a 9 Way Straight type connector designed for PCB through-hole mounting applications requiring reliable and durable connections. Featuring a fine 2.74 mm pitch, this connector offers precise and stable electrical contact.
Its male connectors utilize copper alloy contacts plated with gold for enhanced conductivity and corrosion resistance, supporting up to 7.5A current and 1 kV voltage ratings. The steel housing and D-size shell provide mechanical strength suitable for demanding industrial environments.
The connector's solder termination type and M3 threaded insert mounting hardware ensure a secure fit and ease of assembly on printed circuit boards. It withstands operating temperatures ranging from -55°C to 125°C, suitable for harsh or variable ambient conditions.
This product is designed in compliance with standards such as MIL-C-24308, DIN 41652, and CECC 75301-802 for assured performance quality and compatibility. This D-Sub Connector features a straight orientation suitable for through-hole mounting on PCBs.
It provides 9 contact points with gold-plated copper alloy contacts ensuring reliable electrical connectivity. The connector supports operating voltages up to 1 kV and currents up to 7.5 A. Constructed with a robust steel housing and a D-type shell size for durability in industrial applications.
Designed for solder termination with M3 threaded inserts for secure mounting. It operates reliably within a temperature range from -55°C to 125°C. Ideal for electronic, industrial, and power connector applications requiring a compact, reliable connection.
Manufactured in Germany ensuring high-quality standards.
This connector finds applications in electronics manufacturing, industrial control systems, power distribution units, and precision instrument assembly requiring robust, high-performance connections.
Explore more high-quality connectors and electronic components to suit various industrial and electronics assembly needs here at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This D-Sub connector supports operating voltages up to 1 kV.
It can handle currents up to 7.5 A.
The pitch size of the contacts is 2.74 mm.
This connector is designed for through-hole mounting on PCBs.
It features a steel housing and copper alloy contacts plated with gold.
It operates reliably within a temperature range from -55°C to 125°C.
This model provides 9 contact points.
It uses solder termination for secure connections.
The connector features male contacts.
It includes M3 threaded inserts for secure mounting.
It is designed in compliance with standards such as MIL-C-24308, DIN 41652, and CECC 75301-802.
This connector is manufactured in Germany, ensuring high-quality standards.
