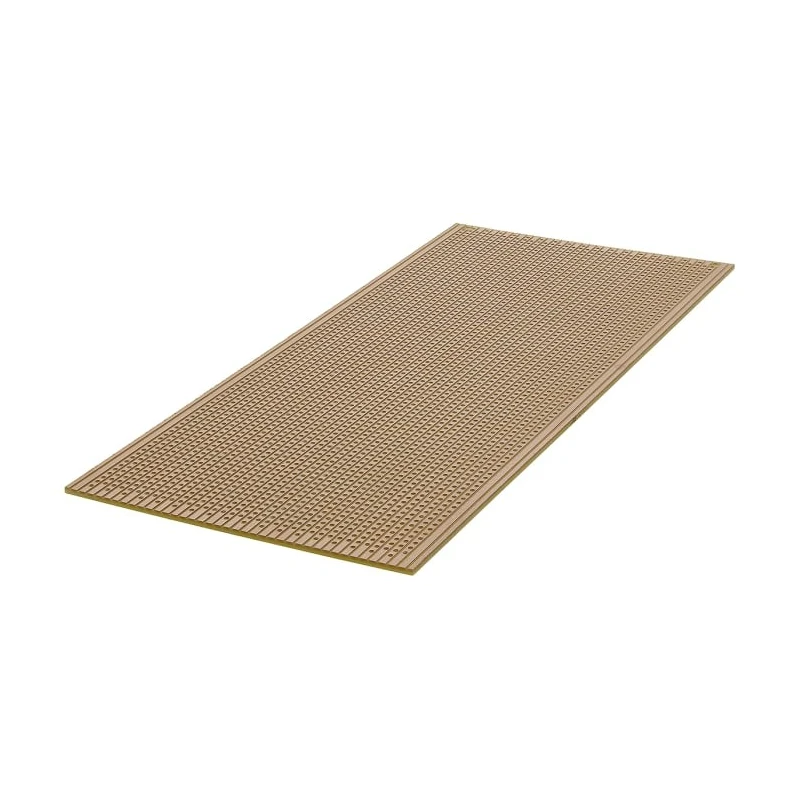

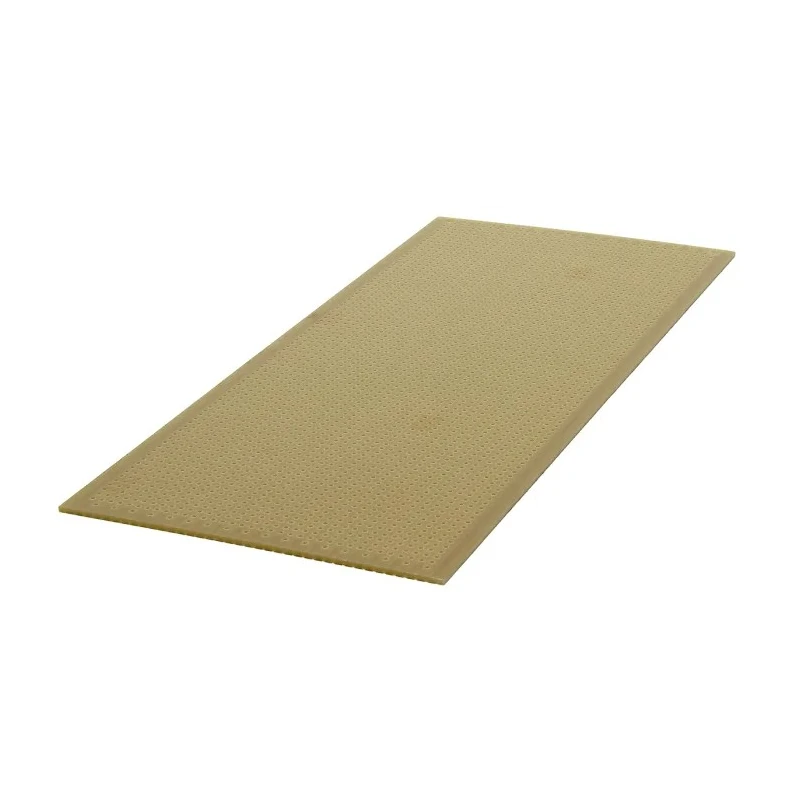

RS PRO Single-Sided Matrix Board FR2 Synthetic Resin Bonded Paper 1.02 mm Holes 220 x 100 mm 159-6322

RS PRO 159-6322 Matrix Board is a single-sided prototype matrix board constructed from FR2 grade synthetic resin bonded paper, measuring 220 x 100 mm. It features 1.02 mm diameter holes on a 2.54 x 2.54 mm pitch and a copper thickness of 35 µm, designed for reliable electrical conductivity during prototyping.

This matrix board complies with DIN 41494 and DIN 41612 standards, which define mechanical and electrical practices for 19-inch rack-based systems. It is ideally suited for building prototype PCBs and securely wiring discrete components in electronic devices such as amplifiers and other high-current products.

Its FR2 material grade offers flame retardant properties essential in industrial and laboratory environments. The single-sided format facilitates straightforward wiring of common bus or signal lines, enabling accessible circuit layouts that can later be transferred to standard PCBs.

The board's compatibility with Microbus backplane connectors allows seamless integration with custom rack-mounted systems. Manufactured in the United Kingdom, this product maintains high standards of quality and durability.

The board is constructed with a high-quality synthetic resin bonded paper base. It features a copper thickness of 35 µm and compliance with relevant DIN standards. Its precise 1.02 mm hole diameter with 2.54 mm spacing accommodates a wide range of electronic components.

The FR2 flame retardant material enhances safety in demanding electrical applications. Single-sided design is optimal for prototyping and layout testing. Suitable for industrial, laboratory, electronic prototyping, and educational uses.
