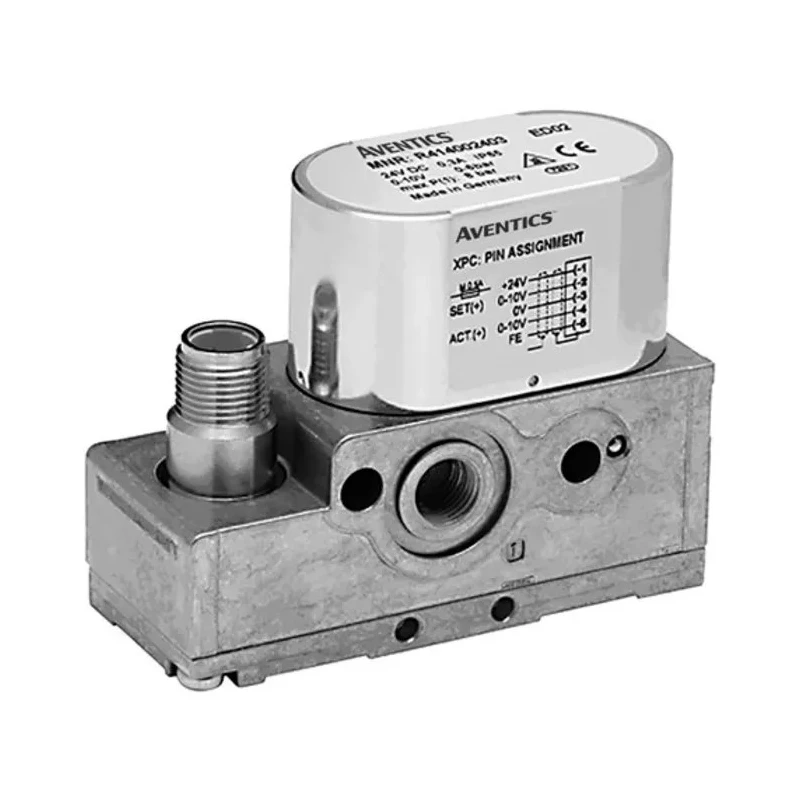

EMERSON ? AVENTICS EMERSON AVENTICS Pneumatic Solenoid Valve 3/3 Solenoid G 1/8 Manifold Mount 24V DC ED02

EMERSON AVENTICS ED02 Pneumatic Solenoid Valve is a 3/3 port valve featuring a G 1/8 inch connection thread, designed for manifold mounting and powered by a 24V DC solenoid. This valve is ideal for industrial pneumatic applications requiring precise flow and pressure control.

The valve body is made of aluminium combined with chromated steel, ensuring robust construction and resistance to corrosion. Its rubber seals contribute to a reliable and leak-free operation. The valve is designed to operate under pressures up to 7 bar and offers a maximum flow rate of 100 liters per minute, making it suitable for medium pressure pneumatic systems.

Its operating temperature ranges from 0°C up to 70°C, while requiring a minimum pilot pressure of 6 bar. The electrical connection is facilitated through a 5 pin M12 plug, supporting analogue control inputs between 0V and 10V or 4mA to 20mA, enabling fine control of pneumatic flows.

The valve's 3/3 function provides streamlined flow management for pneumatic circuits, and it is compatible with oil-free, dry air (0-1 mg/m3 max.) filtered to 50 microns for optimal performance. It complies with RoHS standards reflecting environmental and safety compliance.

Perfectly engineered in Germany, this valve meets demanding industrial, manufacturing, and fluid power applications. It is widely used in automation, HVAC, machinery, and other pneumatic system assemblies requiring dependable solenoid valve performance.

The valve has a 1/8 inch port size with G 1/8 connection thread standard. Operates on 24V DC voltage with solenoid actuation type for efficient control. The valve body is constructed from aluminium and chromated steel for durability.

It supports a maximum operating pressure of 7 bar and maximum flow rate of 100 L/min. Designed to operate at temperatures from 0°C to 70°C and pilot pressure minimum 6 bar. Features a rubber seal and manifold mount type for easy installation.

Electrical connection is via a 5 pin M12 plug for secure and reliable interface. The valve function is 3/3 with analogue control range capabilities. Complies with RoHS standards and is free from hazardous area certification.

Manufactured in Germany ensuring high-quality engineering standards. Explore more Pneumatic Solenoid Valves and high-quality fluid power components available at EnvMart to support your industrial automation and machine control needs.
