Preci-Dip 8PM Series Right Angle Surface Spring Loaded Connector 5 Contacts 2.54 mm Pitch 1 Row Shrouded 8PM-11-0005-02-168

Free Delivery in India | Lowest Global Shipping Charges

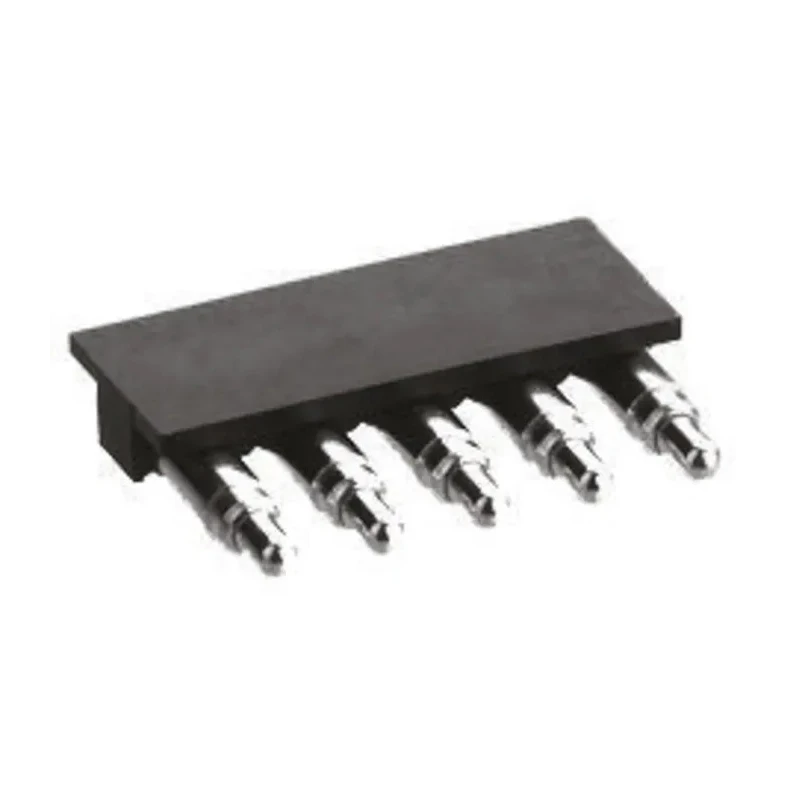

Preci-Dip 8PM Series Right Angle Surface Spring Loaded Connector 5 Contacts 2.54 mm Pitch 1 Row Shrouded 8PM-11-0005-02-168

Name: Preci-Dip 8PM Series Right Angle Surface Spring Loaded Connector 5 Contacts 2.54 mm Pitch 1 Row Shrouded 8PM-11-0005-02-168
Brand: Preci-Dip
SKU: 215603
Price: 9.15 USD
Availability: InStock



Category Connector Brand Preci-Dip Condition New

Specifications

Country of Origin	Switzerland
Voltage	150V
Brand	Preci-Dip
Orientation	Right Angle
Current	3A
Model	8PM-11-0005-02-168
Mount Type	Surface
Housing Material	Fibreglass Reinforced Polyethylene Terephthalate
Contact Material	Brass
Series	8PM
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Rows	1
Pitch	2.54mm
Contact Plating	Gold
Number of Contacts	5
Contact Gender	Male
Shrouded/Unshrouded	Shrouded

Key Features

Right angle orientation ensures optimal PCB layout.
Shrouded design protects contacts and enhances durability.
Contacts made of brass with gold plating for superior conductivity.
Housing constructed from fibreglass reinforced polyethylene terephthalate for strong insulation.
Rated for 3A current and 150V maximum voltage tolerances.
Operates reliably between -55°C and 125°C temperature range.
Designed with spring-loaded contacts to maintain low resistance even under vibration.
Manufactured in Switzerland ensuring high-quality standards.

Product Description

Preci-Dip 8PM-11-0005-02-168 is a right angle surface mount spring loaded connector with 5 contacts, providing an effective connection solution for PCB assemblies. It features a 2.54 mm pitch and a single row configuration, making it suitable for compact electronic device designs.

The connector's housing is made from fibreglass reinforced polyethylene terephthalate, offering excellent mechanical strength and electrical insulation. The brass contacts plated with gold ensure reliable signal transmission and corrosion resistance.

Its surface mount design with spring-loaded contacts allows for stable electrical connections with minimal resistance and accommodates mechanical movement or vibration. Operating temperature ranges from -55°C to 125°C make it suitable for harsh industrial and commercial applications.

The connector supports a maximum current rating of 3A and voltage of 150V, ensuring safe operation in various electronic systems. The solder termination type allows for easy and secure PCB mounting compatible with pick & place machinery.

This Preci-Dip connector is ideal for use in industrial electronics, communications equipment, automotive electronics, and instrumentation requiring durable and high-performance PCB interconnections.

Right angle orientation ensures optimal PCB layout. Shrouded design protects contacts and enhances durability. Contacts made of brass with gold plating for superior conductivity. Housing constructed from fibreglass reinforced polyethylene terephthalate for strong insulation.

Rated for 3A current and 150V maximum voltage tolerances. Operates reliably between -55°C and 125°C temperature range. Termination type: solder for secure PCB attachment. Designed with spring-loaded contacts to maintain low resistance even under vibration.

Manufactured in Switzerland ensuring high-quality standards. Explore a wide range of Connectors and PCB components with trusted brands at EnvMart to optimize your electronic design and manufacturing processes.
