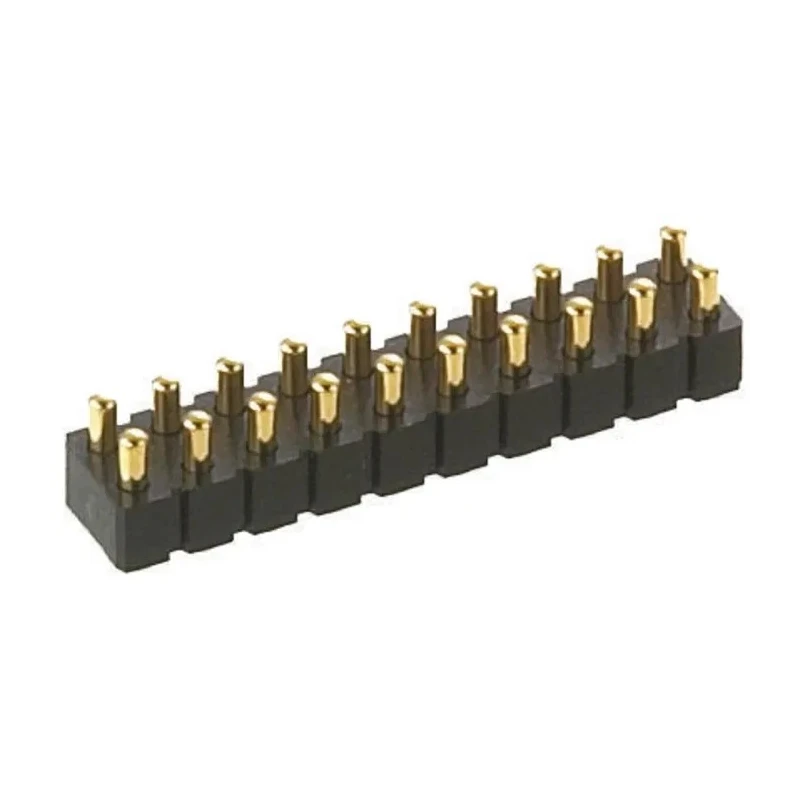

Preci-Dip 813 Series Straight Surface Spring Loaded Connector, 12 Contacts, 2.54 mm Pitch, 2 Row 813-SS-012-30-007191

Preci-Dip 813-SS-012-30-007191 is a straight surface mount spring-loaded connector featuring 12 gold-plated brass contacts arranged in 2 rows with a 2.54 mm pitch spacing. This shrouded connector utilizes robust Fibreglass Reinforced Polyethylene Terephthalate housing to provide enhanced durability and insulation.

Capable of carrying currents up to 3.5A and rated for voltages up to 150V, this connector operates reliably within a temperature range from -55°C to 125°C. The solder termination type is optimized for surface mount technology, enabling efficient assembly on printed circuit boards.

The spring-loaded contact (SLC) system ensures low, stable electrical resistance without micro-discontinuities, even under vibration or movement, ideal for industrial, electronics manufacturing, and laboratory applications requiring reliable multipoint electrical connections.

The 4 mm plastic body height and 1.4 mm plunger stroke length provide consistent mechanical performance. The shrouded design protects contacts during insertion and removal, enhancing connector longevity and safety.

This product is manufactured in Switzerland, ensuring high quality and precision. It is a practical alternative to conventional connection solutions for PCB headers and wire housings in electronics and power connector applications.

Gold-plated brass contacts provide low resistance and reliable signal integrity. Fibreglass reinforced housing delivers mechanical strength and electrical insulation. Supports surface mount applications with solder termination type.

Designed for use in environments with temperatures ranging from -55°C to 125°C. Spring-loaded contacts ensure vibration-resistant, stable electrical connections. Shrouded configuration protects the contacts and improves mating reliability.

12 contacts arranged in 2 rows with 2.54 mm pitch spacing. Current rating of 3.5A and voltage rating of 150V suitable for PCB connectors.

This connector is suitable for industrial electronics, laboratory instrumentation, manufacturing equipment, and other applications requiring durable and reliable PCB connections. Explore more high-quality PCB Connectors and related electronic components on EnvMart.
