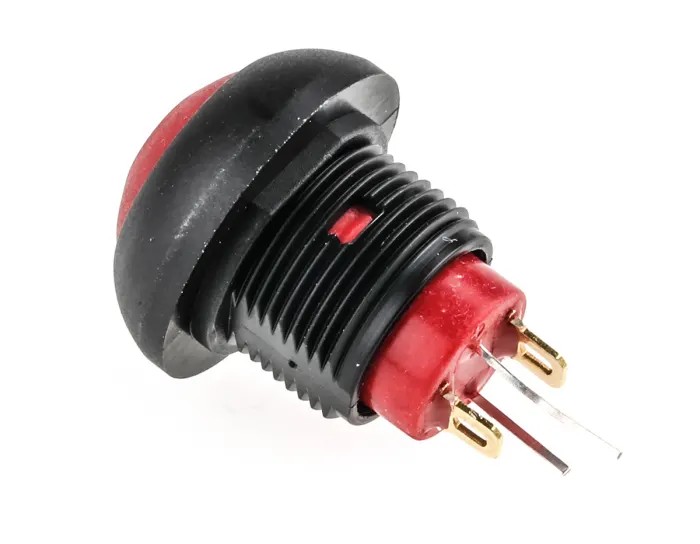

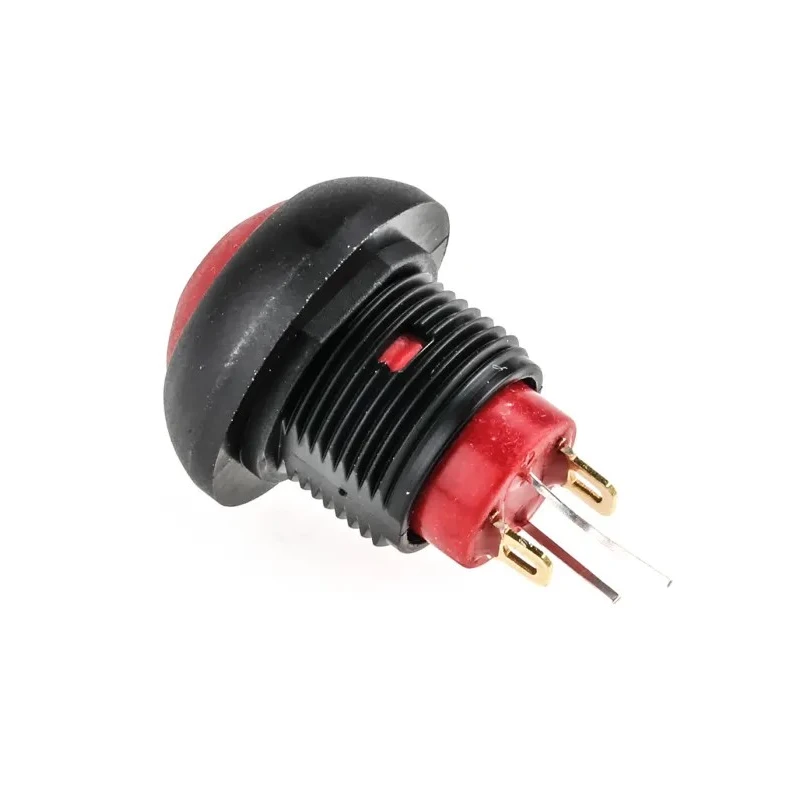

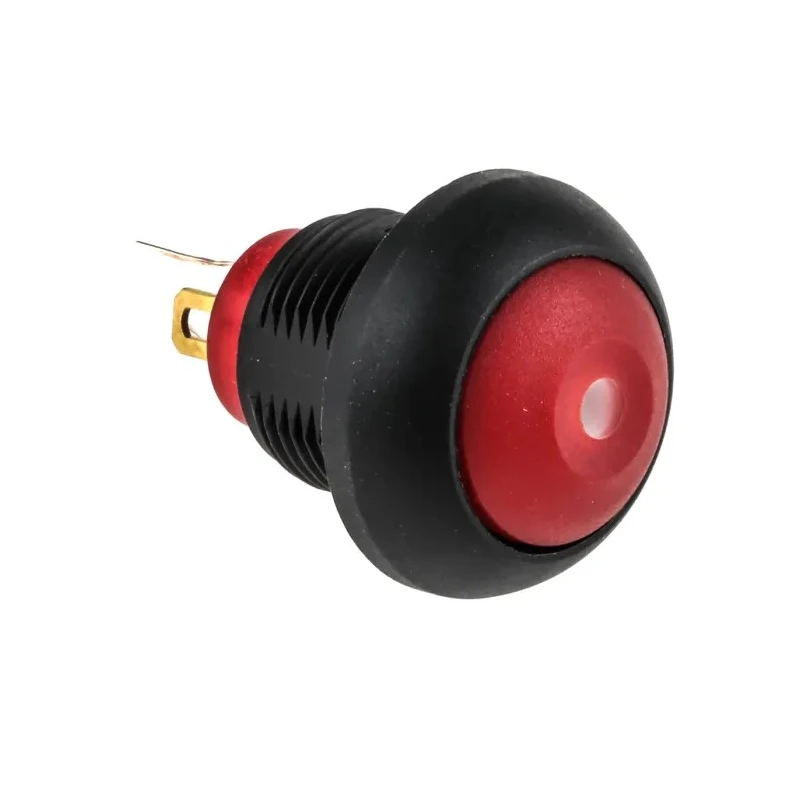

KNITTER-SWITCH Illuminated Miniature Push Button Switch, Momentary, Panel Mount, 12.9 mm Cutout, SPST, Red LED DPWL1CGRR

KNITTER-SWITCH DPWL1CGRR illuminated miniature push button switch is engineered for panel mounting applications requiring a compact unit with LED indication. This momentary switch activates on pressing and automatically returns to off position, making it suitable for control panels, automation systems, and industrial equipment.

This switch features a red actuator and LED illumination, enhancing visibility in various environments including low-light conditions. The 12.9 mm panel cutout allows easy integration into existing panel designs. The solder terminal configuration facilitates secure and reliable electrical connections.

With an IP67 ingress protection rating, the DPWL1CGRR is waterproof and dust-tight, ideal for industrial, manufacturing, laboratory, and commercial settings. It operates effectively across a broad temperature range from -30°C to 85°C, accommodating diverse environmental conditions.

The switch is rated for 250V AC and 50V DC contact voltages with a contact current rating of 400mA, supporting medium-low power control circuits. The robust thermoplastic construction guarantees durability through a mechanical life exceeding a million cycles, ensuring long-term reliability.

Compliant with UL and CSA standards, the switch meets safety and quality requirements for electrical components. The LED illumination requires a series resistor (typically 1,200 Ohms 0.5W) to limit current to approximately 20mA for optimal performance and longevity.

The switch includes a red actuator button for visual indication. It is momentary in operation, ensuring temporary contact when pressed. Designed for panel mount installation with a 12.9 mm cutout size. Single Pole Single Throw (SPST) contact configuration supports simple on-off control.

Illuminated with a red LED requiring a resistor to limit current to approximately 20mA. Robust IP67 rating offers excellent waterproof protection for harsh environments. Operates reliably between temperatures of -30°C to 85°C.

Rated for contact voltages up to 250V AC and 50V DC with 400mA contact current. Constructed with a thermoplastic case, ensuring durability and long mechanical life of over 1,000,000 cycles. UL and CSA standards approvals ensure compliance and safety.

This miniature push button switch is suitable for industrial, laboratory, automation, HVAC, manufacturing, and commercial electrical applications where a reliable and compact momentary switch with visual LED indication is required. It is ideal for use in control panels, machinery interfaces, and other electrical devices requiring panel-mounted switches with robust environmental protection.
